GFUVE GROUP smart portable CT PT analyzer is mainly used for field or lab testing, it can finish the measurements (M) and protection (P) class CT, PT and TYP class CT. Adopt 7 inch touch TFT LCD, self-equipped mini type printer supporting field printing; supporting to use USB flash disk to dump data, it can be controlled by PC programmable. The CT PT Analyzer is the most complete and easy-to-use testing system for protection and metering CTs according to IEEE C57.13 and IEC61869, IEC60044 standards. CT PT analyzer can test CT ratio error, phase error, polarity, magnetization curve, degauss, winding resistance, Burden etc.

• GF1061PORRABLE HIGH PRECISION CT PT ANALYZER WITH PRINTER



  • • CT: 1-50000/PT:1-30000
  • • High precision class 0.02
  • • 7 inch color touch TFT LCD
  • • Programmable control by PC
  • • With battery function optional
  • • IEC61869/IEC60044/IEEE C57.13

• GF106CT TEST EQUIPMENT WITH KNEE POINT



  • • With mini type printer
  • • In-built PT test function
  • • CT: 1-30000/PT:1-10000
  • • Accuracy 0.05% or 0.1%
  • • 3000groups test data logger
  • • IEC60044/IEC61869/ANSI C57.13

• GF106TPORTABLE CURRENT TRANSFORMER TESTER WITH PT TESTING



  • • PT: 1-500KV
  • • 0-1000A/0-2500V
  • • CT: 25000/5A-5000/1A
  • • Storage 3000groups data
  • • Auto test knee point voltage
  • • With PC management software

• GF1061PTPORTABLE VOLTAGE TRANSFORMER TESTER



  • • Weight 4.8KG
  • • PT phase error 1min
  • • With battery optional
  • • Testing various types of PT
  • • PT ratio: 1-15000, class 0.05
  • • Test PT quickly in one minute

• GF1061CTPORTABLE CT ANALYZER ON SITE



  • • CT burden test
  • • CT polarity test
  • • CT excitation test
  • • CT DC resistance test
  • • CT phase error test: 2'
  • • CT ratio test : 1-50000

• GF1061CVTCAPACITOR VOLTAGE TRANSFORMER TESTER ON SITE



  • • CVT burden test
  • • CVT polarity test
  • • CVT ratio error test
  • • CVT phase error test
  • • CVT DC resistance test
  • • CVT capacitance partial voltage ratio test

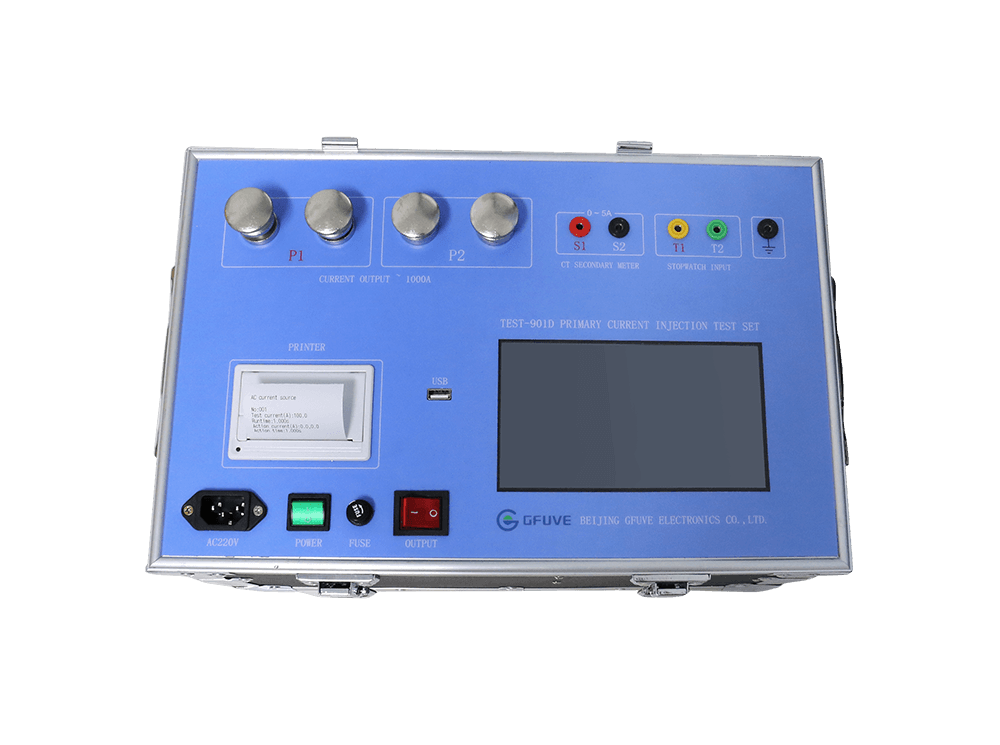

• TEST-9011000A PRIMARY CURRENT INJECTION TEST SET



  • • Load capacity 5KVA
  • • Accuracy class 0.5%
  • • Current resolution 0.1A
  • • With timer & binary input
  • • Secondary current range 0-6A
  • • Primary current range 0-1100A

• TEST-9022000A PRIMARY CURRENT INJECTION TESTER FOR PROTECTION RELAY



  • • Accuracy class 0.5%
  • • Load capacity 12KVA
  • • Current resolution 0.1A
  • • With timer & binary input
  • • Secondary current range 0-6A
  • • Primary current range 0-2200A

• TEST-9033000A ELECTRICAL PRIMARY CURRENT INJECTION TEST KIT



  • • Accuracy class 0.5%
  • • CT ratio test function
  • • Load capacity 15KVA
  • • Current resolution 0.1A
  • • With timer & binary input
  • • Primary current range 0-3300A

• TEST-9055000A PRIMARY CURRENT INJECTION TEST EQUIPMENT FOR CIRCUIT BREAKER TESTING



  • • CT ratio test function
  • • Accuracy class 0.5%
  • • Load capacity 30KVA
  • • Current resolution 0.1A
  • • With timer & binary input
  • • Primary current range 0-5500A
