GF102PORTABLE SINGLE PHASE ENERGY METER TEST BENCH

GF102 series portable single phase energy meter test bench used to test 1pc or 3pcs single phase energy meter or AC meter at same time. Adopt mature signal synthetic and power amplifier technology, high precision voltage source and current source output from 120A/600V. Widely used in lab and field, and then as single phase standard source. It is suite for electricity meter manufacturing enterprises, scientific research institutes, metrological service institutions, electric power companies etc.

Request a quote Download Catalogue video

FUNCTIONS

■ Multi load point setting output;

■ Measuring the distortion factor;

■ Testing meter installations in 1P2W;

■ Many plan auto test for energy meter error;

■ Vector representation of the measuring values;

■ Measuring frequency, phase shift and power factor;

■ Measuring mechanical meter and electric meter error;

■ Energy dosing with built-in current source and voltage source;

■ Power and energy measurements for active, reactive and apparent power;

■ Harmonic spectrum analysis for voltage and current up to the 63rd order;

■ Power factor -1.00000-0-1.00000 any setting, 1.0, 0.8L, 0.8C, 0.5L, 0.5C;

FEATURES

■ Test by automatic or manual;

■ Accuracy class 0.02/0.05/0.1;

■ 7 inch TFT touch color screen;

■ Test 3pcs meter synchronously ;

■ Start testing and creep testing ;

■ 0-120A, 0-600V,40-70Hz, 0-360.000;

■ 3 channel voltage isolation optional;

■ Recorder 1000 sets energy meter data;

■ Reference standard and power source integrated ;

■ Overload, short circuit, open circuit protection;

PARAMETERS

Electrical parameters
Accuracy class 0.02%, 0.05%, 0.1%
Power supply One Phase AC 100-265V, frequency 50/60Hz.
AC voltage output
Range 57.7V, 100V, 220V, 380V; max 600V
Adjustment range (0-120)%RG(1)
Adjustment fineness 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability 0.01%/120s
Distortion 0.1% (Non-capacitive load)
Output load 25VA or 50VA, customized
Measuring accuracy 0.02%RG or 0.05%RG
AC current output
Range 200mA, 1A, 5A, 20A, 100A; max 120A
Adjustment range (0-120)%RG
Adjustment fineness 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability <0.01%/120s
Distortion ≤0.1% (Non-capacitive load)
Output load 50VA or 100VA, customized
Accuracy 0.02%RG or 0.05%RG
Power output
Active power output stability <0.01%RG/120s
Reactive power output stability <0.02%RG/120s
Active power measuring accuracy 0.02%RG or 0.05%RG
Reactive power measuring accuracy 0.05%RG or 0.1%RG
Phase output
Output adjustment range 0°-359.999°
Output adjustment fineness 10,1, 0.1, 0.01 as optional.
Resolution 0.01°
Accuracy 0.02° or 0.05°
Power factor
Adjustment range -1 ~ 0 ~ 1
Resolution 0.0001
Measurement accuracy 0.0005
Frequency output
Adjustment range 40Hz-70Hz
Output adjustment fineness 5Hz, 1Hz, 0.1Hz, 0.01Hz as optional.
Resolution 0.001Hz
Accuracy 0.002Hz
Voltage/Current/Harmonic setting
Harmonic number 2-63times
Harmonic content 0-40%
Harmonic phase 0-359.99
Harmonic setting accuracy (10%±0.1%)RD(2)
Power energy measurement error
Active power energy 0.02%RG or 0.05%RG
Reactive power energy 0.05%RG or 0.1%RG
Power pulse output
Power pulse type Active pulse, reactive pulse
Active power pulse output 5V, 10mA
Power pulse input
Energy pulse type Support active and reactive pulse, the highest frequency power pulse input is 200K.
Standard
Standard IEC62053-21,22,23; IEC60736; ANSI C12.20-2002;
JJG 597-2005; JJG596-2012; JJG 1085-2013; JJF 68-2019;
DL/T 826-2002; DL/T 1478-2015; DL/T 448-2016
Safety
Isolation protection IEC61010-1:2001
Measurement category 300V CAT III, 600V CAT II
Degree of protection IP20
Declaration of conformity CE & CNAS certified
Functions
LCD 7 inch touch TFT color LCD
Communication port RS232 or USB
Programmable Yes
Meter position 1pc or 3pcs
PC control software Optional
Mechanical parameters
Dimensions (W×D×H)(mm) 455 × 440 × 150
Weight (kg) 12
Environmental conditions
Ambient temperature -10°C to +40°°C
Relative humidity 35%-85%
(1) RG means range, the same as below;
(2) RD means the setted harmonic content, harmonic can be a single output, also multiple output.

SELECTION GUIDE

NO. Accuracy Voltage range Current Range Weight
102D12001 0.1% 0-600V 0-120A 12KG
102D120005 0.05% 0-600V 0-120A 12KG
102D120002 0.02% 0-600V 0-120A 12KG
102D5001 0.10% 0-600V 0-60A 12KG
102D50005 0.1% 0-600V 0-60A 12KG
102D50002 0.02% 0-600V 0-60A 12KG
102D2401 0.1% 0-500V 0-24A 11.5KG
102D24005 0.05% 0-500V 0-24A 11.5KG
102D24002 0.02% 0-500V 0-24A 11.5KG
102D1201 0.10% 0-500V 0-12A 10.5KG
102D12005 0.1% 0-500V 0-12A 10.5KG
102D12002 0.02% 0-500V 0-12A 10.5KG
102D601 0.1% 0-380V 0-6A 8KG
102D6005 0.05% 0-380V 0-6A 8KG
102D6002 0.02% 0-380V 0-6A 8KG

PACKING LIST

Item Name QTY
1 GF102 machine 1PC
2 Scanning head 1PC
3 Energy pulse cable(input) 1PC
4 Energy pulse cable(output) 1PC
5 Voltage test cable 2PCS
6 Current test cable 100A (Optional) 2PCS
7 Current test cable 20A 2PCS
8 RS232 communication cable 1PC
9 Opreration Manual 1PC
10 Factory test certificate 1PC
11 Portable box 1PC
12 PC automatic testing software(Optional) 1PC
13 Hanging energy meter rack(1 or 3 positions Optional) 1PC

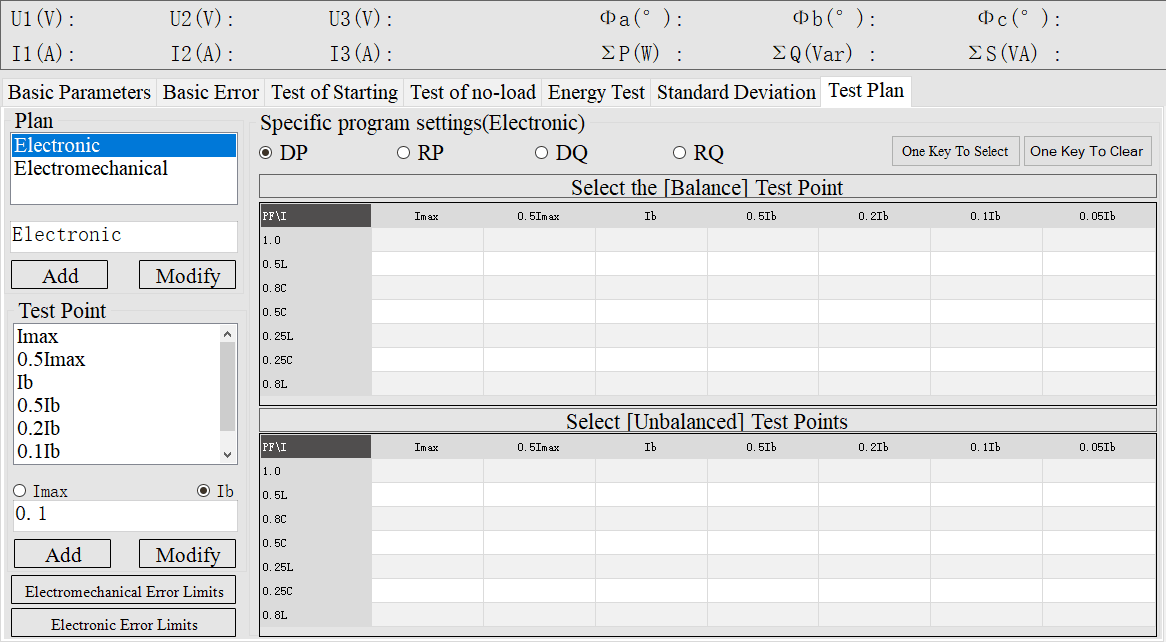

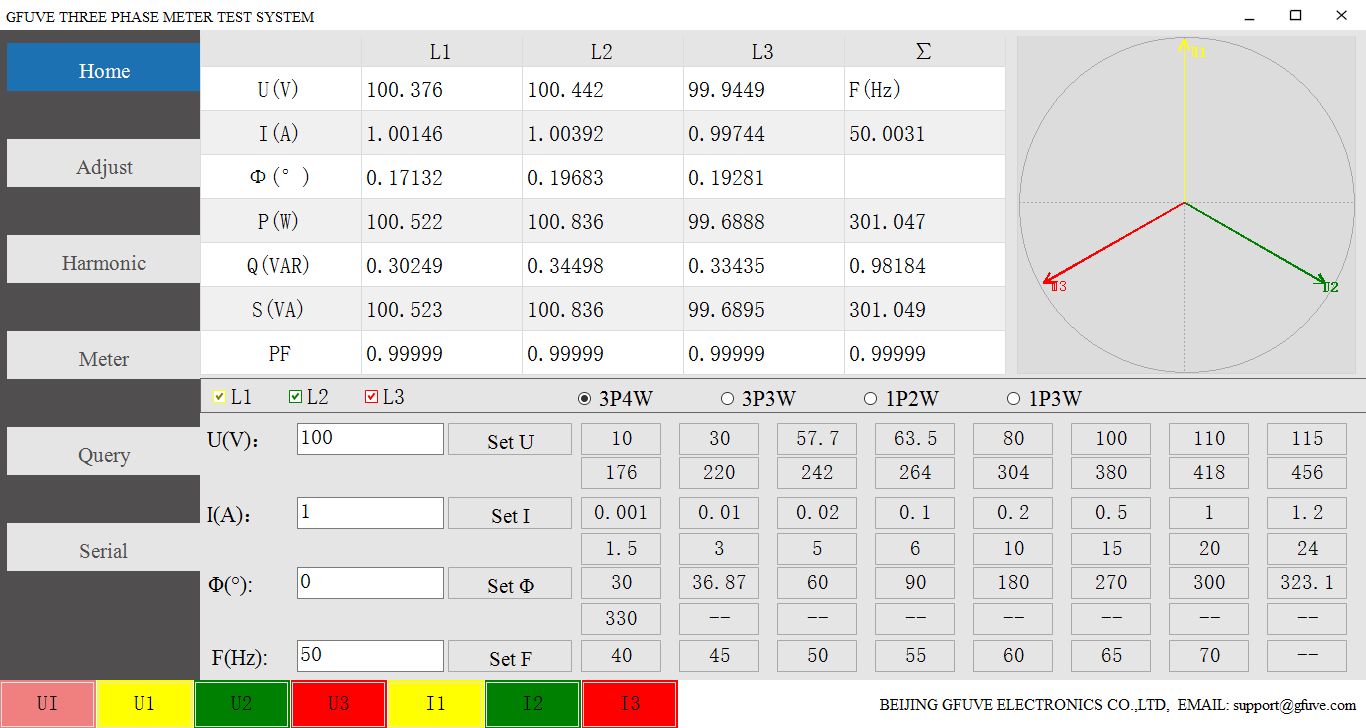

PC AUTOMATIC TESTING SOFTWARE(OPTIONAL)
