GF211B MULTI-FUNCTION DOUBLE CLAMP DIGITAL PHASE ANGLE METER

GF211B multi-function double clamp digital phase angle meter is a multi-functional portable instrument. It can measure not only alternating voltage, but also alternating current. Its important function is to measure phase angle between two voltages, between two current or between voltage and current. The current signal is obtained by the clamp current transformer without cutting off current wire. It can discern inductive circuit and capacitive circuit; directly read differential protection phase among every unit of CT; check connection of transformer; measure three way voltage phase sequence; check whether the meter connection is right or not; evaluate the running speed of electric kWh meter. It has high resolution of current, so can be used as a leakage current meter. It is an ideal choice for electric power bureau, factories, mine, petroleum-chemistry enterprises, metallurgy factories and so on.

Request a quote Download Catalogue video

APPLICATION

■ Power plant;

■ Electrical industrial field;

■ Power transformer factory;

■ Metrological service center;

■ Protection relay commission in substation;

■ Electricity power bureau & power company;

■ Power engineering commissioning company;

■ Electrical Department of industrial and mining enterprises;

FEATURES

■ Operational simple;

■ Handheld designed;

■ As a power meter on site;

■ Discern inductive circuit and capacitive circuit;

■ Check connection of transformer automatically;

■ Measure two channel voltage phase sequence;

■ Evaluating the running speed of electric kWh meter;

■ Checking whether the meter connection is right or not;

■ High resolution of current, used as a leakage current meter;

■ Directly read differential protection phase among every unit of CT;

■ Current signal is obtained by the clamp current transformer on line directly;

■ Measure phase angle between two channel U, between two channel I or between U & I;

■ Measure alternating voltage (U), alternating current (I), frequency (F), active power (P), reactive power (Q), power factor (PF) etc;

PARAMETERS

Electrical parameters
Accuracy class 0.5%
Power supply 3.7V Li-batteries
Scale
Phase 0-360.0°
AC Voltage 0-500V; two channel
AC Current 200mA / 2A / 10A; two channel
Frequency 45-65Hz
Active power accuracy 0.5%, resolution 0.01W
Power factor -1 ~ 0 ~ 1, resolution 0.001
Vector Yes
LCD 2.8 inch greenlight LCD
Fundamental error (under standard operating environment)
Temperature 23°C±5°C
Moisture <65%
Wave form Sine wave Distortion ≤0.5%
Frequency 50±2Hz, 60±2Hz
Wire position Center of clamp
Phase measurement Voltage: 100V±25V
Current: 1A±0.2A
Phase accuracy 0.5% FS
Voltage accuracy
200V 0.2FS, Resolution 0.1V
500V 0.2FS, Resolution 1V
Current accuracy
10A 0.5FS, Resolution 10mA
2A 0.5FS, Resolution 1mA
200mA 0.5FS, Resolution 0.1mA
Input impedance
When measure voltage 1MΩ
Input voltage impedance >120KΩ when measure phase
Phase measurement
Voltage range 0-500V
Current range 0.001-10A
Additional error
Measure phase angle, the voltage and the current Less than the fundamental error
Measure current The error led by wires away from center of clamps is less than the fundamental error
Safety specification

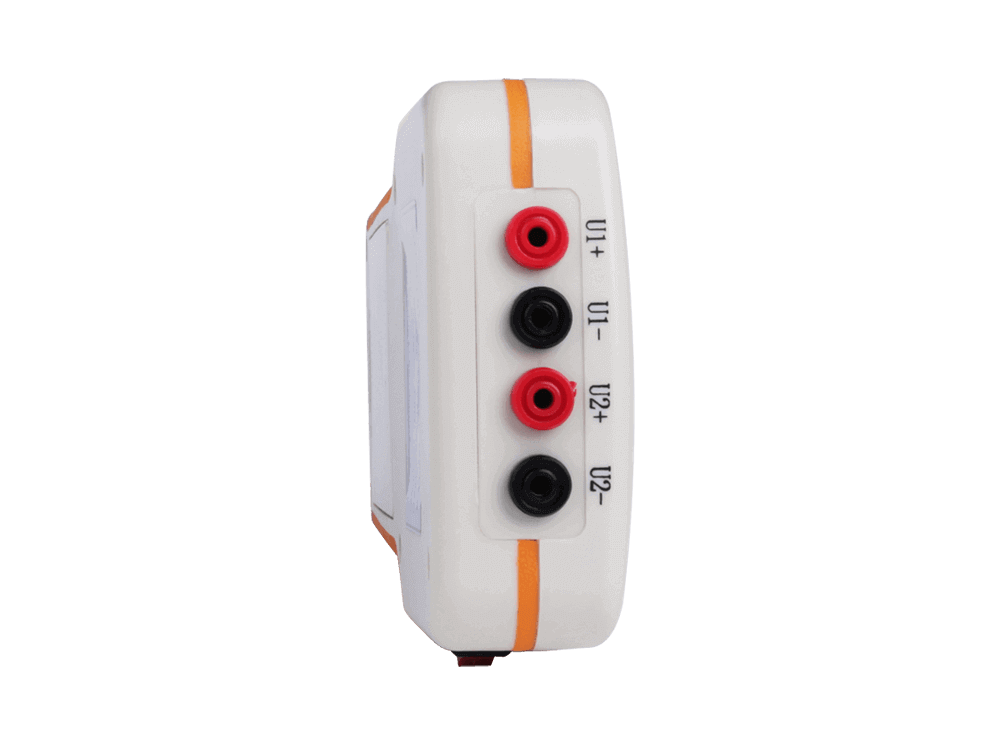

Resistance to voltage The meter can resist 1000V (AC sine wave, 50Hz or 60 Hz) for 1 minute between the meter circuit and the meter case; Between input joint U1 and U2 can resist 500V (AC sine wave, 50Hz or 60 Hz) for 1 minute.
Insulation resistance The resistance both between the meter circuit and the meter surface and between the terminals U1 and U2 is greater than 100MΩ.
Mechanical parameters
Dimensions (W×D×H) (mm) 185×85×41
Weight (kg) 0.26
Environmental conditions
Operating temperature -10°C to +50°C
Storage temperature -20°C to +70°C
Humidity Relative humidity ≤95% not condensing
Accessory
Multi-function double clamp digital phase angle meter 1 piece
Clamps 10A 2 pieces
Clamp wire 2 pieces
Voltage wire 2 pieces
User's manual 1 piece
Certification of quality(test report) 1 piece

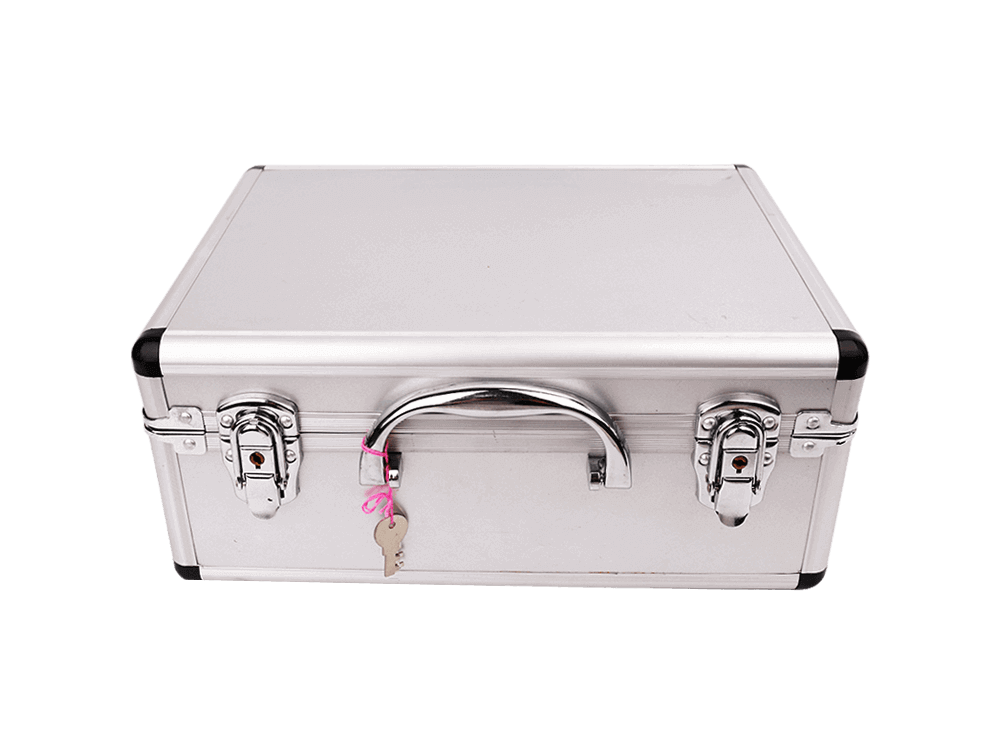

Box 1 piece
