GF1000 MULTI-POSITIONS SINGLE PHASE KWH METER TEST BENCH

>Product>Electrical Test Equipment>Energy Meter Test Equipment>Multi-Positions Single Phase Kwh Meter Test Bench

GF1000MULTI-POSITIONS SINGLE PHASE KWH METER TEST BENCH

The GF1000 series multi-positions single phase kWh meter test bench can measure mechanical meters, electronic mechanical meters and electricity meter error by the way of automatic, semi-automatic or manual operation. It composes of single phase programmable power source, high precision single phase reference energy meter, meter suspension test rack, Multi-channel server and precision clock source etc. GF1000 meter test bench is applied in the measurement centre of grid company energy measurement department of power supply company and energy management utility, industrial enterprise and meter manufacturers.

Request a quote Download Catalogue video

FEATURES

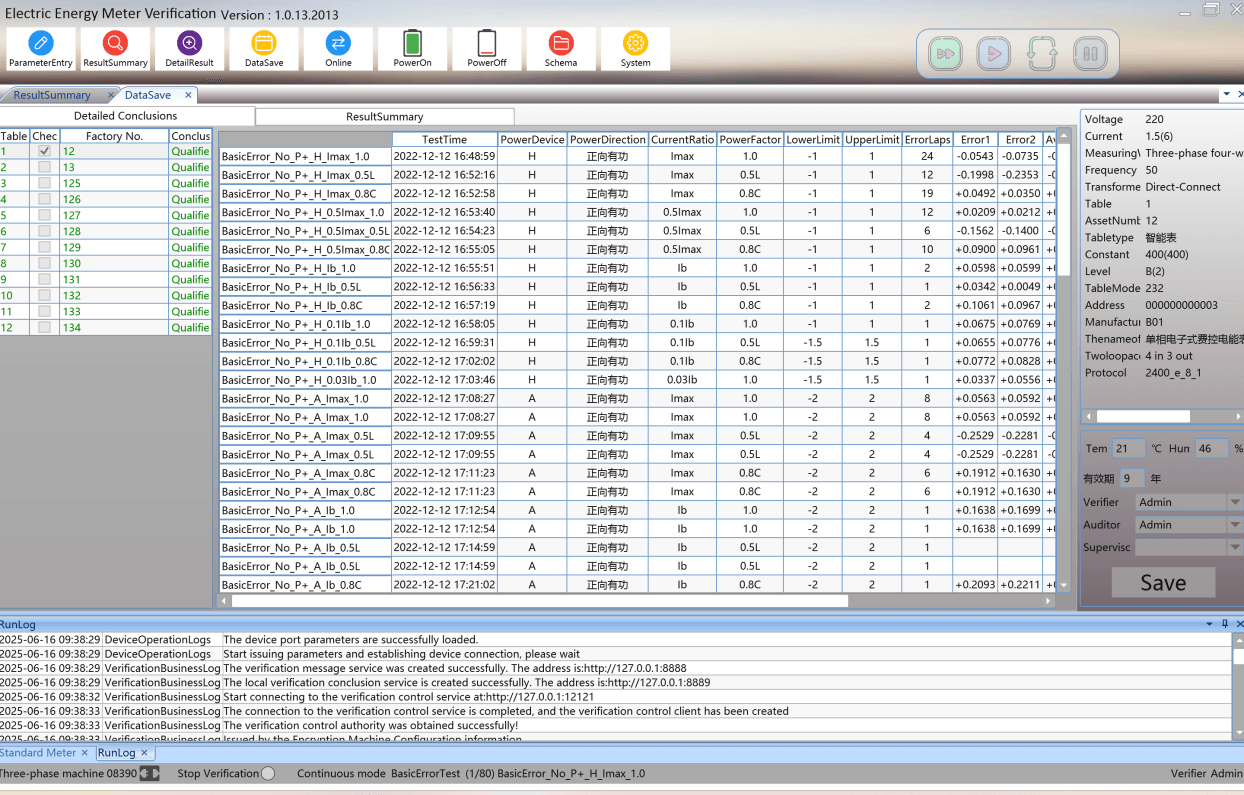

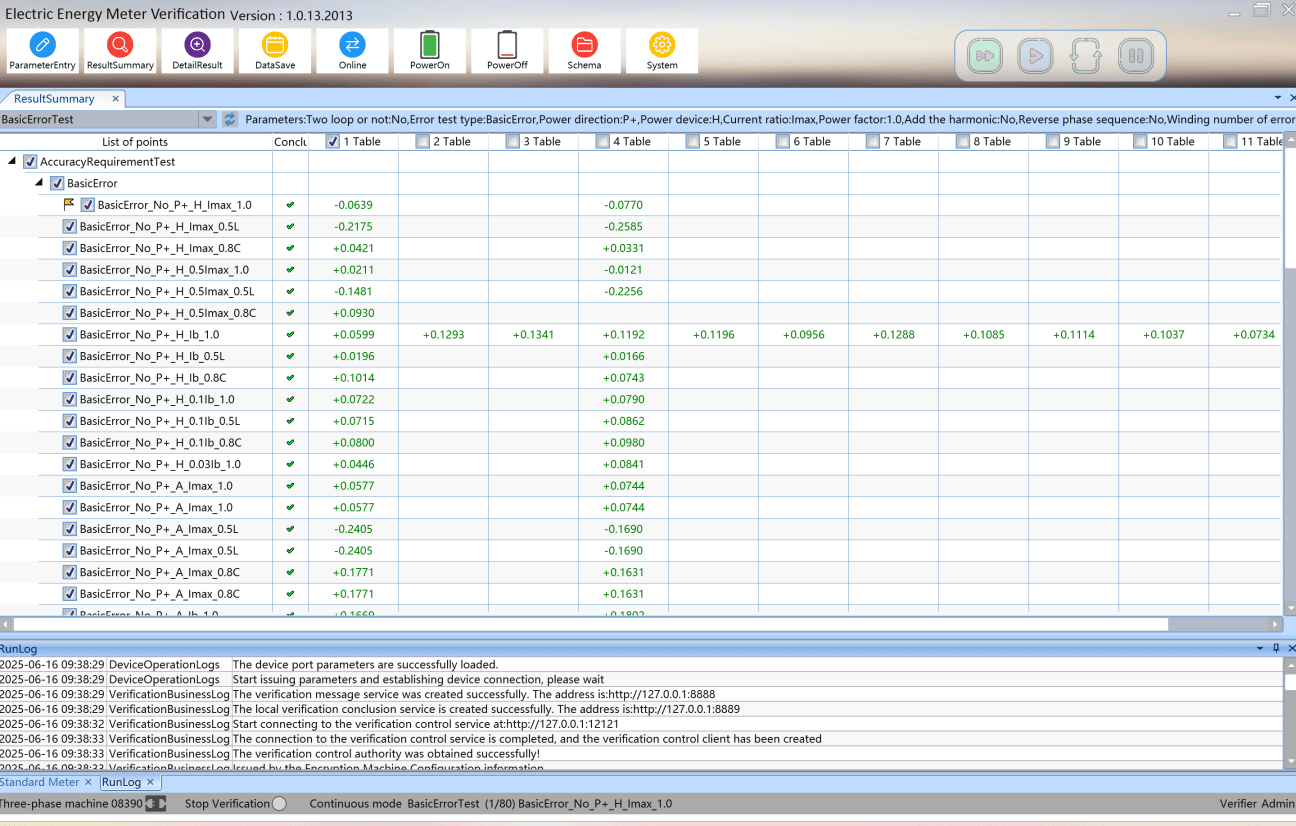

■ With auto PC control software;

■ With barcode scanning function optional;

■ Meter positions can be chosen from 3 - 48;

■ Self-check and perfect protection function;

■ High resolution of voltage, current and power;

■ Large LCD display and simple interface for operation;

■ The power source with voltage rise and fall, interruption;

■ Full automatic, semi automatic and manual operation available;

■ Aluminum alloy material,light and strong and corrosion resistant;

■ Wide current measuring range which can be automatically switched;

■ High stability of power source which is up to 0.01%/100s and low distortion which is no more than 0.3% ;

■ High accuracy, 6-digit display the energy relative errors are no more than 0.05%(0. 1%)within the measuring range ;

■ Standard cabinet structure, single phase reference meter and single phase power power rack separation design, can be used separately;

■ Equipped with sing phase mulfunction reference meter and progam-conrolled single phase power source which can be separately used and are convenient for testing;

FUNCTIONS

■ Meter constant test;

■ Starting current test;

■ Dips and Interruptions;

■ Pre-warming(Warm-Up Test);

■ Dial test (Register test);

■ Creep test (No-load test);

■ Equipped with RS232 communication port;

■ Testing single-phase meters under tampered conditions;

■ Calibration of lower accuracy reference standard meter;

■ Able to print out all kinds of test reports with the standard forms;

■ Calibrate all kinds of electronic and inductive single phase kWh meter;

■ Influence quantity test (voltage, frequency, harmonic distortion, etc.);

■ Automatic measurement like shunting, basic errors, standard deviation etc;

■ Accuracy test in all four quadrants (active, reactive and apparent energy);

■ Test voltage, current, active/reactive/apparent power, phase, power factor, frequency, and etc;

■ Able to display waveform of voltage and current able to set 2nd-51st harmonic of voltage and current, measure the waveform distortion and harmonic content, and display harmonic chart;

PARAMETERS

Electrical parameters
Accuracy	0.02%, 0.05%, 0.1%
Power supply	AC 180-265V, or 3×220/380V±15%, frequency 50/60Hz.
Single Phase Power Source
AC voltage output
Range	57.7V, 100V, 220V, 380V (max 480V)
Adjustment range	(0-120)%RG⁽¹⁾
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	0.01%/120s
Distortion	0.3% (Non-capacitive load)
Output load	1500VA
Measuring accuracy	0.02%RG or 0.05% RG
AC current output
Range (I1, I2, I3)	0.1A, 0.25A, 0.5A, 1A, 2.5A, 5A, 10A, 25A, 50A, 100A, 120A
Adjustment range	(0-120)%RG
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	<0.01%/120s
Distortion	≤0.3% (Non-capacitive load)
Output load	1500VA
Accuracy	0.02% RG or 0.05% RG
Power Output
Active power output stability	<0.01%RG/120s
Reactive power output stability	<0.02% RG/120s
Active power measuring accuracy	0.02% RG or 0.05% RG
Reactive power measuring accuracy	0.1% RG
Phase output
Output adjustment range	0°-359.999°
Output adjustment fineness	10, 1, 0.1, 0.01 as optional.
Resolution	0.01°
Accuracy	0.02° or 0.05°
Power factor
Adjustment range	-1 ~ 0 ~ 1
Resolution	0.0001
Measurement accuracy	0.0005
Frequency output
Adjustment range	40Hz-70Hz
Output adjustment fineness	5Hz, 1Hz, 0.1Hz, 0.01Hz as optional.
Resolution	0.001Hz
Accuracy	0.002Hz
Voltage/current/harmonic setting
Harmonic number	2-63times
Harmonic content	0-40%
Harmonic phase	0-359.99
Harmonic setting accuracy	(10%±0.1%) RD⁽²⁾
Single Phsase Reference Meter
AC Voltage Measurement
Range(U1, UN)	60V, 120V, 240V, 480V
Measurement range	(0-120)%RG⁽¹⁾
Resolution	0.01%RG
Accuracy	0.02%RD or 0.05% RD
AC Current Measurement
Range(I1)	0.001A, 0.002A, 0.005A, 0.01A, 0.02A, 0.05A, 0.1A, 0.2A, 0.5A, 1A, 2A, 5A, 10A, 20A, 50A, 100A, 120A
Measurement range	(0-120)%RG
Resolution	0.01%RG
Accuracy	0.02%RD or 0.05% RD
Phase Measurement
Range	0°-359.9999°
Resolution	0.0001°
Accuracy	0.02° or 0.05°
Power Factor Measurement
Range	-1.0000 ~ 0.0000 ~ 1.0000
Resolution	0.0001
Accuracy	0.0005
Frequency Measurement
Range	40Hz-70Hz
Resolution	0.001Hz
Accuracy	0.002Hz
Voltage /Current/Harmonic Measurement
Harmonic number	2-63times
Harmonic content	0-40%
Accuracy	0.3%RD
Power energy Measurement error
Active power energy	0.02%RG or 0.05% RG or 0.1% RG
Reactive power energy	0.1% RG
Power pulse output
Power pulse type	Active pulse, reactive pulse
Active power pulse output	5V, 10mA
Pulse output frequency	Max 50kHz
Power pulse input
Pulse constant set range	(1--599999999)/kwh
Energy pulse type	Support active and reactive pulse, the highest frequency power pulse input is 200KHz.
Meter position
Position	3, 6, 12, 20, 24, 40, 48pcs meter
Standard
Standard	IEC62053-21,22,23; IEC60736; ANSI C12.20-2002; JJG 597-2005; JJG596-2012; JJG 1085-2013; JJF 68-2019; DL/T 826-2002; DL/T 1478-2015; DL/T 448-2016; EN 50470-1, EN 50470-2, EN-50470-3; IEC61010;
Safety
Isolation protection	IEC61010-1:2001
Measurement category	300V CAT III, 600V CAT II
Degree of protection	IP20
Declaration of conformity	CE & CNAS certified
Mechanical parameters
Dimensions (W×D×H)(mm)	Cabinet size: 8006001850mm (LWH). Bench size: 224007601846mm (LW*H).
Weight (kg)	About 650
Environmental conditions
Ambient temperature	0°C to +40°C
Relative humidity	35%-85%
(1) RG means range, the same as below; (2) RD means the setted harmonic content, harmonic can be a single output, also multiple output.

GF1000-24 POSION PACKING LIST

Item	Name	QTY
1	GF111G single phase reference meter	1PC
2	GF101G single phase power source	1PC
3	BEIDOU precision time base source	1PC
4	Multi-channel communication sever	1PC
5	Scanning head	24PCS
6	Energy pulse cable(input)	24PCS
7	Error indicator	24PCS
8	24 positions Hanging energy meter rack with MVST	1PC
9	Auxiliary test cable	1SET
10	Standard tool kit	1PC
11	PC computer with automatic testing software	1PC
12	Printer(Optional)	1PC
13	Opreration Manual	1PC
14	Factory test certificate	1PC
