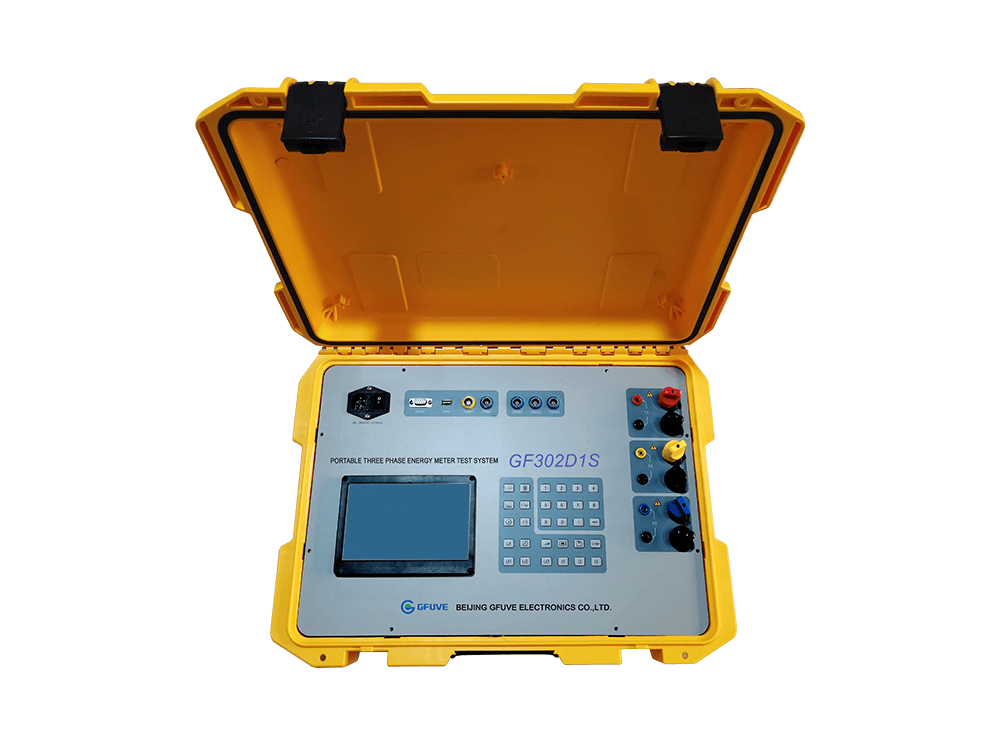

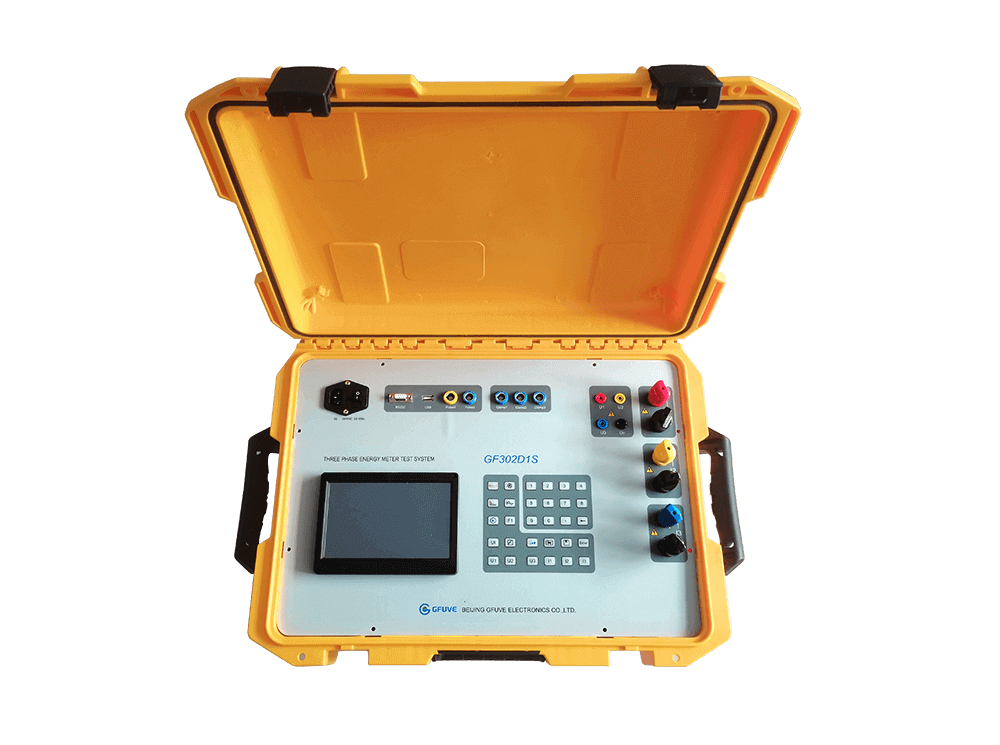

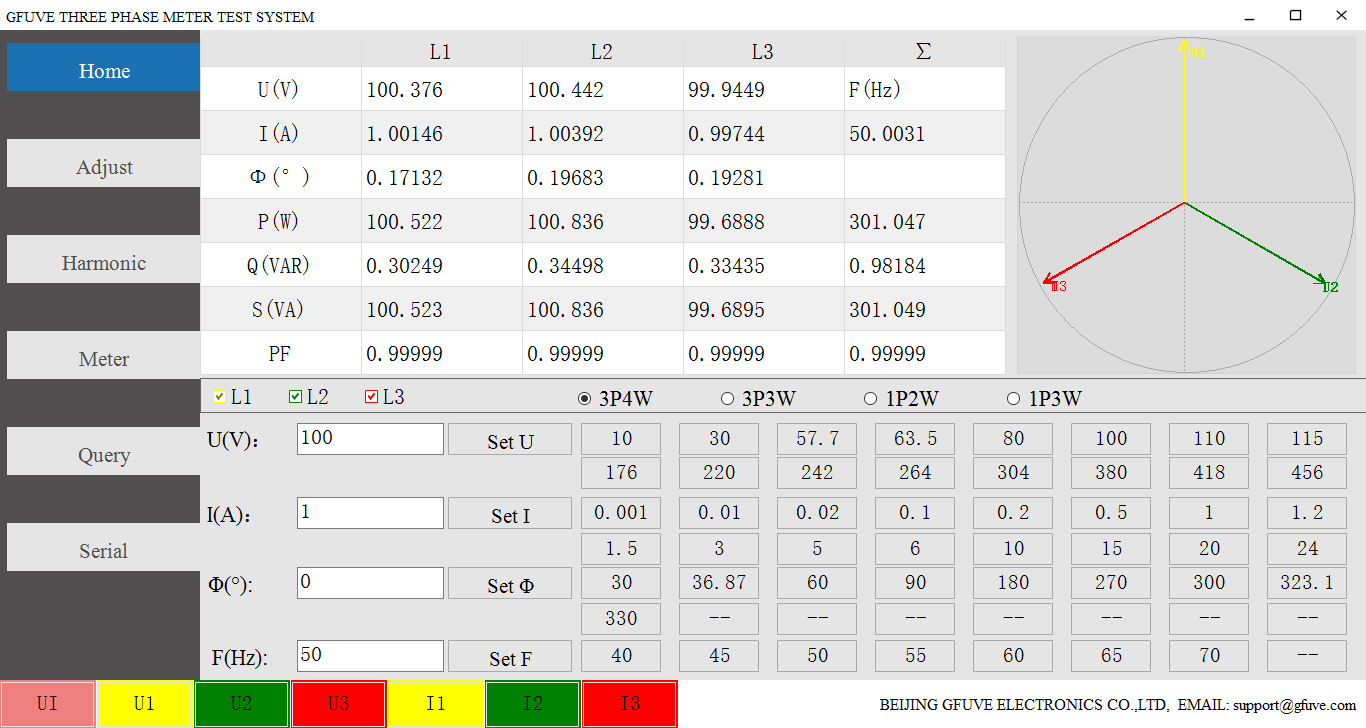

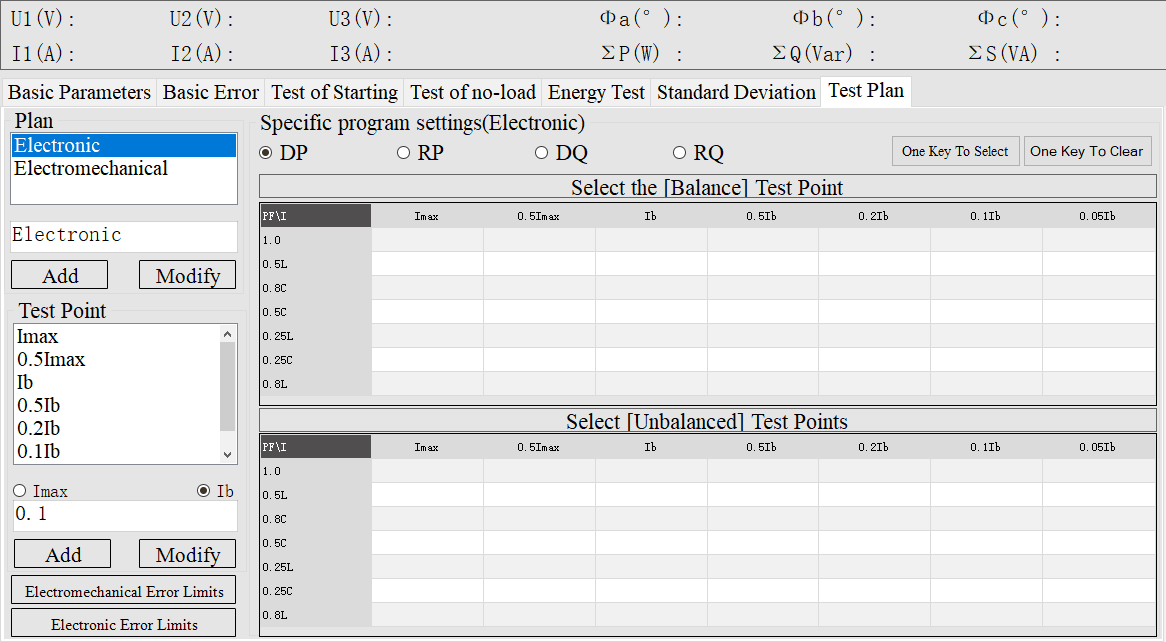

The GF302D1S portable three phase energy meter test system consists of an integrated 0.05% three-phase current and voltage source and a three-phase electronic reference standard meter of accuracy class 0.02. Characteristic features of the GF302D1S are its wide measuring range from 0 to 120A and 0 to 600V, high accuracy and high tolerance to unwanted external influences. The GF302D1S allows the monitoring of meter installations as well as analysis of the local mains conditions when it is as portable reference working standard. The equipment offers high functionality combined with an excellent menu guided operation via built-in keyboards and colored 7' touch LCD-display. Voltage & current harmonics output from 2 to 63 times. This model portable meter test system can be programmable by PC, automatic generation of energy meter error test report.
■ Measuring the distortion factor;
■ As three phase reference standard;
■ User friendly menu guided operation;
■ Measuring mechanical meter and electric meter;
■ As three phase voltage source and current source;
■ Measuring frequency, phase shift and power factor;
■ Automatic operation without need of an external PC;
■ Easy verification and analysis of meter installations;
■ Especially configured USB stick for storage of customer data;
■ Energy dosing with built-in current source and voltage source;
■ Testing all kinds of energy meter in 1P2W, 1P3W, 3P3W, 3P4W;
■ Harmonic spectrum analysis for voltage and current up to the 63rd order;
■ Power and energy measurements for active, reactive and apparent power;
■ Vector diagram display and phase sequence indication on integrated colored screen;
■ Weight 23kg;
■ With 120A clamp on ct;
■ 7 inch TFT touch screen;
■ Accuracy class 0.02 or 0.05;
■ 1P2W, 1P3W, 3P3W, 3P4W;
■ Test by automatic or manual;
■ Start testing and creep testing;
■ Used on site or in the laboratory;
■ 0-120A/0-600V/40-70Hz/0-360.000;
■ The test Scheme can be programmed;
■ Recorder 10000 sets energy meter data;
■ 5A, 20A, 120A, 1000A, 3000A clamp optional;
■ With 2-63rd harmonics measurement function;
■ Overload, short circuit, open circuit protection;
■ With imp/kWh, imp/kvarh, imp/Wh, imp/varh etc;
■ Reference standard and power source integrated;
| Electrical parameters | |
|---|---|
| Accuracy | 0.02%, 0.05% |
| Power supply | One phase AC 100-265V, frequency 50/60Hz. |
| Voltage measurement | |
| Range | 0.00-600V |
| Resolution | 0.001V |
| Error | ±0.02% (30V-600V) ±0.05% (0.1V-30V) |
| Harmonic | 2nd-63st |
| Current measurement | |
| Range (direct connection) | 1mA-120A |
| Resolution | 0.1mA |
| Error (direct connection) | ±0.02% (10mA-120A) ±0.05% (1mA-10mA) |
| Harmonic | 2nd-63st |
| Clamp on CTs(optional) | 5A, 20A, 100A, 200A, 500A, 1000A, 2000A, 3000A |
| Accuracy | 0.2% |
| Power measure error | |
| Active power (direct connection) | ±0.02% (0.01A-120A) ±0.05% (0.001A-0.01A) |
| Reactive power (direct connection) | ±0.05% (0.1A-120A) |
| Active power (clamp on CTs) | ±0.2% (0.001A-120A) |
| Reactive power (clamp on CTs) | ±0.5% (0.001A-120A) |
| Energy measure error | |
| Active energy (direct connection) | ±0.02% (0.01A-120A) ±0.05% (0.001A-0.01A) |
| Reactive energy (direct connection) | ±0.05% (0.01A-120A) |
| Active energy (clamp on CTs) | ±0.2% (0.001A-120A) |
| Reactive energy (clamp on CTs) | ±0.5% (0.001A-120A) |
| Phase angle measurement | |
| Range | 0°-360° |
| Resolution | 0.005° |
| Error | ±0.015° |
| Frequency measurement | |
| Range | 40Hz-70Hz |
| Resolution | 0.0005Hz |
| Error | 0.001Hz |
| Power factor measurement | |
| Range | -1.0 ~ 0 ~ +1.0 |
| Resolution | 0.0001 |
| Error | 0.0005 |
| AC voltage source output | |
| Range (U1, U2, U3) | 0-500V |
| Adjustment range | (0-120)%RG(1) |
| Adjustment fineness | 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional. |
| Stability | 0.01%/120s |
| Distortion | 0.3% (Non-capacitive load) |
| Output load | Each phase 25VA |
| Accuracy | 0.05%RG |
| AC current source output | |
| Range (I1, I2, I3) | 0-120A |
| Adjustment range | (0-100)%RG |
| Adjustment fineness | 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional. |
| Stability | <0.01%/120s |
| Distortion | ≤0.3% (Non-capacitive load) |
| Max output load | 50VA; |
| Accuracy | 0.05%RG |
| Power output | |
| Active power output stability | <0.01%RG/120s |
| Reactive power output stability | <0.02%RG/120s |
| Active power output accuracy | 0.05%RG |
| Reactive power output accuracy | 0.1%RG |
| Phase output | |
| Output adjustment range | 0°-359.999° |
| Output adjustment fineness | 10, 1, 0.1, 0.01 as optional. |
| Resolution | 0.01° |
| Accuracy | 0.02° |
| Power factor output | |
| Adjustment range | -1 ~ 0 ~ 1 |
| Resolution | 0.0001 |
| Measurement accuracy | 0.0005 |
| Frequency output | |
| Range | 40Hz-70Hz |
| Resolution | 0.001Hz |
| Accuracy | 0.002Hz |
| Voltage/Current/Harmonic output | |
| Harmonic number | 2-63times |
| Harmonic content | 0-40% |
| Harmonic phase | 0-359.99 |
| Harmonic setting accuracy | (10%±0.1%)RD(2) |
| Energy pulse output | |
| Energy pulse type | Active pulse, reactive pulse |
| Active Energy pulse output | 5V, 10mA |
| Energy pulse input | |
| Energy pulse type | Support active and reactive pulse, the highest frequency power pulse input is 2MHz. |
| Display | |
| Color LCD | 7"STN (800×480), touch |
| Communication port | |
| Communication port | RS232, USB2.0 |
| Function | |
| Vector diagram | Yes |
| Waveform | Yes |
| Energy register test | Yes |
| CT ratio test | Yes |
| CT PT burden test | Yes |
| Local parameter input | Yes |
| Wiring emulation | Yes |
| Self-calibration | Yes |
| Recorder check | Yes |
| Data storage | Yes |
| GPS | Yes, optional |
| Data storage qty | 10000 |
| External extend memory | Yes |
| Communication with PC | Yes |
| Upload data | Yes |
| Keyboard | Yes |
| Standard | |
| Standard | IEC62053-21,22,23; IEC60736; ANSI C12.20-2002; JJG 597-2005; JJG596-2012; JJG 1085-2013; JJF 68-2019; DL/T 826-2002; DL/T 1478-2015; DL/T 448-2016; EN 50470 |
| Safety | |
| Isolation protection | IEC61010-1: 2001 |
| Measurement category | 300V CAT III, 600V CAT II |
| Degree of protection | IP42 |
| Declaration of conformity | CE & CNAS certified |
| Mechanical parameters | |
| Dimensions (W×D×H)(mm) | 495 x 390 x 195 |
| Weight (kg) | 23 |
| Environmental conditions | |
| Ambient temperature | -25°C to +50°C |
| Storage temperature | -30°C to +65°C |
| Relative humidity | 15%-95% |
| (1) RG means range, the same as below; (2) RD means the setted harmonic content, harmonic can be a single output, also multiple output. |
|
