>Product>Power Meter>Ethernet Power Meter>Ethernet Digital Power Meter With 2m Data Logger
-big_ETHERNET_DIGITAL_POWER_METER_WITH_2M_DATA_LOGGER.png)
-big_digital_ethernet_power_meter.png)
-big_power_meter_data_logger.png)
-big_ethernet_power_meter.png)
-big_modbus_rtu_digital_power_meter.png)
-big_rs485_digital_power_meter.png)
-big_three_phase_power_meter.png)
FU2200A ethernet digital power meter with data logger is a three-phase multifunction power and energy meter manufactured by GFUVE GROUP. It provides excellent value for monitoring power and energy management systems. It may be used as data gathering devices for intelligent power distribution or plant automation systems. All monitored data is available via a standard digital RS485 communication port, which is based on the Modbus RTU protocol. FU2200A ethernet power meter has the PC software and the data logger function, which can set by end users from 1min to 60min intervals to record. You can read the data through a PC. Also, you can share the data in the Internet LAN. By the way, it can measure the harmonics. With a wide range of models to choose from, the FU2200A power meter offers unparalleled value and functionality.
■ Power plant;
■ Data logging;
■ Power quality analysis;
■ Power monitoring system;
■ Commercial, industrial, utility;
■ Low voltage distribution cabinet;
■ High voltage distribution cabinet;
■ Electric energy metering cabinet；
■ Mobile communication company;
■ Medium and low voltage systems;
■ Energy consumption monitoring system;
■ Electric energy metering of photovoltaic power station;
■ Metering of distribution feeders, transformers, generators, capacitor banks and motors;
■ 4 quadrant energy;
■ Three years warranty;
■ Power quality analysis;
■ With load curve function;
■ Web browse data function;
■ Unbalance & phase angles;
■ Max/Min log with timestamp;
■ Data logging for all parameter;
■ With PC management software;
■ Demands and Multi-tariff energy;
■ True-RMS measuring parameters;
■ TOU, 4 tariffs, 6 seasons, 6 schedules;
■ 2MB onboard memory, extended to 16M;
■ ANSI and IEC 0.2 or 0.5S accuracy class;
■ High-speed RS485, 10/100M ethernet port;
■ Time interval set from 1minute to 60minutes;
■ Measure individual harmonics from 2nd to 63th;
| Electrical parameters | |
|---|---|
| Power supply (AC/DC) | AC 85-400V/DC 85-330V Power consumption: <4VA |
| Measurement parameters | Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF; Phase angle; Active power(W); Reactive power(Q); Apparent power(S), 2nd to 63th harmonics (option) |
| Harmonics | Total harmonics ratio of phase-voltage Total harmonics ratio of current 2nd to 63th harmonics ratio of phase-voltage 2nd to 63th harmonics ratio of current |
| Maximum value & minimum value | Voltage, current, frequency, active power, reactive power, apparent power, demandP, demandQ, demandS. |
| Computation | Forward active power energy Reverse active power energy Forward reactive power energy Reverse reactive power energy |
| Measuring range | 0-480V（P-N), 0-800V(P-P), 0-10A, 45-65Hz, -1 ~ 0 ~ 1 |
| Measuring accuracy | Voltage: 0.5%RD±0.05%FS Current: 0.5% RD±0.05% FS Active power: 0.5% RD±0.05% FS Reactive power: 1.5% RD+0.05% FS Apparent power: 0.5% RD+0.1% FS Power factor: 0.5% RD Frequency: 0.05% RD Active energy: 0.5S, 0.5%, 1% |
| Maximum demand | Ia, Ib, Ic, ΣPtotal, ΣQtotal, ΣStotal, 15 minutes |
| Data logger interval time | 1minute-60minutes can be set |
| Data logger | U1, U2, U3, U12, U23, U31, I1, I2, I3, F, P, Q, S, demand, Ep, Eq, Es, Phase, Unbalance, EPrate, EQrate, ESrate |
| Load recorder or curve | Yes |
| Display | Blue back-lit LCD display 5 display figures 4 operation keys |
| Communication | Support RS-485 interface port, 32 (128) networking RTU-ModBus-TCP/IP, SNMP communication protocol Ethernet 10/100M port (RJ45) |
| Memory | 2M onboard memory, can be extended to 16M. Data logger interval can set by end users from 1min to 60min. The default is 15min. You can read the data through a PC, also you can select the data to diaplay and store from software. |
| Programmable | Measuring system: 3P4W/3P3W etc Transformation ratio: PT 1-10000; CT 1-10000 |
| Energy pulse | Provides active & reactive energy pulse output Pulse parameters can be choosed Pulse constant range: 0.1-10000kWh/kvarh Pulse constant can be programmable Dry contact output (1Ax100V) |
| Input every voltage/current compsumption | 0.5VA/channel |
| Tariffs | 4 |
| Seasons | 6 |
| Schedules | 6 |
| Connection mode | 3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P3W, 1P2W |
| Clock | Yes |
| Baud | 1200-57600, Standard |
| Web browser | Yes |
| PC management software | Yes, downloaddata to excel file |
| Standard | EN610101:2010; EN61010-2-030:2010; EN61326-1:2013; EN61000-3-2:2014; EN61000-3-3:2013; IEC61000-4; IEC61557-12; IEC60068-2-1/2/30; IEC 62052-11; IEC 62053-21; IEC 62053-22; |
| Mechanical parameters | |
| Dimensions (L x W x H)(mm) | 96 x 96 x 14 |
| Mounting | Panel mounting Trepanning: 92x92mm The thickness of installation: 84mm DIN mounting (optional) |
| Environmental conditions | |
| Temperature | -5 to +50 °C |
| Humidity | 20%-95%RH, without condensation |
| Warranty | Three years warranty |
| Parameters | Accuracy | Resolution | Measuring range | Show on the display |
|---|---|---|---|---|
| Voltage | 0.2% | 0.01V | 0-400V | 0.5-500kV |
| Current | 0.2% | 0.01mA | 0-6.5A | 1mA-50000A |
| Active power | 0.5% | 0.2W | 0-2400W/phase | -9999MW to +9999MW |
| Reactive power | 2% | 0.2var | 0-2400var/phase | -9999Mvar to +9999Mvar |
| Apparent power | 0.5% | 0.2VA | 0-2400VA/phase | 0-9999MVA |
| Active demand | 0.5% | 0.2W | 0-2400W/phase | -9999MW to +9999MW |
| Reactive demand | 2% | 0.2var | 0-2400var/phase | -9999Mvar to +9999Mvar |
| Apparent demand | 0.5% | 0.2VA | 0-2400VA/phase | 0 to 9999MVA |
| Power factor | 0.005 | 0.0001 | -1.000 - 0 - 1.000 | -1.000 - 0 - 1.000 |
| Frequency | 0.01Hz | 0.01Hz | 45.000-65.000Hz | 45.000-65.000Hz |
| Active energy | 0.5S, 0.5%, 0.2% | 0.001kWh | 0-999999.999kWh | 0-99999999.9kWh |
| Reactive energy | 2% | 0.001kvarh | 0-999999.999kvarh | 0-99999999.9kvarh |
| Apparent energy | 0.5% | 0.001VAh | 0-999999.999kVAh | 0-99999999.9kVAh |
| Phase angle | 0.1° | 0.01° | 0-359.99° | 0-359.99° |
| Unbalance | 2% | 0.01% | 0-300.00% | 0-300.00% |
| PT ratio | 1 | 1-10000 | ||
| CT ratio | 1 | 1-10000 | ||
| Address code | 1 | 1-253 | ||
| IP Address (default) | 192.168.1.16 | IP address can be modified |

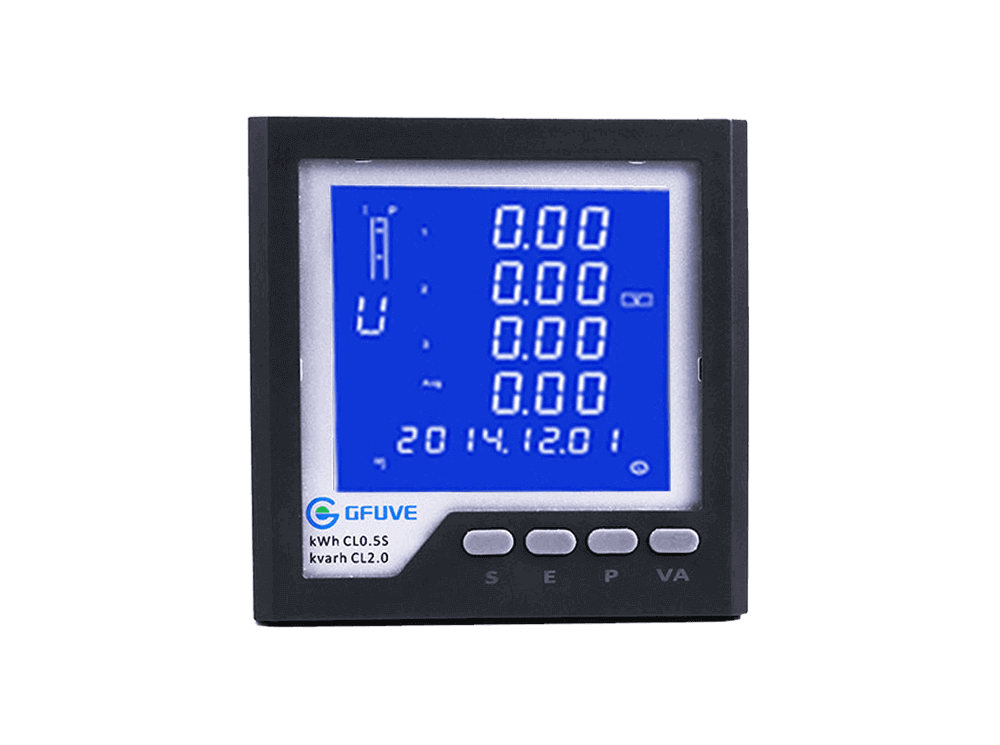

-big_RS485_SOLAR_DIGITAL_PANEL_POWER_ANALYZER_WITH_RJ45_LAN_TCP_IP_protocol.png)
