Instrument Voltage Transformer

>Product>CT & PT>Instrument Voltage Transformer

Instrument voltage transformers are high accuracy class electrical devices used to isolate or transform voltage levels. The most common usage of instrument voltage transformers is to operate instruments or metering from high voltage circuits or medium voltage circuits, safely isolating secondary control circuitry from the high voltages. The primary winding of the transformer is connected to the high voltage circuit, and the meter or relay is connected to the secondary circuit. GFUVE instrument voltage transformer have single pole type voltage transformer and double pole type voltage transformer. they have been used in medium voltage system and high voltage system All of instrument voltage transformers are strictly comply IEC60044-2, IEC 61869-1,3, IEC186, GB1027-1997, ANSI/IEEE C57.13.

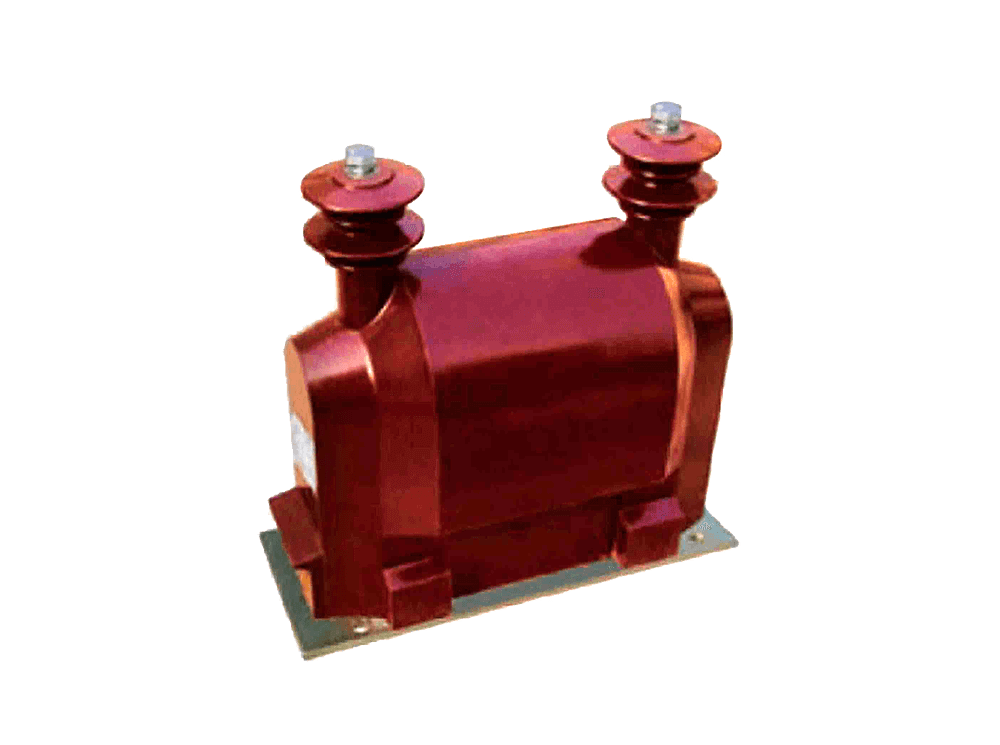

GFJDZX0978-10BG10KV HIGH ACCURACY INDOOR VOLTAGE TRANSFORMER
- • 0.2 0.5 1 3P 6P class
- • Multi windings design
- • Material:Epoxy (HCEP)
- • 12KV 11KV 10KV indoor
- • IEC 61869-1,3 Standards
- • 1000VA Limiting Therminal Output
GFJDZ0987-35HV HIGH ALTITUDE 0.2 CLASS 33KV POTENTIAL TRANSFORMER
- • Double pole deign
- • Deign 30 years life
- • Limiting Output 800VA
- • Material:Epoxy (HCEP)
- • IEC61869-1,3 standard
- • Accuracy class: 0.2 0.5
GFJDZX0946-3533KV SINGLE POLE HV INDOOR INSTRUMENT POTENTIAL TRANSFORMER
- • Weight 50KG
- • ANSI/IEEE C57.13
- • 0.2 0.5 6P 3P class
- • Single pole PT design
- • Material: Epoxy (HCEP)
- • 600VA Limiting Therminal

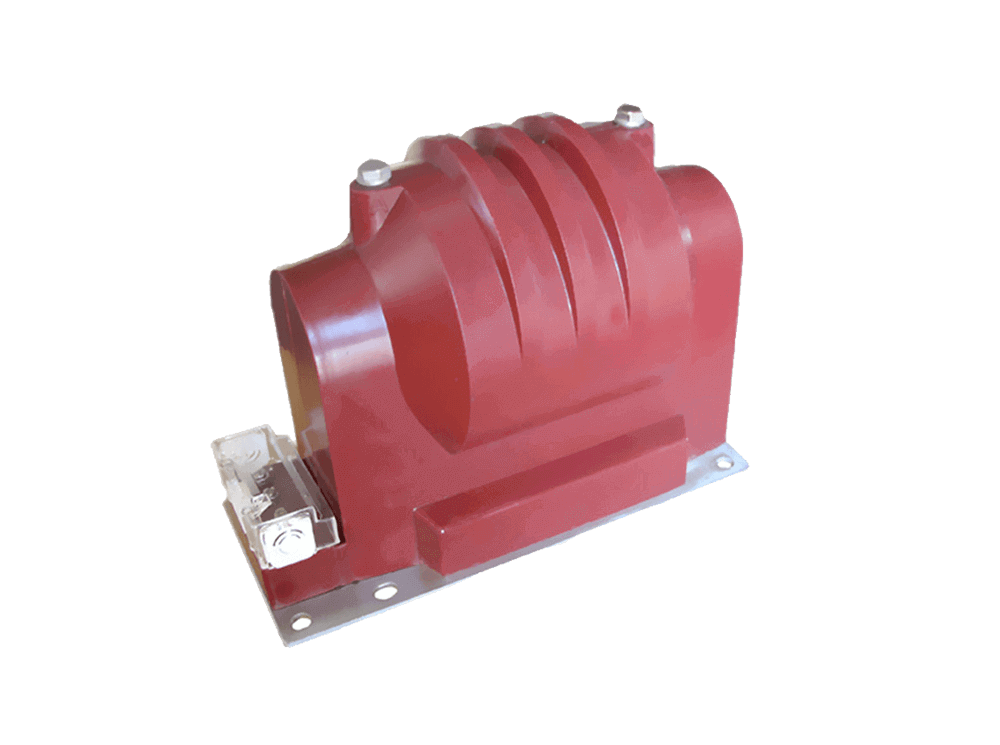

GFJDZX0966-10G12KV HIGH PERFORMANCE DRY TYPE INDOOR VOLTAGE TRANSFORMER
- • Long life design
- • IEC60044-2 Standard
- • Material:Epoxy (HCEP)
- • High quality silicon steel
- • Accuracy: 0.2 0.5 1 3P 6P
- • Big limiting therminal Output

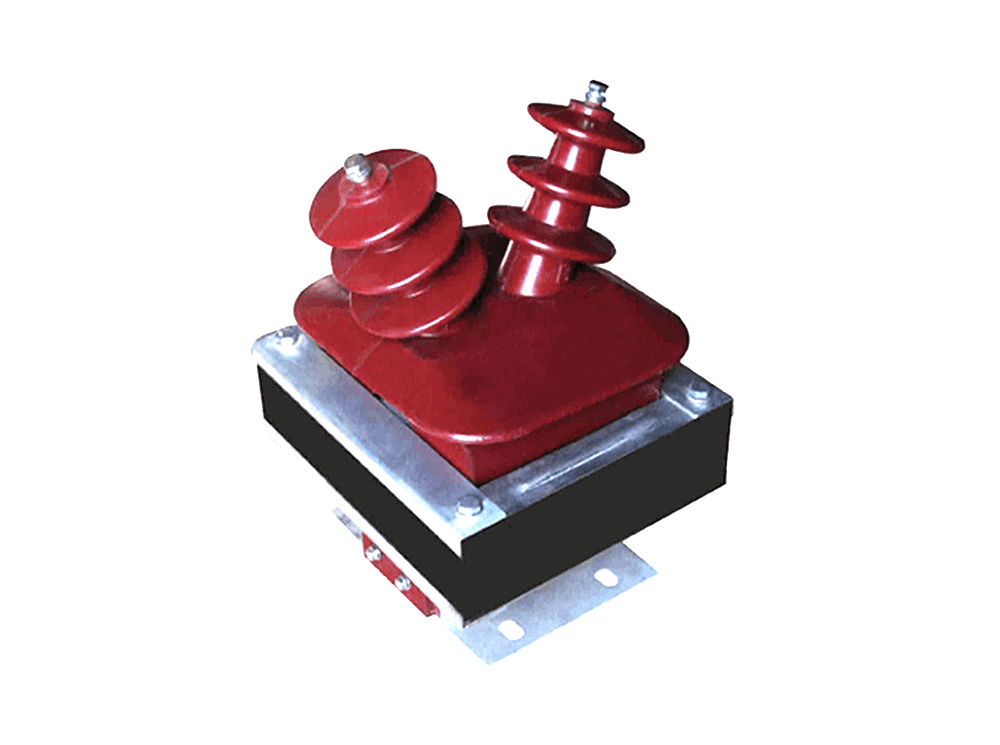

GFJDZ0929-1011KV HIGH ACCURACY DRY TYPE INTRUMENT POTENTIAL TRANSFORMER
- • Weight:28KG
- • Accuracy:0.2 0.5
- • Small Size design
- • Material:Epoxy (HCEP)
- • IEC 61869-1,3 Standard
- • 400VA limiting Therminal Output

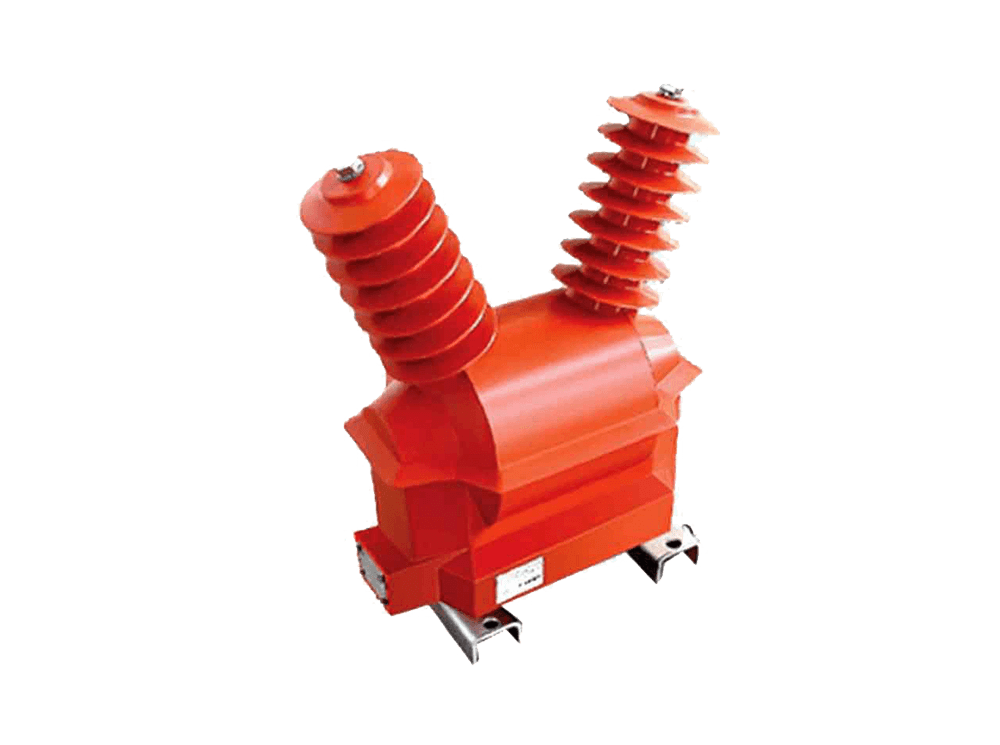

GFJDZW-20 GFJDZXW-20G20KV DOUBLE & SINGLE POLE OUTDOOR SINGLE PHASE VOLTAGE TRANSFORMER
- • Silica surface coating
- • Material:Epoxy(HCEP)
- • 15KV 20KV Outdoor using
- • Surface creepage distance good
- • Accuracy class: 0.2 0.5 1 3 3P 6P
- • Seconday voltage: (KV) 0.1√3,0.1,0.22

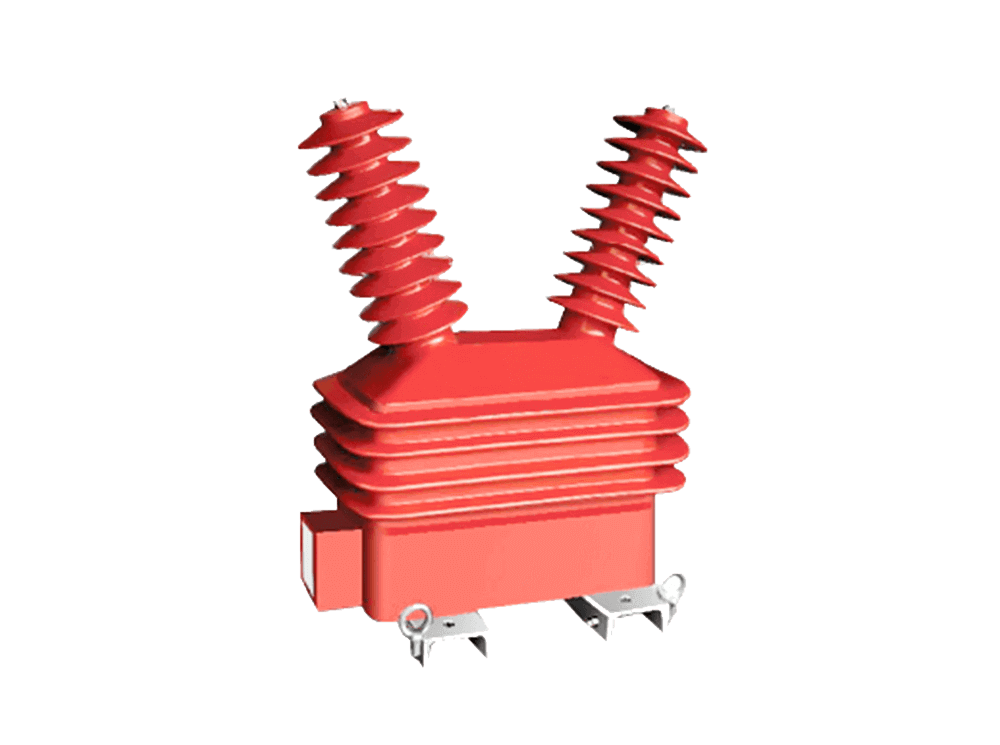

GFJDZW-35 GFJDZXW-35G33KV HIGH VOLTAGE OUTDOOR SINGLE PHASE INSTRUMENT VOLTAGE TRANSFORMER
- • Weight:120KG
- • Material:Epoxy (HCEP)
- • 33KV 35KV 36KV Outdoor
- • Accuracy:0.2 0.5 1 3 3P 6P
- • Surface creepage distance:1480mm
- • Secondary voltage: 0.1KV, 0.12, 0.22, 0.24
GFJDZ1053-10A12KV EPOXY-RESIN HIGH EFFICIENT INDOOR POTENTIAL TRANSFORMER
- • Weight:18.5KG
- • Material:Epoxy Resin
- • Class:0.2/0.5/1/3/3P/6P
- • Multi rated voltage Ratio
- • High quality silicon steel
- • Limiting therminal Output 200(VA)
GFJDZX1053-1011KV & 12KV HIGH ACCURACY INDOOR POTENTIAL TRANSFORMER
- • Weight:18KG
- • Small size deign
- • Material:Epoxy Resin
- • 0.2,0.5,1,3,3P,6P Class
- • 3KV,6KV,10KV,11KV,12KV
- • Limiting Therminal Output 200(VA)

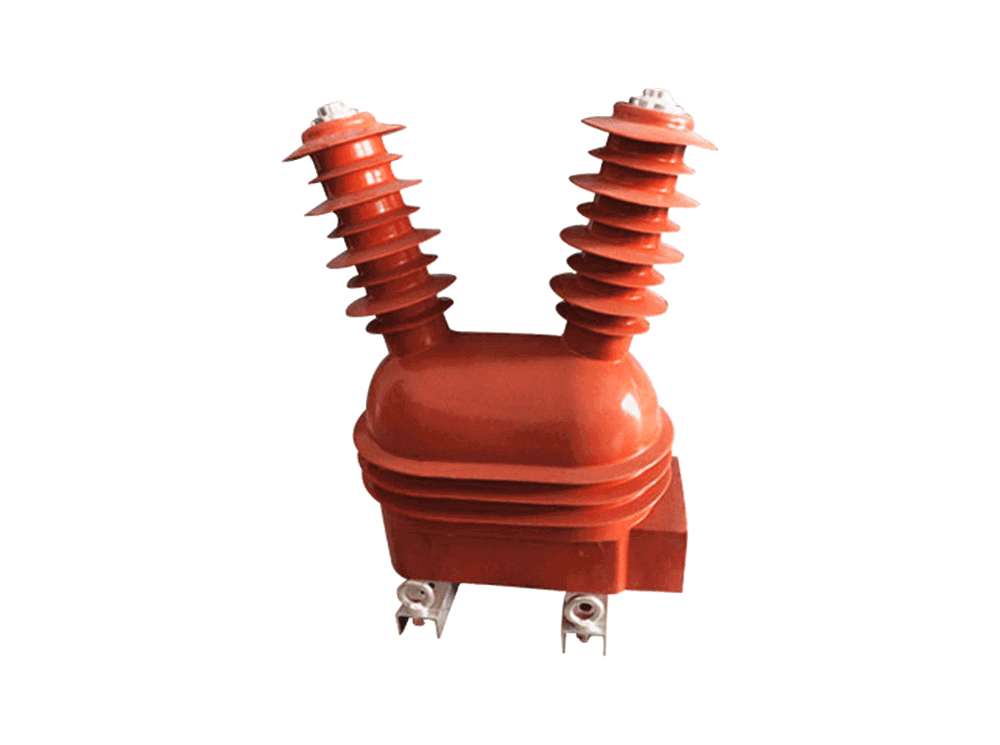

JDZW-3,6,10RGDOUBLE POLE SILICON RUBBER 11KV OUTDOOR VOLTAGE TRANSFORMER
- • Outdoor type 12KV
- • With fuse protection
- • Good creepage distance
- • 0.2 0.5 1 3 3P 6P class
- • High quality silicon steel
- • IEC 61869-1,3 or IEC60044-2

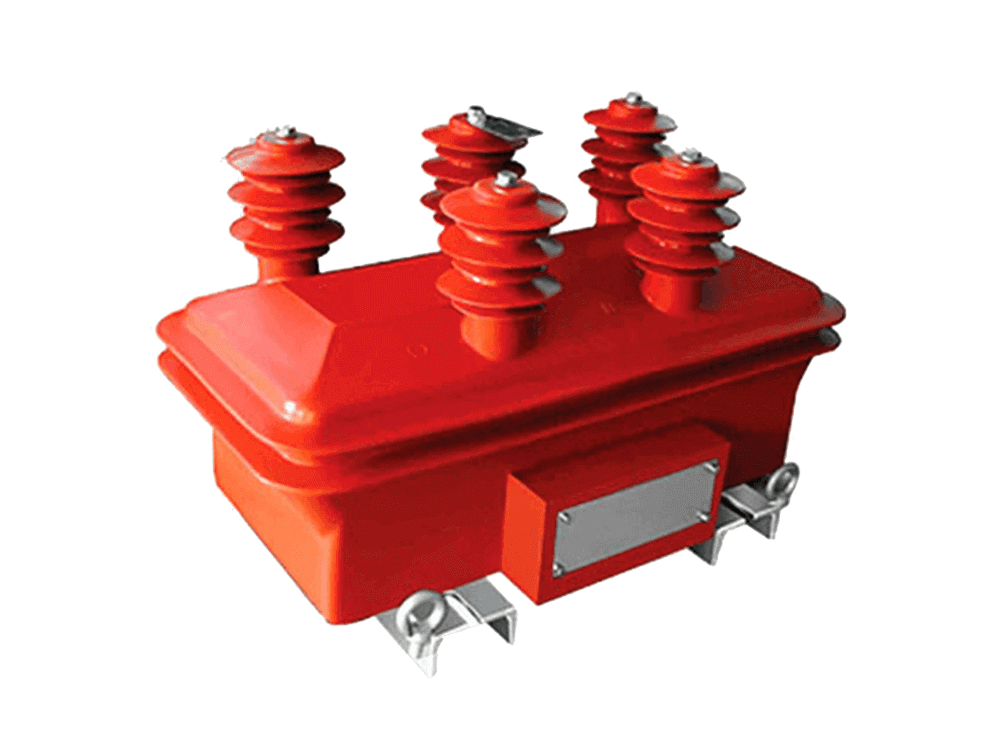

GFJSZW-3,6,10WFFIVE POLE OUTDOOR THREE PHASE VOLTAGE TRANSFORMER
- • Multi ratio PT
- • Weight: 155KG
- • High quality silicon steel
- • With zero phase function
- • 6KV 10KV 12KV Outdoor
- • IEC 61869-1,3 or IEC60044-2
- • Surface creepage distance: 840mm
GFJZFW-24W324KV MULTI WINDINGS HIGH ACCURACY OUTDOOR POTENTIAL TRANSFORMER
- • BIL up to 200kV
- • Rated Voltage 20KV
- • Material:Epoxy (HCEP)
- • Accuracy class: 0.2 0.5
- • Indoor and outdoor designs
- • 500VA Limiting Therminal Output
