GF438II 1000V 6000A PQA Portable Three-Phase Power Quality AnalyzerMarch. 6, 2025

The GF438II 1000V 6000A PQA Portable Three-Phase Power Quality Analyzer is a cutting-edge device designed for comprehensive power quality analysis in three-phase electrical systems. With its ability to handle high voltage (up to 1000V) and high current (up to 6000A), this portable analyzer is ideal for monitoring, analyzing, and diagnosing power quality issues in various industrial, commercial, and utility applications. The GF438II provides real-time data collection and in-depth analysis, ensuring reliable operation, energy efficiency, and compliance with power quality standards.
Key Features:
1. High Voltage and Current Capacity: The GF438II can measure voltages up to 1000V and currents up to 6000A, making it suitable for high-power applications in industrial and power distribution systems. This high capacity ensures accurate monitoring of large electrical systems.
2. Comprehensive Power Quality Analysis: This analyzer provides in-depth analysis of key power quality parameters such as voltage, current, power factor, harmonics, flicker, frequency, and unbalanced loads. It helps identify power disturbances such as voltage sags, spikes, harmonics, and flicker, which can impact the efficiency and reliability of electrical equipment.
3. Portable and Easy to Use: Designed for portability, the GF438II is lightweight and easy to carry to various sites, making it ideal for on-site power quality monitoring and troubleshooting. The user-friendly interface ensures quick setup and easy operation, even for technicians with minimal experience.
4. Real-Time Monitoring: The GF438II allows for real-time power quality monitoring, providing immediate insights into the electrical system's performance. It displays real-time data on voltage, current, and power quality parameters, enabling operators to make informed decisions quickly.
5. Data Logging and Reporting: The analyzer includes data logging capabilities that allow users to record and store power quality data over extended periods. The stored data can be analyzed for trends, reports, and troubleshooting, aiding in preventive maintenance and compliance with industry standards.
6. Harmonics and Distortion Measurement: The GF438II features advanced harmonic analysis, harmonics range is up to 63rd. helping to measure harmonics and total harmonic distortion (THD) in both voltage and current. This is crucial for diagnosing power quality issues and ensuring compliance with power quality standards (e.g., IEEE, IEC).
7. Wide Range of Applications: The GF438II is perfect for a wide range of applications, including industrial machinery, power distribution networks, energy management systems, renewable energy installations, and electrical equipment diagnostics. It helps ensure that power systems run efficiently and within safe operating limits.
8. Real-Time and Historical Analysis: With both real-time monitoring and historical analysis capabilities, the GF438II helps identify short-term and long-term power quality issues, allowing users to address problems promptly and efficiently.
Applications:
1. Power Quality Monitoring: Used to analyze and monitor power quality in industrial plants, commercial buildings, and electrical grids, ensuring compliance with power quality standards.
2. Energy Efficiency Optimization: Helps diagnose inefficiencies in electrical systems, identify areas for improvement, and enhance energy efficiency.
3. Harmonics Analysis: Measures and analyzes harmonics and THD to prevent equipment malfunction and improve system performance. 4. Electrical Troubleshooting and Maintenance: Enables maintenance personnel to quickly identify and troubleshoot power quality issues in electrical systems.
Our GF438II 1000V 6000A PQA Portable Three Phase Power Quality Analyzer has been sold nationwide and plays an important role in various projects.
The GF438II 1000V 6000A PQA Portable Three-Phase Power Quality Analyzer is a powerful, portable tool for real-time monitoring, diagnosing, and analyzing power quality issues in three-phase electrical systems. With its high voltage and current capacity, advanced harmonic analysis, and user-friendly interface, the GF438II is perfect for industrial, commercial, and utility applications. It provides accurate and comprehensive insights into power quality, helping to improve system reliability, optimize energy efficiency, and ensure compliance with power quality standards. Whether used for routine monitoring or troubleshooting, the GF438II is an essential tool for maintaining the health and efficiency of electrical systems.
For detailed information, please refer to the relevant links on the official website：https://www.gfuvegroup.com/power-quality-analyzer/three-phase-power-quality-analyzer.html

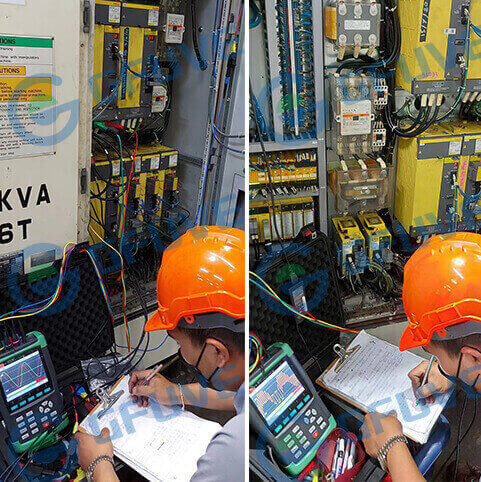

On site test image 1 On site test image 2
