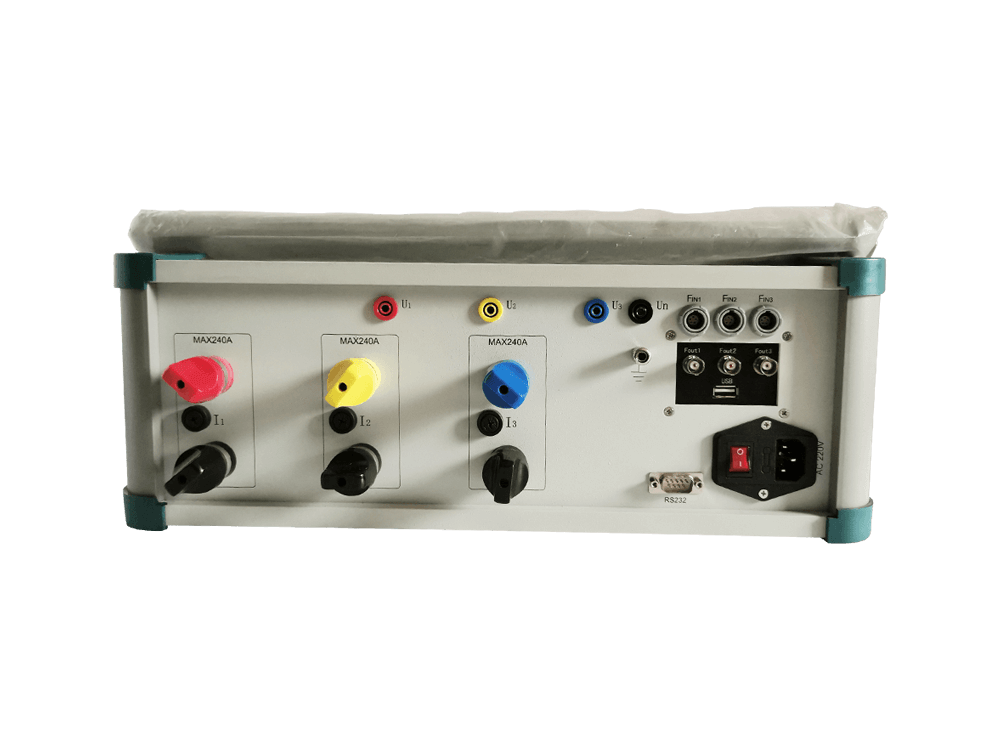

GF333V2 three phase reference energy meter is a reference standard with the characteristics of wide-range, multifunction and high-precision. It has accuracy class of 0.01 or 0.02. By adopting techniques of DSP, embedded system and automatic temperature balancing and other compensation, it has not only advantages of light weight, small size, high precision, high performance, powerful function, original interface, ease-to-use, but also work stability. It has been designed for universal laboratory and test applications and is intended for checking and the calibration of reference standards for electrical power and energy. In addition, it can be integrated into meter or reference standard test systems of higher accuracy.
This model GF333V2 reference standard can be widely used in fields of electric energy measuring, electric energy laboratories and other relevant industry, not only in laboratories but also at the industrial field.
■ Power plant;
■ AMI design center;
■ Energy meter R & D;
■ Electrical laboratory;
■ Watt-hour meter factory;
■ Metrological service center;
■ Electricity meter manufacturers
■ Laboratories of power utilities;
■ Meter test bench integrated factory;
■ Electricity power bureau & power company;
■ National Metrology and testing department;
■ Electrical Department of industrial and mining enterprises;
■ IEC60736 standard;
■ ISO17025 lab standard;
■ Vector diagram function;
■ Wide range 0-600V/0-240A;
■ With Clamp on ct optional;
■ With PC software optional;
■ Waveform display function;
■ Suit for testing in the lab;
■ Measuring 2nd~63rd harmonics;
■ Energy accumulating function;
■ High stability, high reliability;
■ Pulse constant can be programmable;
■ As a three phase reference standard;
■ High resolution 7 inch touch TFT LCD;
■ Metal structure, strong and reliable;
■ High accuracy class up to 0.01% or 0.02%;
| Electrical parameters | |
|---|---|
| Accuracy class | 0.01% or 0.02% |
| Power supply | 220V±10%, 50/60Hz |
| Power consumption | 30VA |
| Voltage measurement | |
| Range | 0-600.000V |
| Error | ±0.005% (30V-600V) ±0.05% (5V-40V) |
| Harmonic | 2nd-64th |
| Current measurement | |
| Range (direct connection) | 1mA-120.000A; 1mA-240.000A |
| Error (direct connection) | ±0.005% (10mA-120A) or (10mA-240A); ±0.02% (1mA-10mA) |
| Harmonic | 2nd-64th |
| Range (Clamp on ct) optional | 10mA-120.000A; 10mA-1000.00A; 1A-3000.00A optional |
| Error (Clamp on ct) | ±0.1% (10mA-120A) or (10mA-1000A); |
| Power measurement error | |
| Active power | ±0.01% (0.01A-120A) or (0.01A-240A) ±0.02% (0.001A-0.01A) |
| Reactive power | ±0.05% (1mA-120A) or (1mA-240A) |
| Energy measurement error | |
| Active energy | ±0.01%(10mA-120A) or (10mA-240A) ±0.05% (0.001A-0.01A) |
| Reactive energy | ±0.05% (1mA-240A) |
| Phase angle | |
| Range | 0°-360.000° |
| Resolution | 0.001° |
| Error | ±0.005° |
| Power factor | |
| Range | -1.00000-0-1.00000 |
| Resolution | 0.00005 |
| Error | 0.00001 |
| Frequency | |
| Range | 40.0000-70.0000Hz |
| Resolution | 0.00001 |
| Error | ±0.0002 |
| Pulse output | |
| Output channel | 3 |
| Energy constant | 1-9999999 |
| Pulse ratio | 1:1 |
| Output level | 5V |
| Output rated frequency | 60KHz, max 86.4KHz |
| Pulse input | |
| Input channel | 3 |
| Input level | 3-12V |
| Min. pulse width | 200ns |
| Min. pulse interval | 200ns |
| Input frequency | Max. 2.1MHz |
| Function | |
| LCD Display | 7" inch 800x480 pixel touch TFT |
| Vector diagram | Yes |
| Waveform | Yes |
| Energy accumulation | Yes |
| Self-calibration | Yes |
| Data storage | Yes |
| PC software | Optional |
| Communication port | RS232, USB |
| Standard | |
| Standard | IEC 62053-21,22, 23; IEC 60736; ANSI C12.20-2002; JJG 597-2005; JJG596-2012; JJG 1085-2013; JJF 68-2019; DL/T 826-2002; DL/T 1478-2015; DL/T 448-2016 |
| Safety | |
| Isolation protection | IEC 61010-1:2001 |
| Measurement Category | 300 V CAT III, 600 V CAT II |
| Degree of protection | IP40 |
| Declaration of conformity | CE & CNAS certified |
| Mechanical parameters | |
| Dimensions (W×H×D) (mm) | 445×220×152 |
| Weight (kg) | ≤7.2 |
| Environmental conditions | |
| Ambient temperature | 0°C to 40°C |
| Storage temperature | -20°C to 65°C |
| Relative humidity | 10%-85% |
| Temperature coefficient | ≤0.0002% /℃ |
| Influence of external fields | ≤0.05 %/mT |
