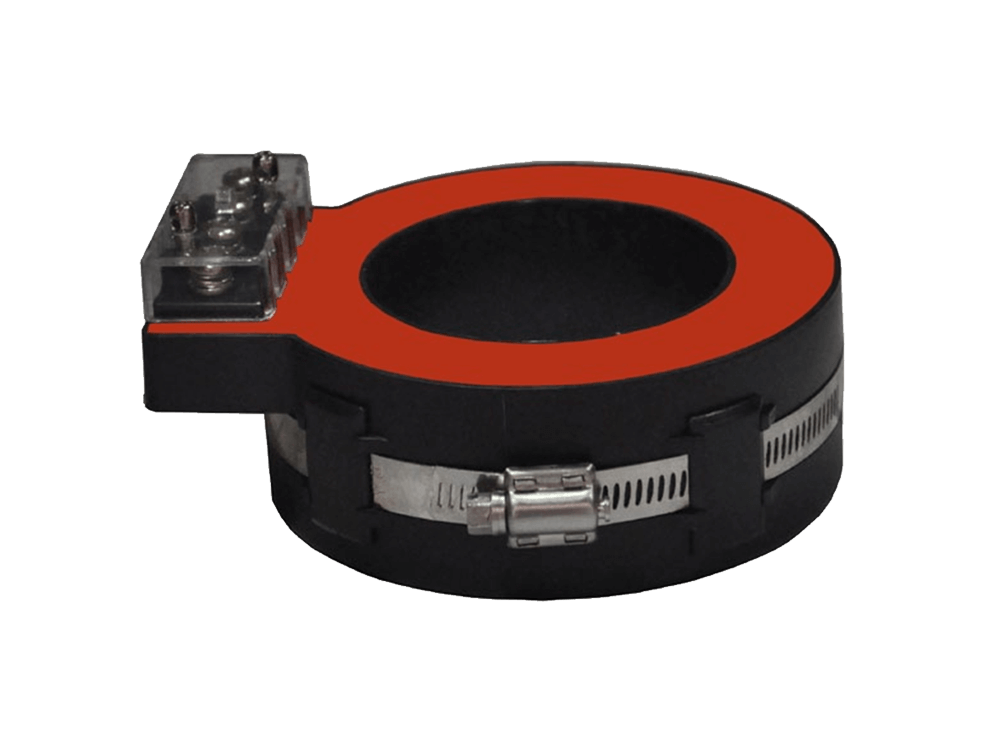

The Model LZCK2500-10 zero phase ct is a ring type resin casting split core current transformer. Some clients also called it as TTCC. This model can be used both for measurement and microcomputer protection of electrical equipment in 11KV and 35KV AC power system of ring network switchgears such as ABB-Safe Ring/Safe Plus...and cable distribution boxes.
We used imported silicon material and using our mature advanced producing technology we make sure our transformer has very goog linear and more than 20 years using life in order to be qualified with all the jobs. The semicircular ring core and secondary windings are vacuum poured by insulated resin. All of our current transformers are strictly comply IEC60044-1, IEC 61869-2, NTC 2205, GB1208-2006, GB20840.2-2013, ANSI/IEEE C57.13.
■ Power Meter;
■ Energy meter;
■ MV switchgears;
■ Air switch cabinet;
■ Distribution boxes;
■ Power Quality meter;
■ Ring network cabinet;
■ Measuring instrument;
■ Protective relay device;
■ Current load monitoring;
■ Low voltage metering system;
■ Distribution Power transformer monitor system;
■ Support Dual Ratio;
■ Size:φ120xφ185x100;
■ High precision 0.5S or 0.5;
■ Using life more than 20 years;
■ Measurement range 0-2000A AC;
■ Easily installation, with mounting bracket;
■ High magnetic conductivity silicon steel material;
■ Holding wire diameter: φ120mm, 140mm, 160mm;
■ Secondary windings are vacuum poured by insulated resin;
■ IEC60044-1; IEC 61869-2; ANSI C57.13; NTC 2205; GB1208-2006;
| Technical parameters | |
|---|---|
| Standards | IEC60044-1; IEC 61869-2; NTC 2205; ANSI/IEEE C57.13; GB1206-2006; |
| Rated primary current | 50-2000A |
| Rated load | ≤25VA |
| Rated frequency | 50Hz or 60Hz |
| Rated secondary current | 5A or 1A |
| Rated short-time thermal current | 40kA, 1S |
| Rated continuous thermal current | 120%I1n |
| Secondary winding power frequency withstand voltage | 3kV, 1min |
| Instrument security factor | FS≤10 |
| Insulation Class | E |
| Material | polyurethane +Silicon steel sheets+Enameled wire+ABS |
| Mechanical parameters | |
| Dimensions (W×D×H) (mm) | φ120xφ185x100 |
| Jaw cable diameter(mm) | 120, 140, 160 |
| Weight (kg) | 7, 8, 9 |
| Working conditions | |
| Operating temperature | -40°C to +70°C |
| Daily average temp | <+40°C |
| Storage temperature | -40°C to +70°C |
| Altitude | <3500 meters |
| Condition | No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current. |
| Type | LZCK2500-10 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Purpose | Measuring current transformer | Protection current transformer | Double winding current transformer | |||||||
| Ratio | Accuracy class and rated load(VA) | Accuracy class and rated load(VA) | Composite accuracy class and rated load (VA) | |||||||
| I1/I2 | 0.5 | 1 | 3 | 10P15 | 10P10 | 10P5 | 0.5 | 1 | 10P10 | 10P5 |
| 100/1 | 2 | 2.5 | 5 | 2 | 2.5 | 5 | 2 | 2.5 | 1.5 | 2 |
| 200/1 | 2 | 2.5 | 5 | 3 | 5 | 7.5 | 2.5 | 2.5 | 2 | 2 |
| 300/1 | 2.5 | 3.75 | 5 | 3 | 5 | 7.5 | 3.75 | 3.75 | 2.5 | 2.5 |
| 400/1 | 2.5 | 5 | 10 | 3 | 5 | 10 | 5 | 5 | 2.5 | 2.5 |
| 500/1 | 2.5 | 5 | 10 | 3.75 | 6.25 | 10 | 5 | 5 | 2.5 | 2.5 |
| 600/1 | 5 | 7.5 | 10 | 5 | 7.5 | 10 | 5 | 5 | 5 | 5 |
| 750/1 | 5 | 7.5 | 10 | 5 | 5 | 5 | 5 | |||
| 800/1 | 5 | 10 | 15 | 5 | 5 | 5 | 5 | |||
| 1000/1 | 5 | 10 | 15 | 5 | 5 | 5 | 5 | |||
| 50/5 | 2.5 | 2 | ||||||||
| 75/5 | 2.5 | 2.5 | ||||||||
| 100/5 | 2.5 | 2.5 | 2.5 | 2.5 | ||||||
| 200/5 | 2.5 | 5 | 2.5 | 5 | 2.5 | |||||
| 300/5 | 5 | 5 | 5 | 2.5 | 5 | 7.5 | 5 | 5 | 2 | 2.5 |
| 400/5 | 5 | 5 | 5 | 2.5 | 5 | 7.5 | 5 | 7.5 | 2.5 | 5 |
| 500/5 | 5 | 7.5 | 10 | 5 | 7.5 | 10 | 5 | 7.5 | 2.5 | 5 |
| 600/5 | 5 | 7.5 | 10 | 5 | 7.5 | 10 | 5 | 10 | 2.5 | 5 |
| 750/5 | 7.5 | 10 | 15 | 5 | 10 | 10 | 7.5 | 10 | 2.5 | 5 |
| 800/5 | 7.5 | 10 | 15 | 5 | 10 | 10 | 7.5 | 15 | 2.5 | 5 |
| 1000/5 | 10 | 15 | 20 | 10 | 10 | 10 | 10 | 15 | 2.5 | 5 |
| 1200/5 | 10 | 15 | 20 | 10 | 10 | 10 | 10 | 15 | 2.5 | 5 |
| 1500/5 | 10 | 15 | 20 | 10 | 10 | 10 | 10 | 15 | 2.5 | 5 |
| 1600/5 | 20 | 25 | 30 | 10 | 10 | 10 | 10 | 15 | 2.5 | 5 |
| 2000/5 | 20 | 25 | 30 | 10 | 10 | 10 | 10 | 15 | 2.5 | 5 |
| Model | Primary rated current | Rated load | Aperture (mm) | Description (mm) | Weight (kg) |
|---|---|---|---|---|---|
| LZCK310-10 | 300-1000A | ≤10VA | φ50 | φ50 x φ110 x 32 | 1 |
| LZCK322-10 | 30-1000A | ≤10VA | φ50 | φ50 x φ110 x 52 | 1.6 |
| LZCK350-10 | 30-1000A | ≤25VA | φ50 | φ50 x φ110 x 105 | 3.1 |
| LZCK720-10 | 30-1000A | ≤25VA | φ80 | φ80 x φ110 x 50 | 2.1 |
| LZCK2500-10 | 30-3000A | ≤30VA | φ120，140，160 | φ120 x φ185 x 100 | 7 |
| LZCG530-10 | 30-1000A | ≤20VA | φ45 | φ45 x φ120 x 65 | 2.1 |
| LZCG930-10 | 30-1500A | ≤25VA | φ60 | φ60 x φ155 x 60 | 3.6 |
| LZCT722-10 | 30-1500A | ≤10VA | φ82 | φ82 x φ130 x 55 | 2.3 |
| LZCG2500-10 | 30-3000A | ≤30VA | φ120，140，160 | φ120 x φ185 x 100 | 7 |
