CT PT analyzer features03-03, 2025

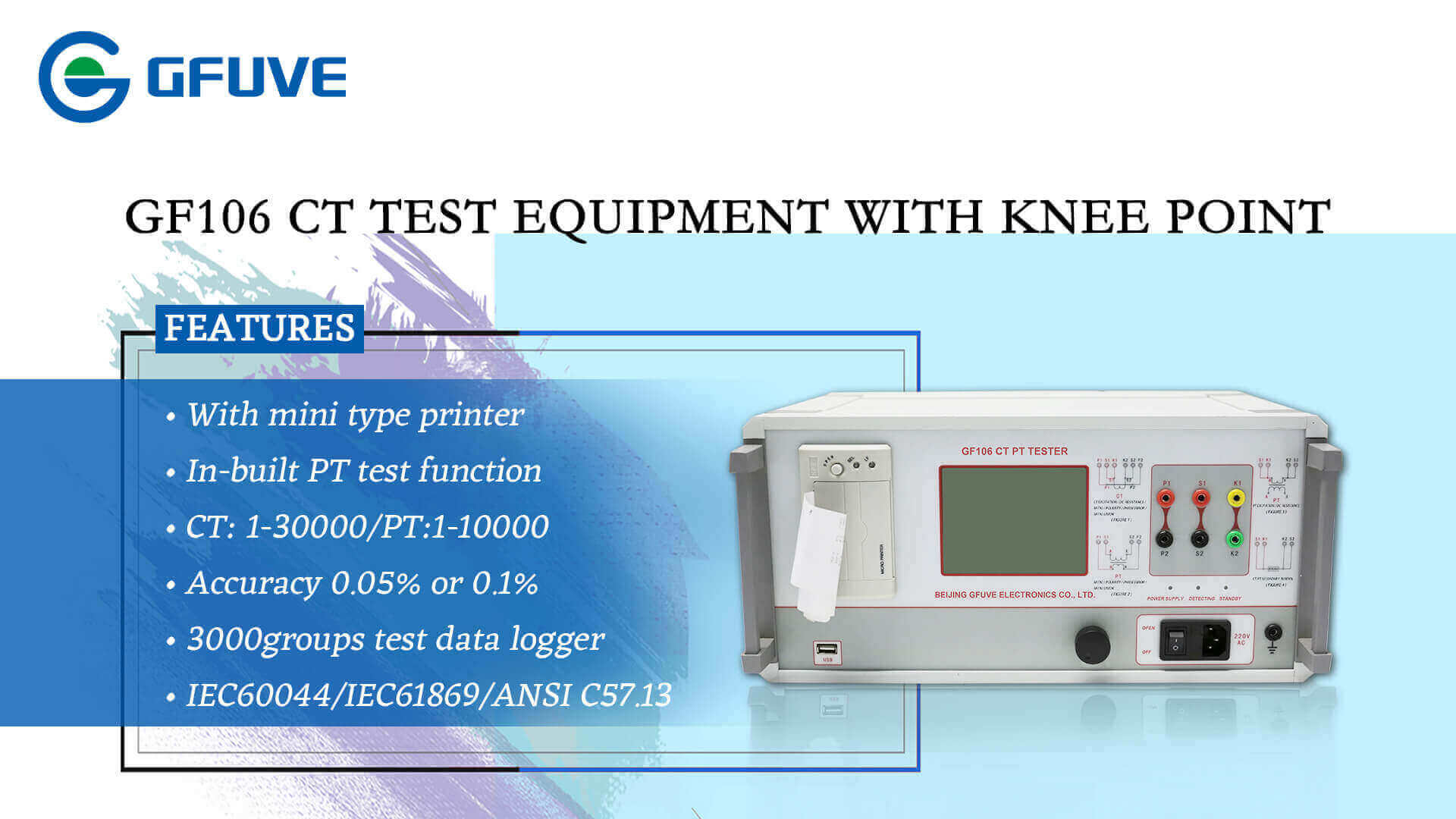

CT PT characteristic comprehensive tester is a fully automated PT, CT characteristic test instrument, the instrument can complete the test includes: CT voltammetry characteristic test, PT voltammetry characteristic test, CT polarity test, PT polarity test, CT variable ratio polarity test and PT variable ratio polarity test, automatically calculate the arbitrary point error curve of CT, CT/PT variable ratio difference and other result parameters.
The instrument has the following characteristics:
1. The instrument is safe and convenient to operate, full microcomputer device, built-in imported high-performance CPU, high reliability, after setting the test value according to the interface prompt, there is no need to manually contact the tested equipment, the instrument automatically completes the test, so that the test personnel are away from the high-voltage circuit, to ensure their personal safety.
2. Large output capacity, the maximum output voltage of the volt-ampere characteristic test is up to 1000V, the maximum current of the variable ratio test is up to 600A, and the output capacity of the instrument is 5KVA.
3. Optional accessories include external booster, external current booster, external voltage regulator, the maximum voltage of external booster can be up to 2000V, 3A, external current booster can be up to 1000A, the maximum output of external voltage regulator can be up to 1500V, 20A, when using external booster, the maximum volt-ampere characteristic test of 500KV grade 1A current transformer can be done.
4. Large screen 320*240 dot matrix Chinese character graphical interface, after the completion of the test can directly display the voltammetry curve, the graphics are clear, beautiful, easy to analyze, comes with a micro printer, can print curves and test results at any time.
5. The instrument uses a rotating mouse as an input device, easy to operate and long service life.
6. The instrument has built-in Flash memory, the data is not lost after the power failure after saving, and the test results can be viewed and printed indoors after the field test is completed.
7. The instrument has RS232 communication interface, which can be connected with the computer through the serial port connection line to realize the communication between the PC and the instrument. The test personnel can use the computer to control the instrument for testing or upload the test data from the instrument. The test data can be exported to EXCEL format for editing.
8. The instrument power supply can achieve AC220V and AC380V adaptive power supply.
