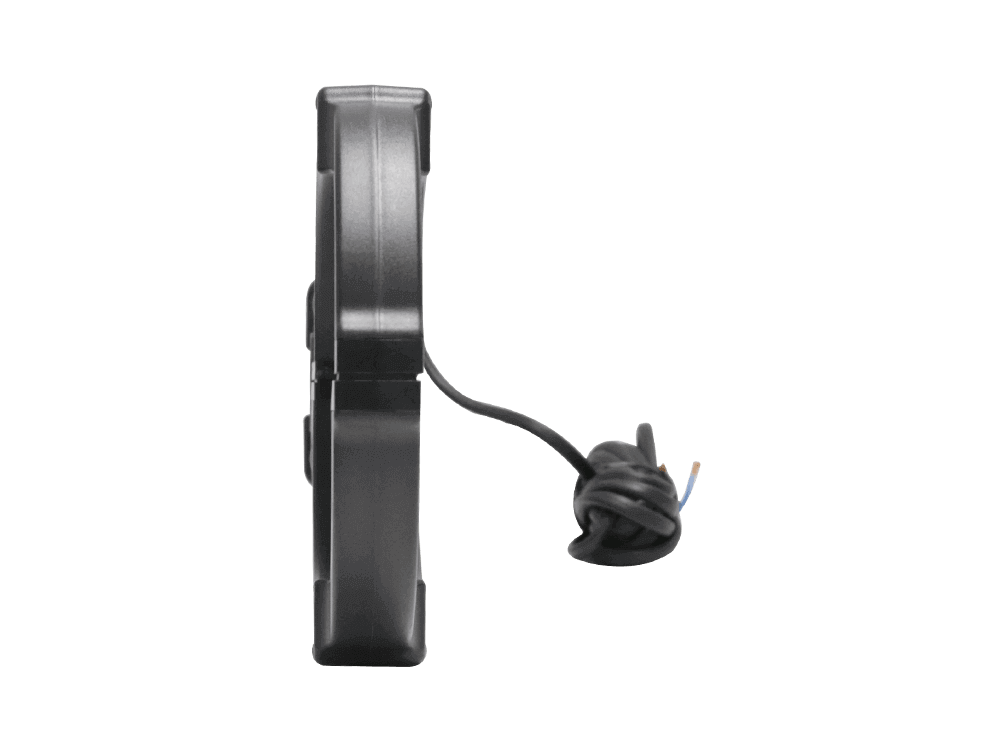

Q125BCABLE TYPE 3000A AC CURRENT SENSOR CLAMP WITH 5A OUTPUT

The Q125B current sensor clamp is a high performance AC Current clamp with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 1000A AC/2000A AC/3000A AC. The Round jaw permits 125mm cable positionings. Provide excellent TRMS capabilities and reliable signal reproduction. It is widely applied in electricity, communication, meteorology, railway, oilfield, construction, measurement, scientific and research teaching unit, industrial and mining enterprises. EN 61010-1, EN 61010-2-032, IEC61869-2 Standard.

Request a quote Download Catalogue video

APPLICATION

■ HVAC;

■ Power meter;

■ Oscilloscopes;

■ Electrical utility;

■ Cable fault tester;

■ Digital multi-meter;

■ Plant maintenance;

■ Electrical Laboratory;

■ Large industrial loads;

■ Power load monitoring;

■ Power quality analyzer;

■ Data logging/recording;

■ Industrial maintenance;

■ Power quality monitoring;

■ Power and harmonic meters;

■ Calibration instrument on site;

■ Measuring around cable bundles;

FEATURES

■ UL, CE CNAS mark;

■ High content permalloy core;

■ Large jaw opening designed;

■ Holding wire diameter: φ125mm;

■ Frequency 40Hz-2000Hz Bandwidth;

■ Conforms to EN 61010, 600V CAT III;

■ Measurement range of 1A to 3600A AC;

■ Low phase shift for power measurement;

■ Industrial design & beautiful appearance;

■ Transformation ratio: 1000:5, 2000:5, 3000:5;

■ Improved ergonomic design & easy operation;

■ High precision 0.2% for current measurement;

■ Output:5mA AC/A AC, 2.5mA AC/A AC, 1.666mA AC/A AC;

■ Nominal range: 1 to 1000A AC, 1 to 2000A AC, 1 to 3000A AC

■ Designed for recorders, loggers, oscilloscopes, power and harmonic meters;

PARAMETERS

Electrical parameters
Ratio 1000: 1 or 2000:1 (customized)
Accuracy class 0.2%, 0.5%, 1%
Primary current 0 - 3000A AC
Secondary current 0 - 5A AC (customized)
Max. Cont. Input current 3600A
Over voltage category CAT III 600V
Output signal (AC current) 500mA,1A,2A,5A AC at nominal input current
Output signal (AC voltage) 333mV, 500mV, 1V, 5V AC at nominal input current
Frequency range 40Hz-20KHz
Dielectric strength 3KV 50Hz/60Hz at 1 minute
Temperature range -20°C to +55°C
Output 2.5 meter cable with D01 connector
Max. voltage not insulated conductors 720 V
Standard EN 61010-1, EN 61010-2-032, EN 61010-2-031
IEC60044-1, & IEC61869-2, 600V CAT III
Installation Clamp type
Output mode Lead output (2.5m)
Connector BNC, 4mm banana, signal cable(2 cores),customized
Mechanical parameters
Dimensions (L x W x H) (mm) 180 x 319 x 35
Weight (g) 1100
Holding wire diameter (mm) φ125
Max. jaw opening (mm) 125
Jaw color Black
Material PC+ABS, UL94 V0

SELECTION GUIDE

Model Rate Current Max Current Secondary Coil Ratio Burden Resistance Accuracy
Q125BA5-200 200A 240A 5A 40:1 2.5VA 0.5%
Q125BA5-300 300A 360A 5A 60:1 2.5VA 0.5%
Q125BA5-400 400A 480A 5A 80:1 2.5VA 0.5%
Q125BA5-500 500A 600A 5A 100:1 2.5VA 0.5%
Q125BA5-600 600A 720A 5A 120:1 2.5VA 0.5%
Q125BA5-800 800A 960A 5A 160:1 2.5VA 0.5%
Q125BA5-1000 1000A 1200A 5A 200:1 2.5VA 0.5%
Q125BA5-1500 1500A 1800A 5A 300:1 2.5VA 0.5%
Q125BA5-2000 2000A 2400A 5A 400:1 2.5VA 0.5%
Q125BA5-3000 3000A 3600A 5A 600:1 2.5VA 0.5%
Q125BA1-100 100A 120A 1A 100:1 customized 0.2%
Q125BA1-200 200A 240A 1A 200:1 customized 0.2%
Q125BA1-300 300A 360A 1A 300:1 customized 0.2%
Q125BA1-400 400A 480A 1A 400:1 customized 0.2%
Q125BA1-500 500A 600A 1A 500:1 customized 0.2%
Q125BA1-600 600A 720A 1A 600:1 customized 0.2%
Q125BA1-800 800A 960A 1A 800:1 customized 0.2%
Q125BA1-1000 1000A 1200A 1A 1000:1 customized 0.2%
Q125BA1-2000 2000A 2400A 1A 2000:1 customized 0.2%
Q125BA1-3000 3000A 3600A 2A 1500:1 customized 0.2%
Q125BA2-500 500A 600A 250mA 2000:1 customized 0.2%
Q125BA2-1000 1000A 1200A 500mA 2000:1 customized 0.2%
Q125BA3-500 500A 600A 200mA 2500:1 customized 0.2%
Q125BA3-1000 1000A 1200A 400mA 2500:1 customized 0.2%
Q125BA4-250 250A 300A 250mA 1000:1 customized 0.2%
Q125BA4-500 500A 600A 500mA 1000:1 customized 0.2%
Q125BA4-1000 1000A 1200A 250mA 4000:1 customized 0.2%
Notes: Can be customized current probe according to user requirements!
