S type and P type, Q type AC Current Clamp are designed to extend the current measuring capabilities of DMMs or BNC, power instruments, oscilloscopes, hand-held scopes, recorders or loggers, clamp type grounding resistance tester， double clamp phase angle meter, energy meter calibrator and other diverse instruments.
The current clamp is placed around the current-carrying conductor to perform non-contact current measurements without interrupting the circuit under test. The clamp outputs current or voltage signals directly proportional to the measured current, thereby providing current measuring and displaying capabilities to instruments with low current or voltage inputs. When making a measurement, the current-carrying conductor circuit is not broken and remains electrically isolated from the instrument's input terminals. As a result, the instrument's low input terminal may be either floated or earthed. It is not necessary to interrupt the power supply when using a current clamp for taking measurements, so costly downtime can be eliminated.
True RMS measurements within the clamp's frequency response are possible by using most GFUVE AC current clamps with a true RMS multimeter. In most cases, RMS measurements are not limited by the clamps, but by the instrument to which they are connected. Best results are provided by clamps offering inherent high accuracy, good frequency response, and minimal phase shift.
Several GFUVE AC current clamps are patented for their unique circuitry and design.
S501200A 1MV/A AND 1MA/A OUTPUT AC CURRENT CLAMP ON CT
S1203000A CABLE FAULT ANALYSIS CLAMP ON CURRENT TRANSFORMER
P501000A HIGH PRECISION ECONOMIC CLAMP ON CURRETN PROBE

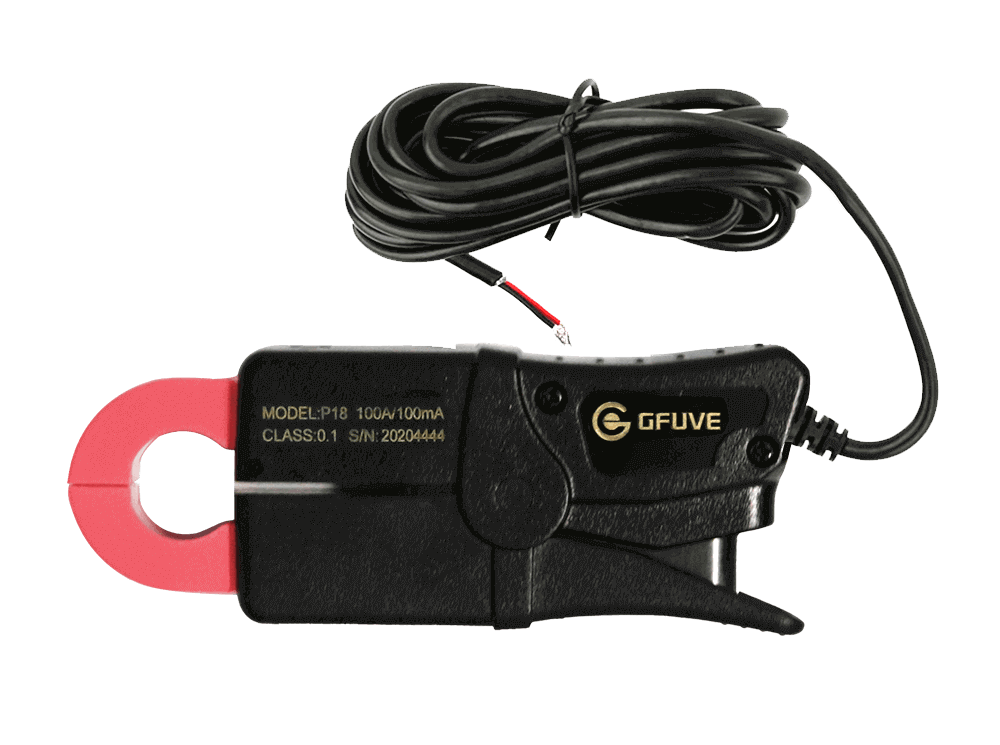

P18200A DOUBLE RATIO VOLTAGE OUTPUT AC CURRENT CLAMP
P1101000A CABLE FAULT ANALYSIS CLAMP CURRENT TRANSFORMER

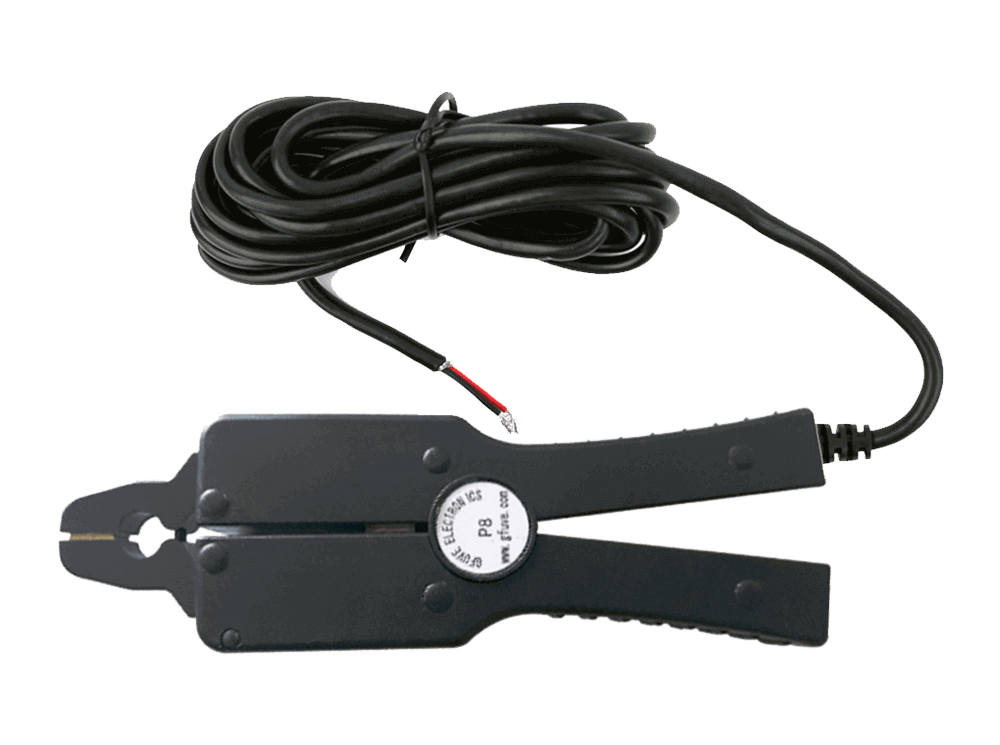

P8WHOLESALE ECONOMIC TYPE 5A AC CURRENT CLAMP CT

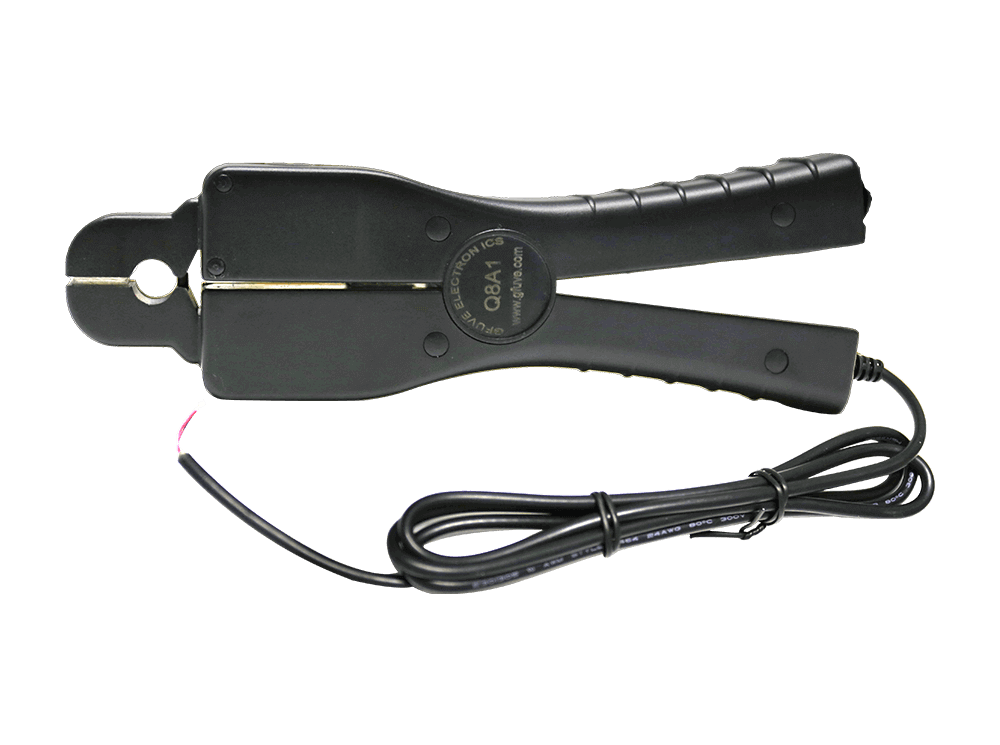

Q8A1HIGH PRECISION NICKEL METAL CORE 5A CLAMP ON CURRENT PROBE

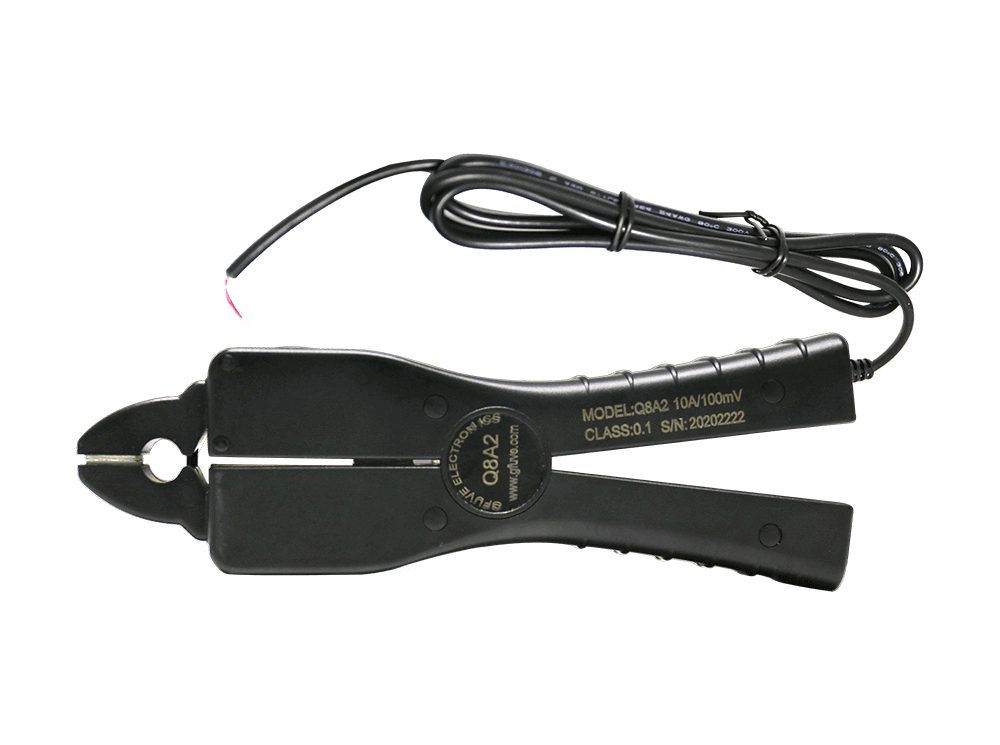

Q8A2HIGH SENSITIVITY 0.1% PERMALLOY CORE 10A AC CURRENT CLAMP CT
HQ155A & 100A HIGH PRECISION CURRENT PROBE SENSOR
Q13MA OUTPUT 100A AC CLAMP ON CURRENT PROBE
XQ13HIGH PERFORMANCE 100A AC AMP CURRENT PROBE CLAMP

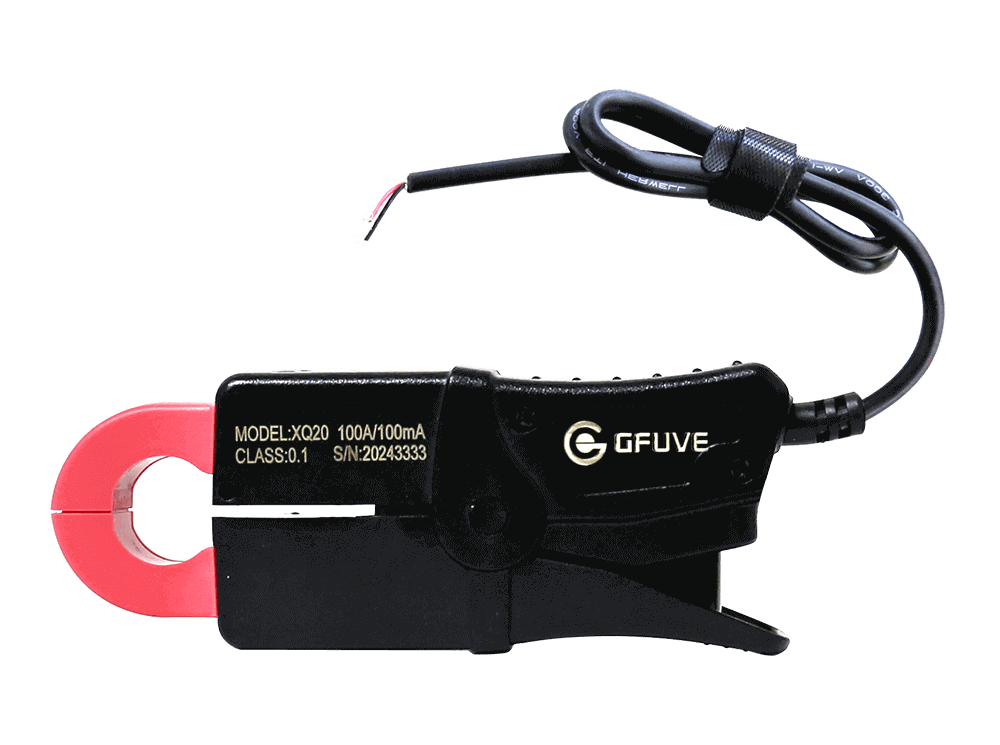

XQ20HIGH PRECISION 200A AC MINI SPLIT CORE CLAMP ON CURRENT SENSOR

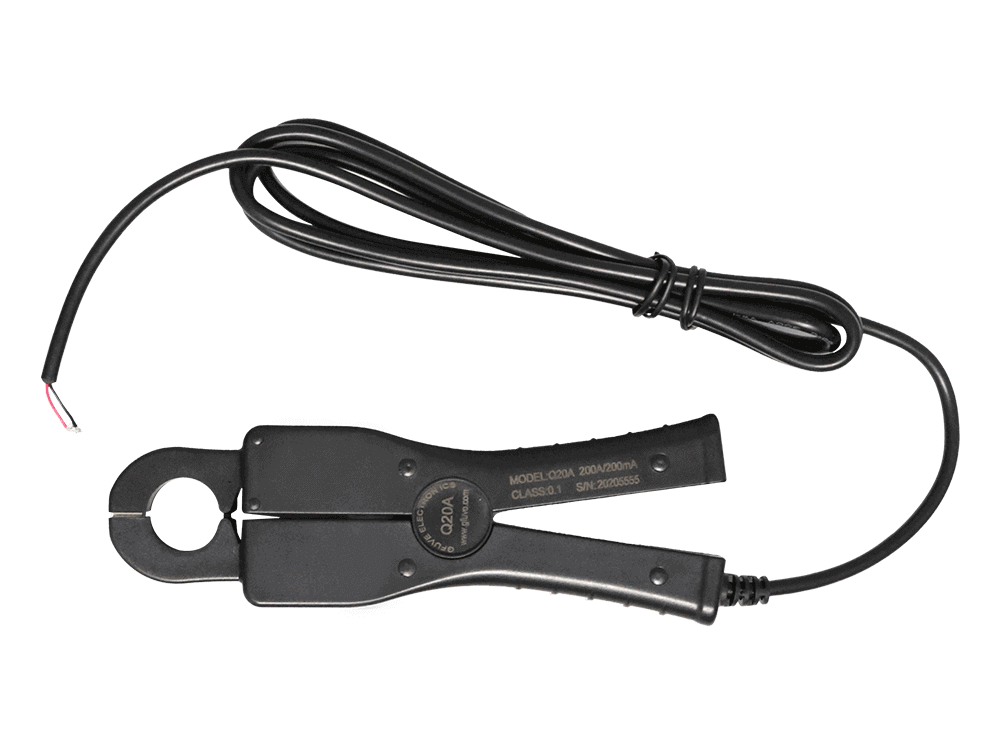

Q20AECONOMIC 2000:1 HIGH ACCURACY MINI 100A CURRENT CLAMP SENSOR

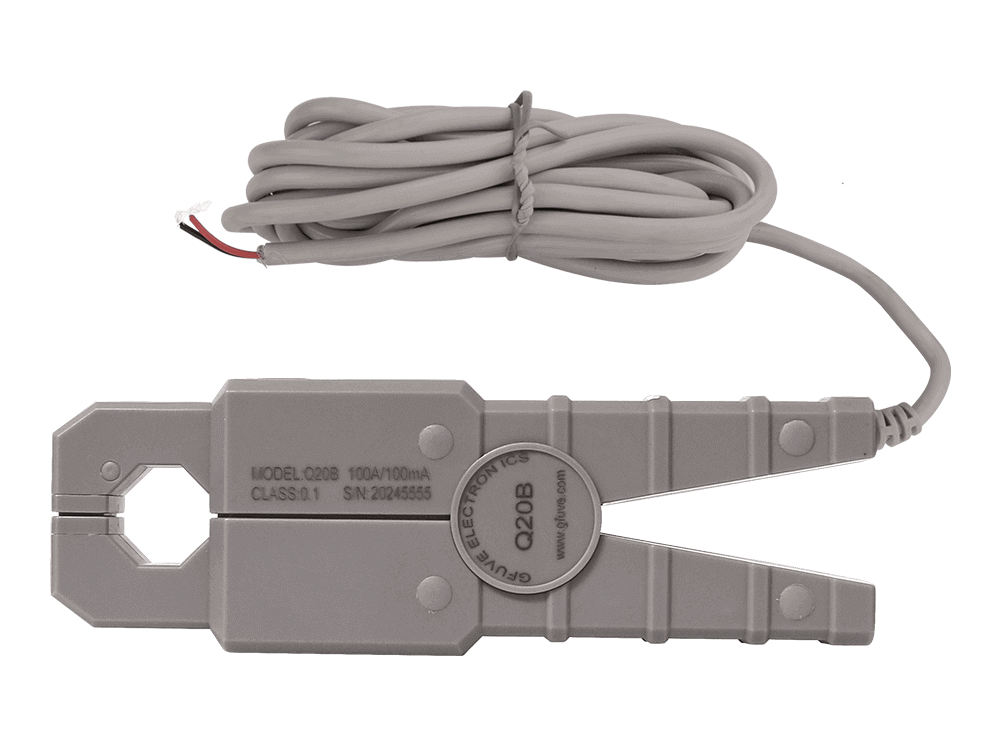

Q20BCHEAP 1000:1 RATIO 100A AC CURRENT CLAMP ON CT
Q40HIGH PERFORMANCE 500A AC CURRETN CLAMP CT SENSOR
Q50A1000A/1A WIDE RANGE MEASURING AC CURRENT PROBE
Q70HIGH PRECISION 1000A CLAMP ON OSCILLOSCOPE CURRENT PROBE

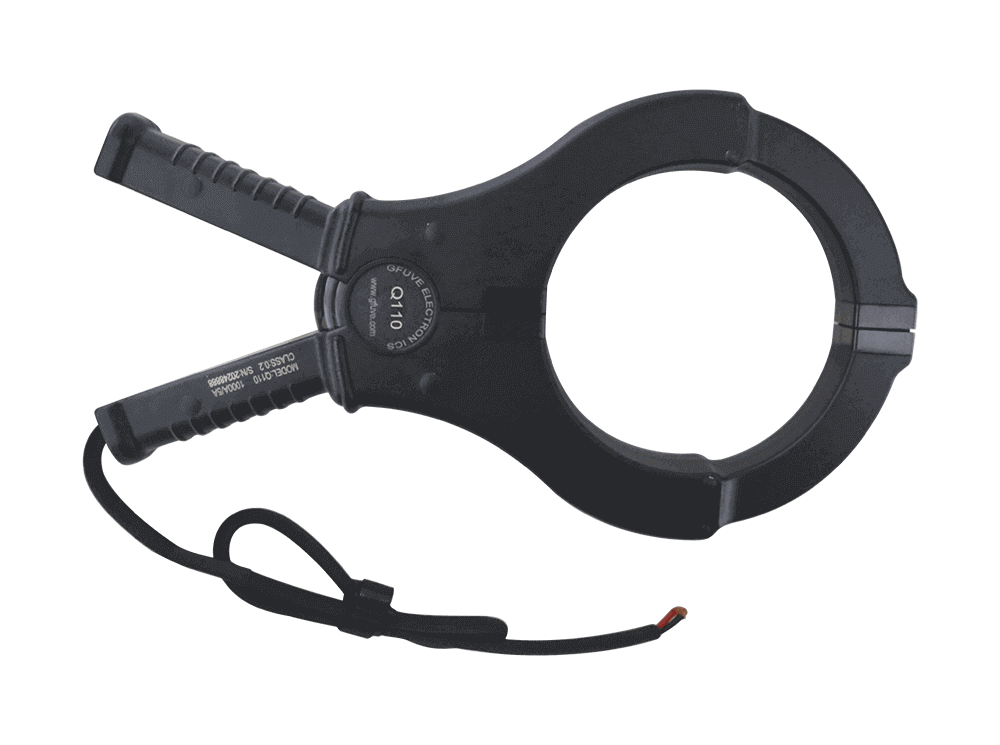

Q110COMPACT RING TYPE 1000/5A MAGNETIC CURRENT CLAMP PROBE
Q125BUS BAR AC 2000A CLAMP ON CURRENT TRANSFORMER

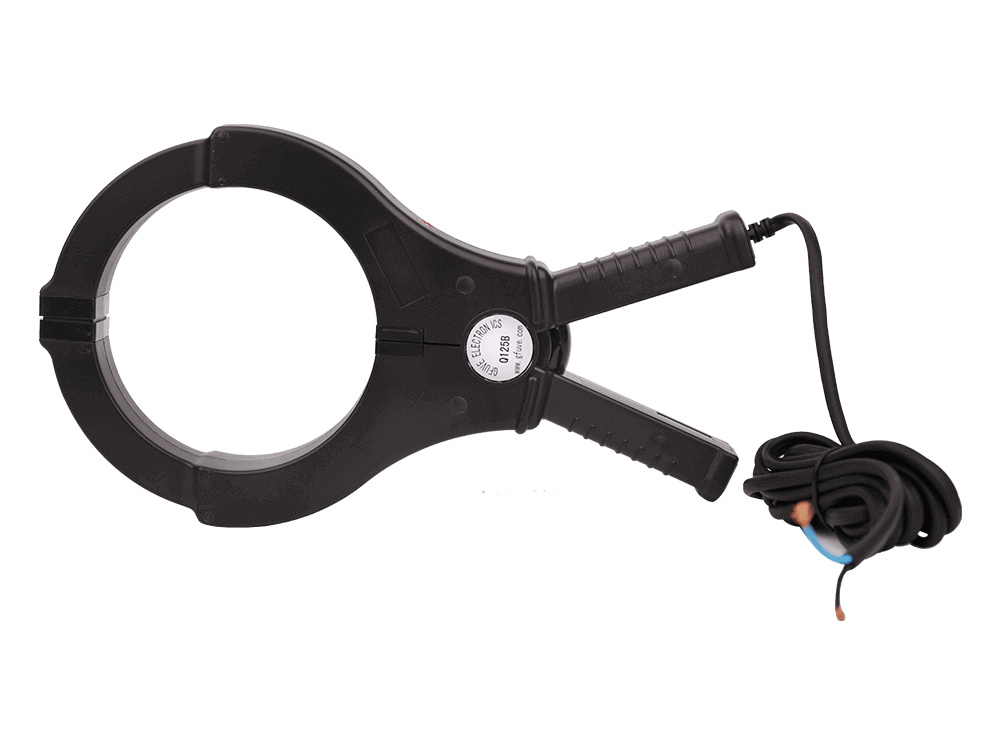

Q125BCABLE TYPE 3000A AC CURRENT SENSOR CLAMP WITH 5A OUTPUT

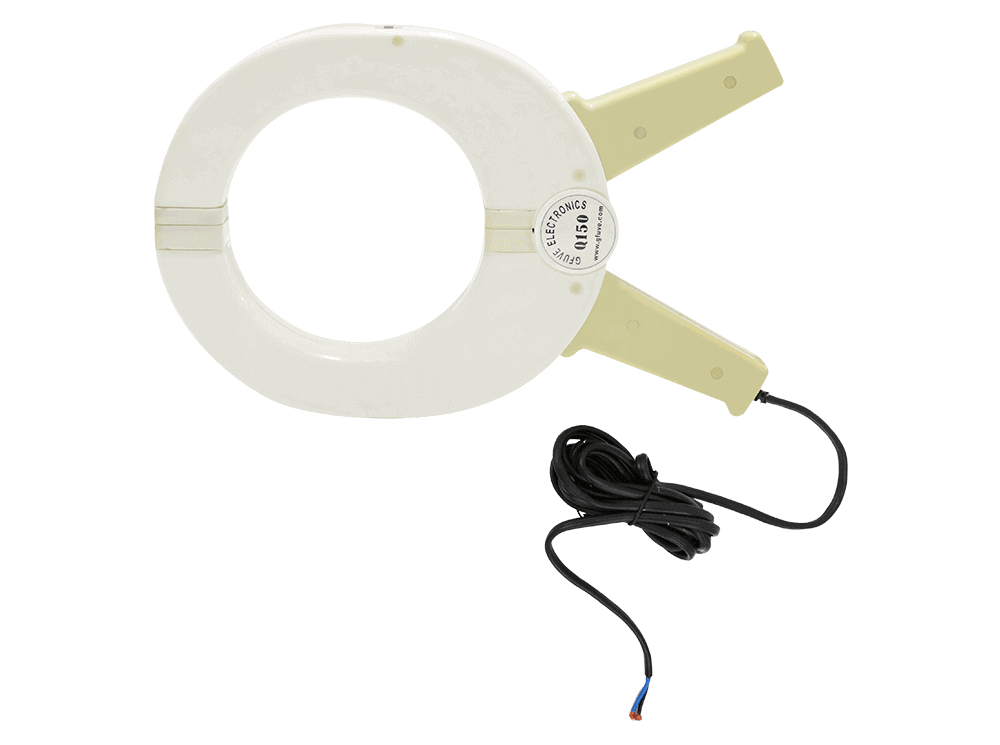

Q150SPLIT CORE 150MM 3000/5A CURRENT TRANSFORMER CLAMP
