208D1000A AC/DC CLAMP ON METER

The 208D clips on ammeter are 6000-count digital clamp on meters with auto range, large LCD, true RMS, auto scale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating and certified by CE/ETL. The 208D come with LoZ mode for eliminating 'ghost 'voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current mode for capturing transient current. The 208D also feature high-precision temperature measurement with 0.1 °C resolution, and can be equipped with a flexible current probe to extend the AC current measurement range to 3000A. EN61010-1 CAT IV 600V, CAT III 1000V.

Request a quote Download Catalogue video

APPLICATIONS

■ Electronic design;

■ Industrial on site;

■ Oil, gas industrial;

■ Communication company;

■ Power quality analysis;

■ Electrical Measurement;

■ Smart Grid Application;

■ Electrical installation;

FEATURES

■ Date indication;

■ Saves measurements;

■ NCV/Function retention;

■ Inrush current capture;

■ True RMS/Auto backlight;

■ 6,000 count LCD display;

■ Battery capacity indication;

■ A/D convert fast sampling time;

■ 40-1kHz frequency (voltage/current);

■ AC, AC V+DC V True-RMS measurements;

■ NCV Multi-Segment Display and audio/visual alarm;

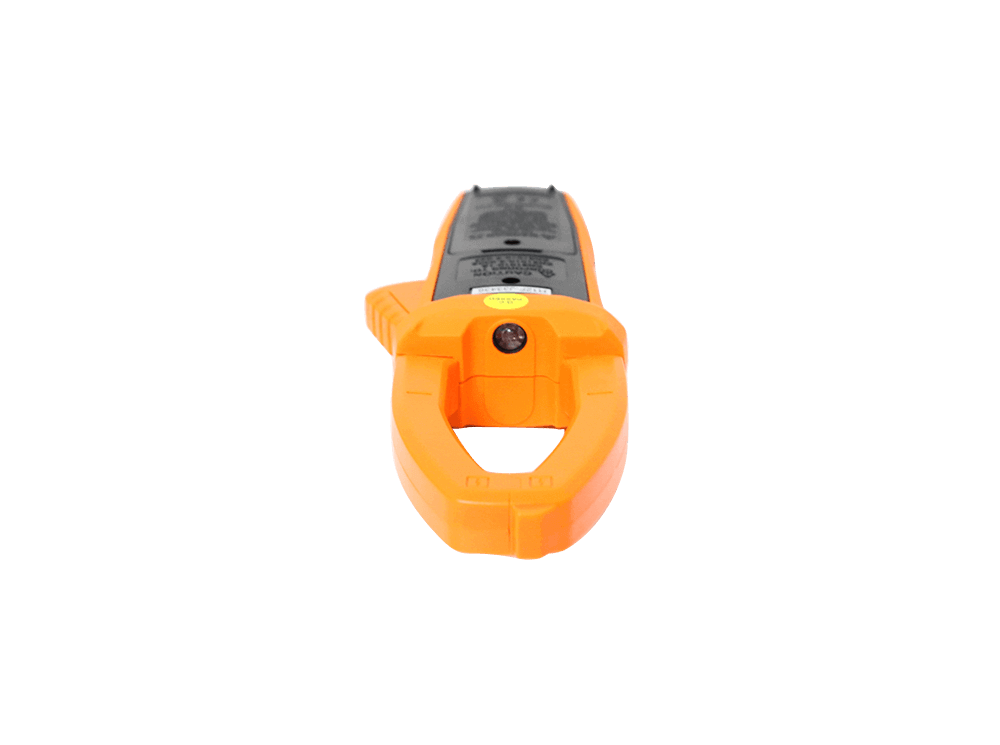

■ Flashlight button: Short press thisbutton to turn on/oﬀ the ﬂashlight;

SPECIFICATIONS

Specifications
AC current (A)	60A/600A/1000A	±(2.5%+8)
DC current (A)	60A/600A/1000A	±(3%+10)
AC current frequency response		10Hz~1kHz
Inrush current (A)	1000A	±(10%+10)
AC voltage (V)	6V/60V/600V/1000V	±(0.8%+5)
DC voltage (V)	6V	±(0.8%+3)
DC voltage (V)	60V/600V/1000V	±(0.5%+5)
Low pas ﬁlter (LPF ACV)	600V/1000V	±(2%+5)
LoZ ACV	600V/1000V	±(2%+5)
Resistance (Ω)	600Ω	±(1%+3)
	6KΩ/60KΩ/600KΩ	±(0.8%+3)
	6MΩ/60MΩ	±(0.8%+3)
Capacitance (F)	60nF	±(4%+25)
	600nF/6μF/60μF/600μF	±(4%+3)
	6mF/60mF	±(10%+9)
Temperature (℃)	-20℃~300℃	±(1%+20)
Temperature (℃)	300℃~1000℃	±(1%+2)
Low voltage frequency (Hz)	10Hz~1KHz	±(0.1%+3)
Duty cycle (%)	10%~90%	±(2.6%+7)
Features
Display count		6000

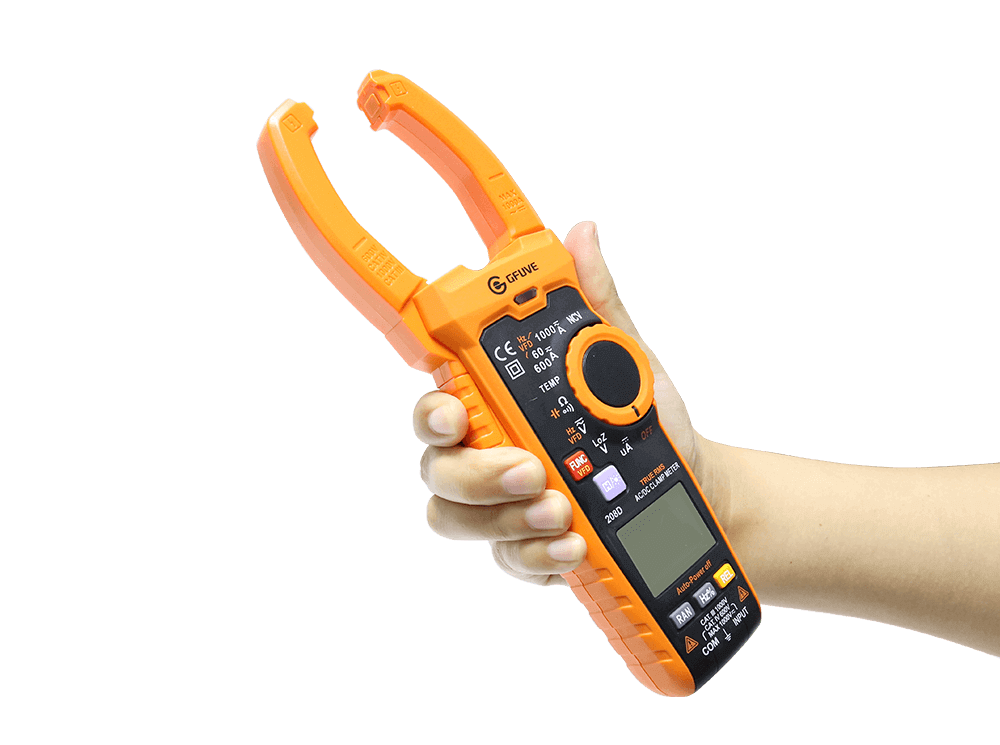

Jaw opening		35mm
Current frequency		50Hz~60Hz
High voltage frequency		40Hz~1KHz
Analog bar		31
Auto power oﬀ		√
Continuity test		√
Auto/Manual range		√
Low battery indication		√
Diode test		√
Relative mode/Data hold		√
MAX/MIN		√
Function selection		√
Flashlight		√
Wake-up function		√
Auto power oﬀ current: ＜50μA		√
Flexible current probe (optional)	Extends to 3000A	√
Zero mode		√
Input impedance (ACV/DCV)	≥10MΩ	√
General Characteristics
Power	1.5V battery (AAA) x 3
Display	43mm x 45mm
Product color	Red and grey
Product net weight	380g
Product size	235mm x 85mm x 40mm
Safety standards	EN61010-1, EN61010-2-032, EN61326, CATIII 1000V
Standard accessories	Test leads, batteries, point contact temperature probe
Standard individual packing	Gift box, carrying bag
Standard quantity per carton	20pcs
Standard carton measurement	700mm x 650mm x 350mm
Standard carton gross weight	About 20kg
