117C 1000V RMS DIGITAL MULTIMETER

>Product>Electrical Test Equipment>Electrical Test Tool>1000v Rms Digital Multimeter

117C1000V RMS DIGITAL MULTIMETER

117C is a high-precision true RMS multimeter, which has AC/DC 1000V voltage measurement, 10A AC/DC current measurement, LPF measurement, VDF function, etc.
The main features are fast response, high precision, small size, and easy operation, and product accuracy can still be guaranteed after a 2-meter drop. It is a good test tool for electronic and electrical engineers.
It is versatile and suitable for various sectors including electric power, communications, meteorology, railways, oil fields, architecture, metrology, academic institutions, and industrial enterprises.

Request a quote Download Catalogue video

APPLICATIONS

■ Electronic design;

■ Industrial on site;

■ Oil, gas industrial;

■ Communication company;

■ Smart Grid Application;

■ Electrical Measurement;

■ Power quality analysis;

■ Electrical installation;

■ institutions of higher education;

FEATURES

■ Drop test: 2m;

■ AC/DC current: 10A;

■ Overload protection;

■ True RMS measurement;

■ AC/DC voltage: 1000V;

■ Audible & Visual Warning;

■ Auto backlight/Flashlight;

■ High-precision: 6000 counts;

■ LoZ, LPF & Auto Volt function;

■ External current clamp supported;

■ Compact design, easy & convenient operation;

SPECIFICATIONS

Specifications
DC voltage	600mV/6V/60V/600V/1000V	±(0.5%+3)
AC voltage (V)	600mV/6V/60V/600V	±(0.8%+5)
AC voltage (V)	1000V	±(1.0%+5)
Resistance (Ω)	600Ω/6KΩ/60KΩ/600KΩ	±(1.0%+3)
Resistance (Ω)	60MΩ	±(2.0%+3)
Capacitance (F)	60nF/600nF/6μF/60μF/600μF/6mF	±(4%+5)
Capacitance (F)	100mF	±(5%+3)
DC current	600uA/6mA/60mA/600mA	±(0.8%+3)
DC current	10A	±(1.2%+3)
AC current	600uA/6mA/60mA/600mA	±(1.0%+3)
AC current	10A	±(1.5%+3)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz	±(0.5%+5)
Duty cycle (%)	1%-99%	±(3.0%+2)
Temperature (℃)	-40℃~1000℃	±(1%+2)
Temperature (℃)	-40℉~1832℉	±(1%+2)
Features
Display count		6000
Auto power oﬀ		√
Continuity test		√
Auto/Manual range		√
Relative Measurement		√
Low battery indication		√
Diode test		√
Triode test		√
hFE		√
Data hold		√
MAX/MIN measurement		√
VFD measurement		√

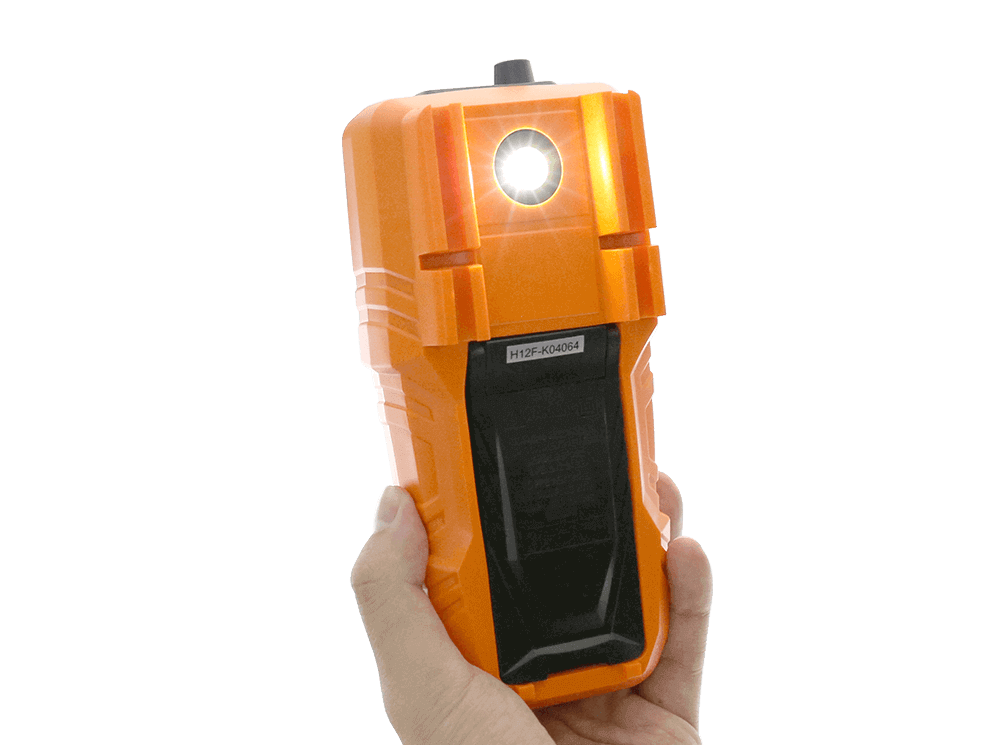

Flashlight		√
Live wire detection		√
NCV Detection		√
Back Light		√
Work Light		√
General Characteristics
Power	1.5V battery (AAA) x 3
Display	43mm x 45mm
Product color	Orange and grey
Product net weight	380g
Product size	194mm x 90mm x 56mm
Safety standards	EN61010-1, EN61010-2-030, EN61010-2-032, CAT Ⅲ 1000V

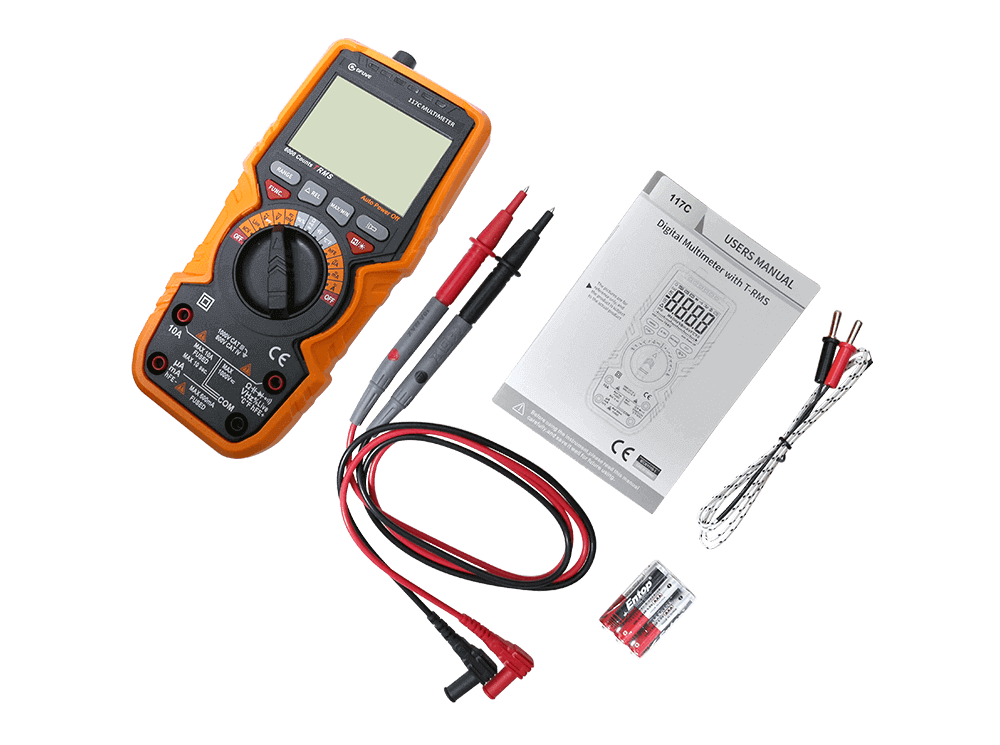

Standard accessories	Test leads, batteries, point contact temperature probe

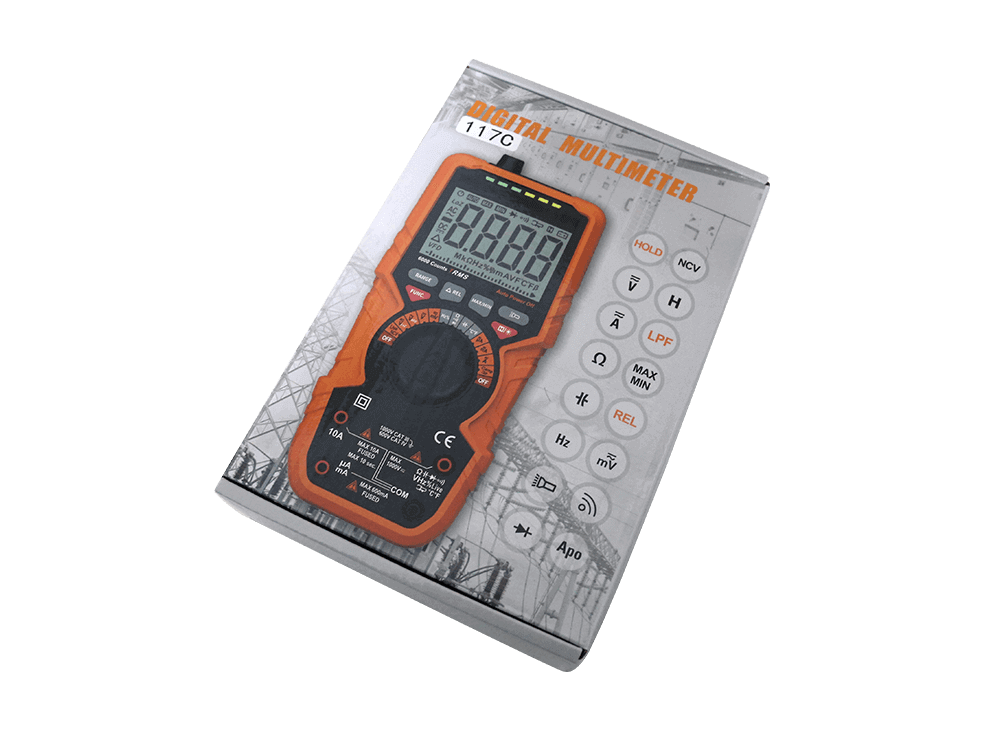

Standard individual packing	Gift box
Standard quantity per carton	30pcs
Standard carton measurement	700mm x 650mm x 350mm
Standard carton gross weight	About 20kg
