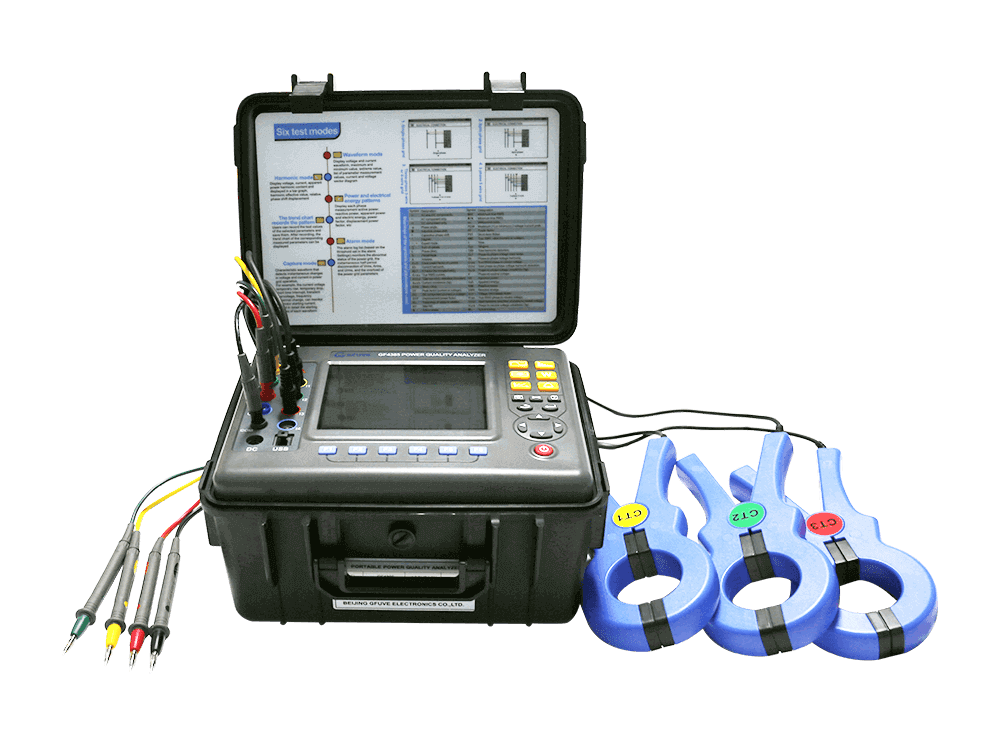

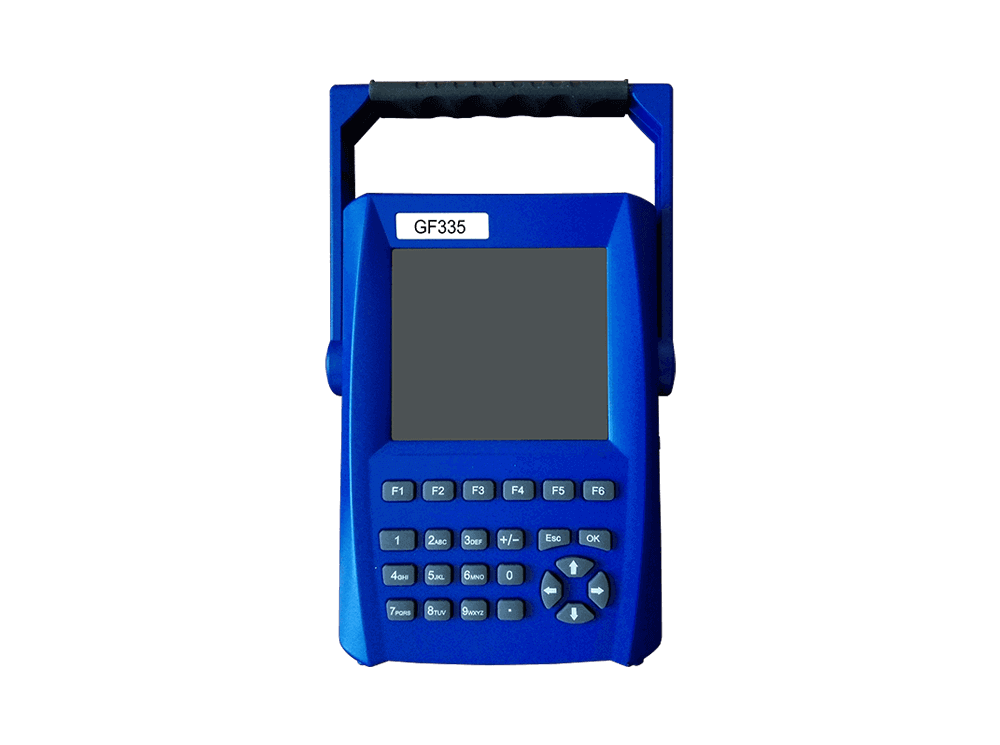

GF4385 portable power quality analyzer is a low cost PQA carefully developed by GFUVE GROUP and specially designed for field test of three phase system, multi-functional and intelligent, concise man-machine operation. It is easy to use, large LCD screen display, high resolution, English display, shock-proof shell structure and so on. simultaneously measure 4-channel current (I1 I2 I3 I4 three phase and neutral wire current) and 4-channel voltage (U1 U2 U3 U4 three-phase voltage and neutral line voltage to ground), the peak value of current voltage, maximum/minimum value over a period, three-phase unbalance factor, short-flicker, transformer K factor, active power, reactive power, apparent power, power factor and displacement power factor, active power, reactive power, apparent power, total harmonic distortion and harmonic, etc; Display real-time waveform, harmonic ratio bar charts of current voltage; Dynamically capture instantaneous change of voltage current, monitoring starting current, monitoring the power parameters and generate the alarm list, generate the trend chart for a long time record test data.
■ Factory;
■ Power quality;
■ Power generation;
■ Wind power plant;
■ Oil, Gas company;
■ Power distribution;
■ Hydroelectric power;
■ Power quality reports;
■ Renewable power plants;
■ Electricity power company;
■ Photovoltaic power station;
■ Uninterruptible power supply;
■ Uninterruptible power supply in healthcare;
■ Recording transients of switching manoeuvers;
■ Effects of power quality issues on living and working environment;
■ Alarm function;
■ Snapshot function;
■ Transformer K factor;
■ Vector diagram display;
■ Inrush current monitoring;
■ Transient capture function;
■ Short-term voltage flicker (PST);
■ Total harmonic distortion (THD);
■ The DC components of voltages;
■ Peak current and voltage values;
■ Trend chart recording and storing function;
■ True RMS values of voltages and currents;
■ Three phase unbalance(current and voltage);
■ Measurement of each harmonic up to order 50;
■ Each phase and total active, reactive, apparent power;
■ Each phase and total active, reactive, apparent energy;
■ Power factors (PF) and displacement factors (DPF or COSΦ);
■ Minimum and maximum half-cycle RMS current and voltage values;
■ Waveform real-time display (4 channels voltage/4 channels current);
■ Bar charts show harmonic ratios of current and voltage of each phase;
| Electrical parameters | |
|---|---|
| Function | Analysis and diagnosis on all the voltage, current, power, energy, harmonic, each phase electric parameters etc. |
| Accuracy | 0.5% |
| Power Supply | Rechargeable lithium-ion battery 10000mAh. |
| Input channels | 4 channel voltage, 4 channel current |
| Rated voltage range(U1 U2 U3 U4 Un) | 0-1000V AC/DC (phase voltage) |
| Rated voltage range(U1 U2 U3 U4) | 0-2000V AC/DC (line voltage) |
| Rated current range(I1 I2 I3 I4) | 10A/100A/1000A/6000A |
| Frequency | 40-70Hz |
| Phase shift | 0 - 1 |
| Harmonic | 2 - 50 times |
| Total harmonic distortion | 2 - 50 times, each phase |
| Voltage unbalance | 0.0%~ 100% |
| Three phases unbalance | Yes |
| Parameters of electricity | W, VA, Var, PF, DPF, cosφ, tanφ. |
| Energy parameters | Wh, Varh, Vah. |
| Number of Transient records | 150 sets |
| Voltage flicker | Yes |
| Record | 300 days(simultaneous recording 20 parameters, record one point every 5 seconds) |
| Min/Max value | Yes |
| LCD display | 5.6 inch color TFT LCD, 640×480, 4-bit LCD display, gray screen backlight |
| Alarm Function | 40 different types of parameter selections, 12,800 sets alarm logs. |
| Peak value | Yes |
| Vector diagram display | Yes |
| Snapshots | Yes, 60pcs |
| Storage card | 2G |
| Communication | USB Port |
| Alarm Function | Yes |
| Power Consumption | Current consumption of normal test 490 mA, continuous working for 10 hours. |
| Insulation Resistance | ≥10MΩ (Between instrument wiring and shell) |
| Withstand voltage | AC3kV/50Hz 1min (between instrument wiring and shell) |
| Test cable | voltge cable 3m(5pcs), Crocodile clips(5pcs) |
| PC software | Yes |
| Standard | IEC61010-1, IEC61010-2-31, IEC60529(IP54), pollution grade 2, 1000V Cat III / 600V CAT IV, EN/IEC 61326; IEC 61000-4-30; IEC 61000-4-7, IEEE 519; IEC 61000-4-15; IEEE 1459; EN 50160 |
| Mechanical parameters | |
| Dimensions (W×D×H) (mm) | 277.2x227.5x153 |
| Weight (kg) | 2.4 |
| Environmental conditions | |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -40°C to 70°C |
| Relative humidity | ≤90%RH |
