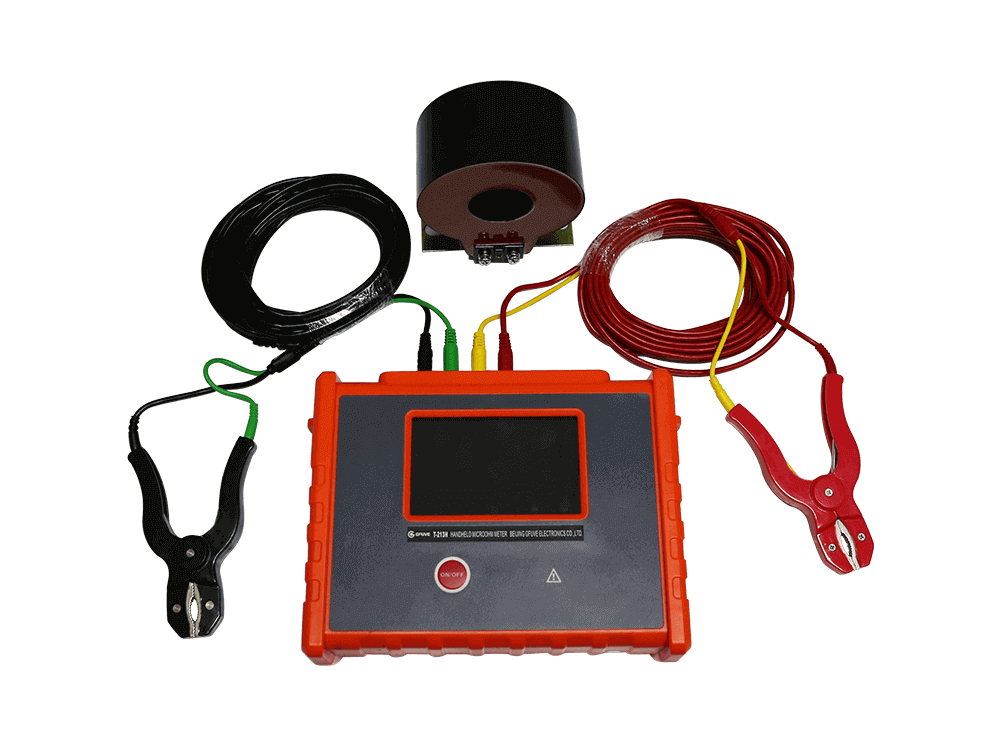

T-213H HANDHELD MICROOHM METER

The T-213H handheld Micro-ohm meter also known as transformer DC resistance tester, DC resistance fast tester and grounding continuity tester, adopts Microprocessor technology and four wire method for testing, which is safe, precise and reliable. It is mainly used to measure the resistance of transformer winding, winding resistance of transformer, conduction test of grounding down lead, conductor resistance of cable, switch, connector, contact resistance of relay, coil, motor, and connection electricity between metal components of equipment shell, lightning strip, ground beam, structure, cabinet, steel bar, water pipe, window, guardrail, radiator, assembly line and other objects Resistance test. It is widely used in telecommunication, electricity, meteorology, computer room, oil field, power distribution line, transmission line of iron tower, gas station, factory grounding grid, lightning rod, etc.

Request a quote Download Catalogue video

APPLICATION

■ Testing resistance of coil;

■ Testing resistance of relay;

■ Testing low value resistance;

■ Testing contact resistance etc.

■ Testing resistance of connector;

■ Testing motor winding resistance;

■ Testing metal riveting resistance;

■ Testing contact resistance of switch;

■ Testing conductor resistance of cable;

■ Measure DC resistance of transformer;

■ Testing continuity of grounding grid connection;

■ Testing winding resistance of instrument transformer;

■ Testing connection resistance test between metal components;

FEATURES

■ High accuracy 0.2%;

■ Storage 500groups test data;

■ Designed for rugged field use;

■ Communication:with USB port;

■ With big color touch LCD display;

■ With rechargeable lithium battery;

■ Wide measuring range 10.0uΩ-50.00kΩ;

■ Handheld and lightweight, weighs only 1kg;

■ Easy to operate, auto test resistance value;

■ Using four wire method for testing resistance;

■ Test Current 10A, 5A, 1A, 0.1A, 10mA, 1mA optional;

PARAMETERS

Electrical parameters
Power supply DC 12.6V 2500mAh lithium battery
Test range 10.0uΩ-50.00KΩ
Test Current output 10A, 5A, 1A, 0.1A, 10mA, 1mA
Test Method Four wire test
Test range Accuracy and Resolution
10.0uΩ~1000.0uΩ (10A) Accuracy 0.2%FS±2bit Resolution 0.1uΩ
1.00mΩ~100.00mΩ (10A) Accuracy 0.2%FS±2bit Resolution 0.01mΩ
100.0mΩ~1000.0mΩ (5A) Accuracy 0.2%FS±2bit Resolution 0.1mΩ
1.000Ω~10.000Ω (1A) Accuracy 0.2%FS±2bit Resolution 0.001Ω
10.00Ω~100.00Ω (100mA) Accuracy 0.2%FS±2bit Resolution 0.01Ω
100.0Ω~1000.0Ω (10mA) Accuracy 0.2%FS±2bit Resolution 0.1Ω
1.000KΩ~10.000KΩ (1mA) Accuracy 0.2%FS±2bit Resolution 0.001KΩ
10.00KΩ~50.00KΩ (1mA) Accuracy 0.2%FS±2bit Resolution 0.01KΩ
Accuracy 0.2%FS±2bit
Resolution Min 0.1μΩ
Max storage volume 500 SETS
LCD 108 mm×65mm color touch LCD display
Communication USB Port
Maximum short circuit current 10A
Overload protection Yes
Automatic discharge Yes
Test Cable 5m
Test method Four fire
Degree of protection IP53
Insulation Resistance >10MΩ (500V between circuit and shell)
Withstand voltage AC 3.7KV / RMS (between circuit and housing)
Standard IEC61010-4-3, IEC61010-1, CAT Ⅲ 600V, Pollution Level 2, JJG724-1991《verification regulation of DC digital ohmmeter》, JJG166-1993《Verification regulation of DC resistor》, DL/T967-2005 《Verification regulation of loop resistance tester and DC resistance fast tester》
Mechanical parameters
Dimension (L×W×H) (mm) 240x188x85
Weight (kg) 1 (with battery) ; 0.85 (test cable)
Environmental conditions
Operating temperature -20°C to 50°C
Storage temperature -40°C to 70°C
Relative humidity ≤95%RH
