P18200A DOUBLE RATIO VOLTAGE OUTPUT AC CURRENT CLAMP

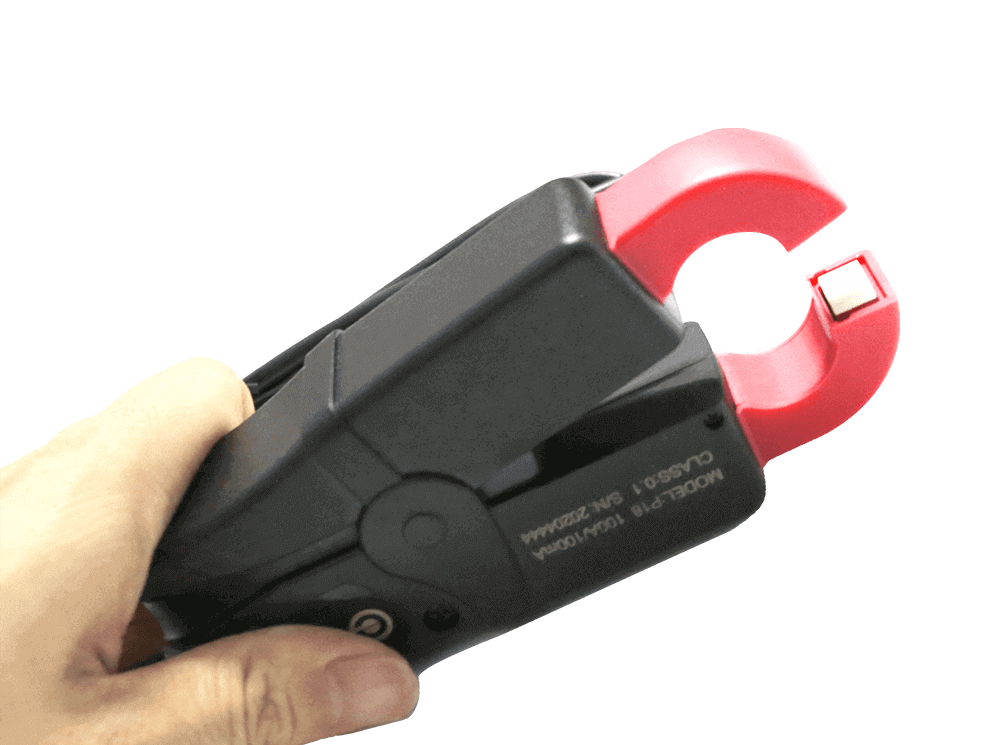

The round jaw design on the P18 Series double ratio AC current clamp along with the high content permalloy core makes them well suited for power quality applications where high accuracy and low phase shift along with wide frequency are important. Measurement range is 1mA to 200A.

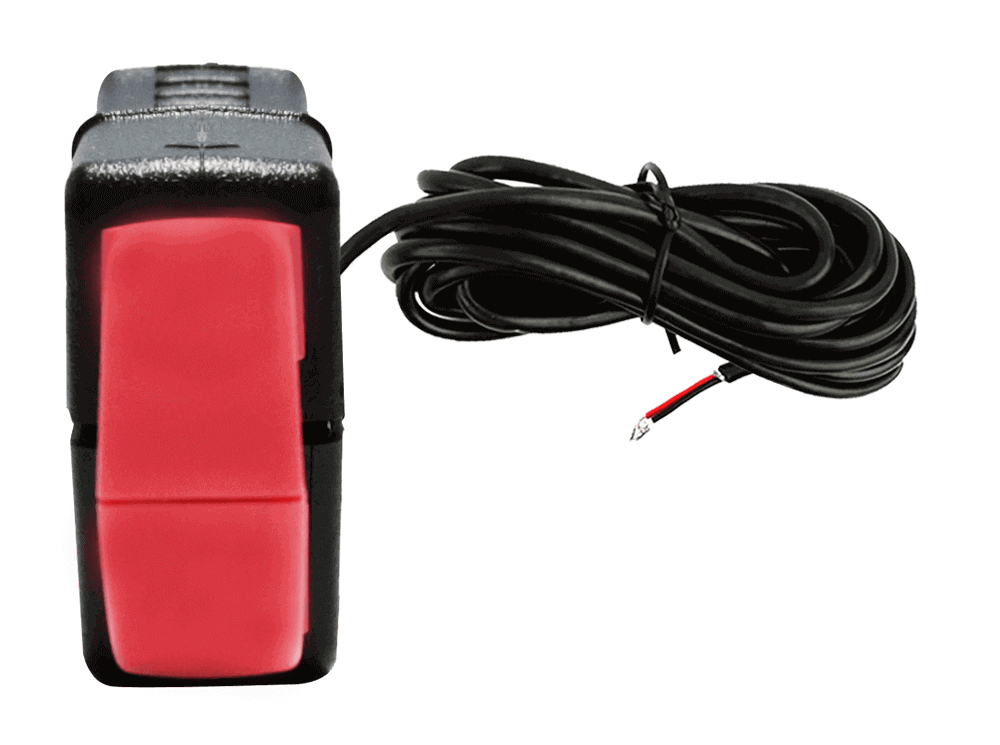

The P18 AC current clamp is a general purpose 200A AC current clamp ct designed for use with DMMs, power loggers and energy meter calibration instruments that have a current input. It has a 1000:1 ratio and output of 1mA per amp or 1mV per amp measured in the jaw. The P18 clamp ct has an integral 2.5m lead terminated. The rounded jaw design on this current clamp makes it well-suited for power applications where high accuracy 0.1% and low phase shift and wide frequency response are important.

Request a quote Download Catalogue video

APPLICATION

■ Multimeter;

■ Power meter;

■ Phase angle meter;

■ Energy sub-meters;

■ Power load monitoring;

■ Data logging/recording;

■ Energy meter calibrator;

■ power and harmonic meters;

■ Power quality analyzer(PQA);

■ Measuring around cable bundles;

■ Waveform analysis(oscilloscopes meter);

FEATURES

■ UL, CE mark;

■ Holding wire diameter: φ18mm;

■ Frequency 10Hz-2MHz Bandwidth;

■ High times harmonic measurement;

■ Conforms to EN 61010, 600V CAT III;

■ Measurement range of 1mA to 200A AC;

■ Low phase shift for power measurement;

■ High content nickel metal permalloy core;

■ Improved ergonomic design & easy operation;

■ High precision 0.1% for current measurement;

■ Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters;

Electrical parameters
Ratio 1000: 1 or 2000:1 (customized)
Accuracy class 0.1%, 0.2%
Primary current 0 - 10A AC and 0-200A AC
Signal output 10A (100mV/A) and 100A (200A)(10mV/A) with Switch
Secondary voltage 0 - 1V AC, 0 - 2V AC, 0 - 5V AC, 0 - 10V AC
Secondary current 0 - 100mA AC and 0 - 200mA AC
Max. Cont. Input current 240A
Load capacity ≤20Ω , Standard 4Ω
Over voltage category CAT III 600V
Frequency range 10Hz-2MHz
Dielectric strength 3KV 50Hz/60Hz at 1minute
Temperature range -40°C to +55°C
Output 2.5 meter cable with D01 or BNC connector, 4mm banana
Max. voltage not insulated conductors 600 V
Ratio single winding, or double winding
Standard EN 61010-1, EN 61010-2-032, EN 61010-2-031
IEC60044-1, & IEC61869-2, 600V CAT III
Installation clamp type
Output mode lead output(2.5m)
Connector BNC, 4mm banana, signal cable(2 cores),customized
Mechanical parameters
Dimensions (L x W x H) (mm) 52.5 x 137.5 x 28
Weight (g) 400
Holding wire diameter (mm) φ18
Max. jaw opening (mm) 18
Jaw color Red, black
Material PC+ABS, UL94 V0

SELECTION GUIDE

Model Rate Current Max Current Secondary Current Coil Ratio Burden Resistance Accuracy
P18-5 5A 6A 5mA 1000:1 customized 0.1%
P18-10 10A 12A 10mA 1000:1 customized 0.1%
P18-20 20A 24A 20mA 1000:1 customized 0.1%
P18-100 100A 120A 100mA 1000:1 customized 0.1%
P18-200 200A 240A 200mA 1000:1 customized 0.1%
P18-10-2 10A 12A 10mA 1000:1 customized 0.2%
P18-20-2 20A 24A 20mA 1000:1 customized 0.2%
P18-100-2 100A 120A 100mA 1000:1 customized 0.2%
P18-200-2 200A 240A 200mA 1000:1 customized 0.2%
P18-5 5A 6A 2.5mA 2000:1 customized 0.1%
P18-10 10A 12A 5mA 2000:1 customized 0.1%
P18-20 20A 24A 10mA 2000:1 customized 0.1%
P18-100 100A 120A 50mA 2000:1 customized 0.1%
P18-200 200A 240A 100mA 2000:1 customized 0.1%
P18-10-2 5A 6A 2.5mA 2000:1 customized 0.2%
P18-10-2 10A 12A 5mA 2000:1 customized 0.2%
P18-20-2 20A 24A 10mA 2000:1 customized 0.2%
P18-100-2 100A 120A 50mA 2000:1 customized 0.2%
P18-200-2 200A 240A 100mA 2000:1 customized 0.2%
P18-10 10A 12A 2.5mA 4000:1 customized 0.1%
P18-20 20A 24A 5mA 4000:1 customized 0.1%
P18-100 100A 120A 25mA 4000:1 customized 0.1%
P18-200 200A 240A 50mA 4000:1 customized 0.1%
P18-10-2 10A 12A 2.5mA 4000:1 customized 0.2%
P18-20-2 20A 24A 5mA 4000:1 customized 0.2%
P18-100-2 100A 120A 25mA 4000:1 customized 0.2%
P18-200-2 200A 240A 50mA 4000:1 customized 0.2%
Model Rate Current Max Current Secondary Voltage Coil Ratio Burden Resistance Accuracy
P18V1-100 100A 120A 1V 1000:1 customized 0.1%
P18V2-100 100A 120A 2V 1000:1 customized 0.1%
P18V5-100 100A 120A 5V 1000:1 customized 0.1%
P18V10-100 100A 120A 10V 1000:1 customized 0.1%
P18V1-200 200A 240A 1V 1000:1 customized 0.1%
P18V2-200 200A 240A 2V 1000:1 customized 0.1%
P18V5-200 200A 240A 5V 1000:1 customized 0.1%
P18V1-100-2 100A 120A 1V 1000:1 customized 0.2%
P18V2-100-2 100A 120A 2V 1000:1 customized 0.2%
P18V5-100-2 100A 120A 5V 1000:1 customized 0.2%
P18V10-100-2 100A 120A 10V 1000:1 customized 0.2%
P18V1-200-2 200A 240A 1V 1000:1 customized 0.2%
P18V2-200-2 200A 240A 2V 1000:1 customized 0.2%
P18V5-200-2 200A 240A 5V 1000:1 customized 0.2%
