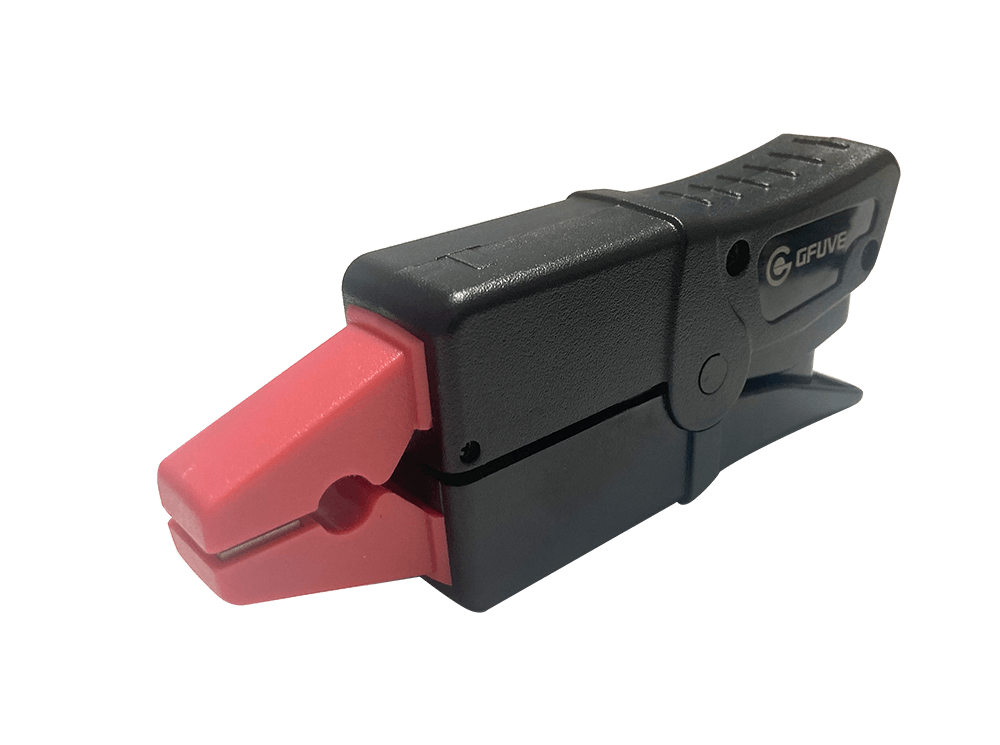

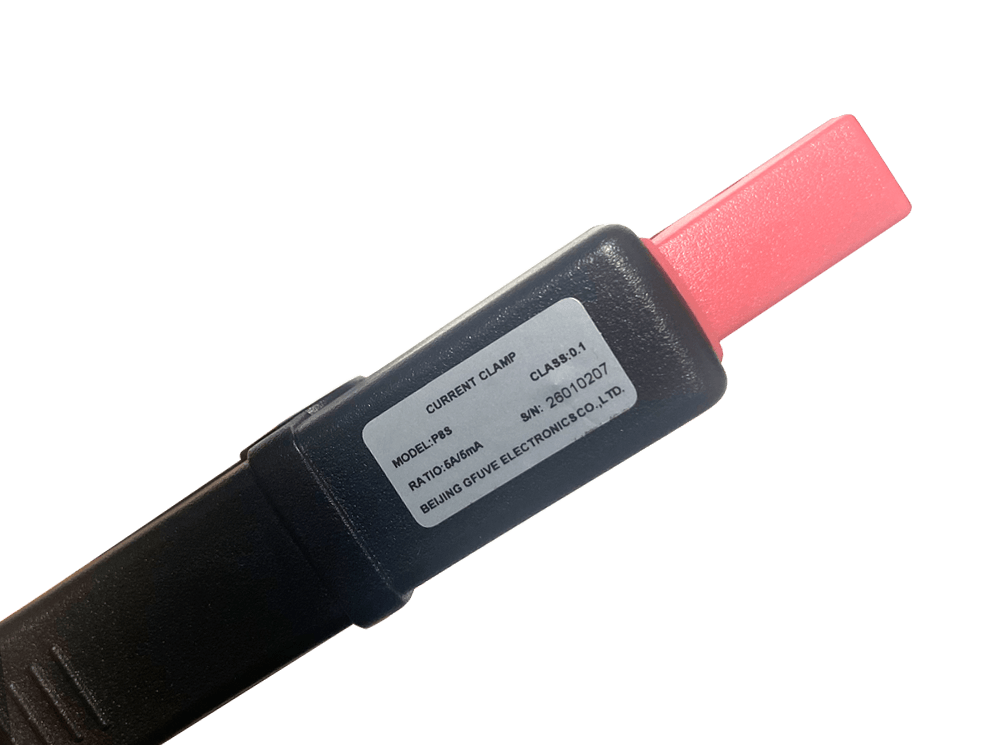

P8SHIGH QUALITY EUROPE STANDARD 5A 10A 20A CLAMP ON CT

The model P8S current probe is a permalloy core ac clamp on ct with high accuracy up to 0.1% has been designed for use with on-site energy meter calibrator, multimeters, recorders, power quality analyzers, safety testers etc. It has low phase shift for power measurement, greatly suitable for harmonic measurement and oscilloscope measuring current wave. This P8S clamp on ct can convert 0 - 20A AC current to 0 - 20mA AC current with real shape, max 50A measurement, but with high time harmonic measurement function. It is suitable for leakage current measurement in the field.

Request a quote Download Catalogue video

APPLICATION

■ Multimeter;

■ Power meter;

■ Oscilloscopes;

■ Energy sub-meters;

■ Phase angle meter;

■ Digital multi-meter;

■ Leakage current meter;

■ Data logging/recording;

■ Power quality analyzer;

■ Power quality monitoring;

■ Ppower and harmonic meters;

■ Multi-function energy meter;

■ CT secondary current detection;

■ Electricity meter calibrator (on site);

FEATURES

■ UL, CE CNAS mark;

■ Small, compact size;

■ High times harmonic measurement;

■ 10Hz to 2MHz bandwidth response;

■ Low phase shift for power measurement;

■ Min 1mA for leakage current measurement;

■ High content nickel metal permalloy core;

■ Measurement current range of 1mA to 30A AC;

■ Improved high quality design and easy operation;

■ 1mA/A, 0.5mA/A, 10mV/A, 100mV/A AC output signals;

■ Designed to EN 61010, 600V CAT III safety standard;

■ Ratio 1000:1 2000:1 or 2500:1, high precision 0.1%;

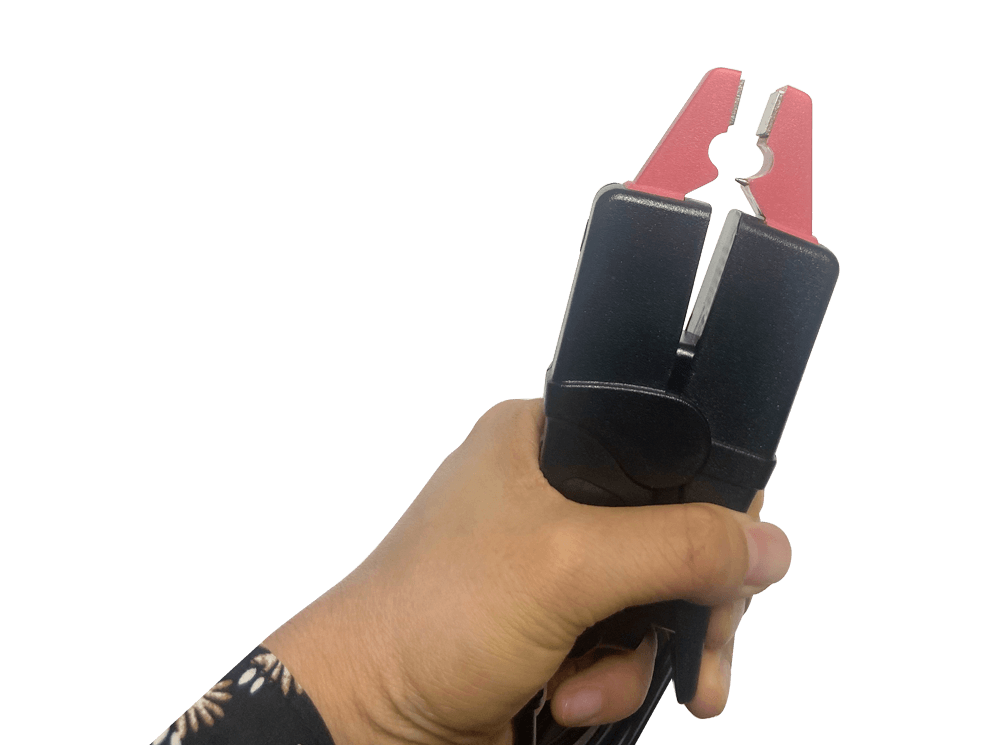

■ Jaw opening accommodates conductors up to 8mm diameter;

■ Designed for DMMs, loggers, power analyzer, recorders and oscilloscopes;

CONNECTOR OPTIONAL

Signal Wire
(two core)		 4mm Banana BNC Audio Customized
Signal Wire (two core) 4mm Banana BNC Audio

PARAMETERS

Electrical parameters
Ratio 1000: 1, 2000:1 or 2500:1 (customized)
Accuracy class 0.1 %,0.2%
Phase shift <10'
Primary current 0 - 5A AC, 0 - 10A AC, 0 - 20A, 0-30A AC
Secondary current 0 - 5mA AC, 0 - 10mA AC, 0 - 20mA AC (customized)
Secondary voltage 0-0.1V AC, 0-0.5V AC, 0-1V AC, 0-5V AC
Max. Cont. Input current 50A
Load capacity ≤20Ω , Standard 4Ω
Over voltage category CAT III 600V
Output signal (AC current) From 0 to 10mA AC at nominal input current
Output signal (AC voltage) From 0 to 0.5V AC at nominal input current
Signal ratio 1mA/A, 1mV/A, 10mV/A, 100mV/A
Frequency range 10Hz-500KHz
Dielectric strength 3KV 50Hz/60Hz at 1minute
Temperature range -20°C to +55°C

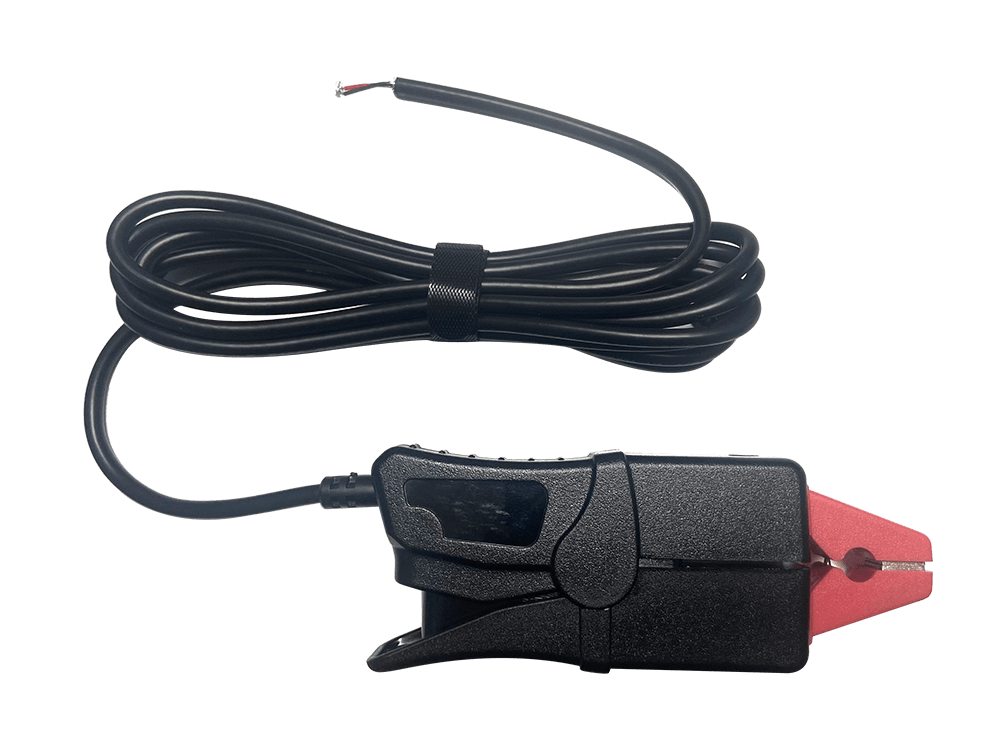

Output 2.5 meter cable with D01 connector
Max. voltage not insulated conductors 720 V
Standard EN 61010-1, EN 61010-2-032, EN 61010-2-031
IEC60044-1, & IEC61869-2, 600V CAT III
Installation clamp type
Output mode lead output(2.5m)
Connector Audio connector, BNC, 4mm banana, signal cable(2 cores)
Mechanical parameters
Dimensions (L x W x H)(mm) 52.5x135.5x28
Weight (g) 300
Holding wire diameter (mm) φ8
Max. jaw opening (mm) 8
Color Black + red , Black + yello, Black + blue
Material PC+ABS+Polycarbonate, UL94 V0

SELECTION GUIDE

Model Rate current Max current Secondary Coil ratio Burden resistance Accuracy
P8S-1-1 1A 1.2A 1mA 1000:1 customized 0.1%
P8S-1-2 1A 1.2A 0.5mA 2000:1 customized 0.1%
P8S-5-1 5A 6A 5mA 1000:1 customized 0.1%
P8S-5-2 5A 6A 2.5mA 2000:1 customized 0.1%
P8S-5-3 5A 6A 2mA 2500:1 customized 0.1%
P8S-10-1 10A 12A 10mA 1000:1 customized 0.1%
P8S-10-2 10A 12A 5mA 2000:1 customized 0.1%
P8S-10-3 10A 12A 4mA 2500:1 customized 0.1%
P8S-20-1 20A 24A 20mA 1000:1 customized 0.1%
P8S-20-2 20A 24A 10mA 2000:1 customized 0.1%
P8S-30-1 30A 36A 30mA 1000:1 customized 0.1%
P8S-30-2 30A 36A 15mA 2000:1 customized 0.1%
P8S-30-3 30A 36A 12mA 2500:1 customized 0.1%
P8S-30-3 30A 36A 10mA 3000:1 customized 0.1%
P8S-V5-1 5A 6A 50mV 1000:1 customized 0.1%
P8S-V5-2 5A 6A 500mV 1000:1 customized 0.1%
P8S-V5-3 5A 6A 1V 1000:1 customized 0.1%
P8S-V10-1 10A 12A 100mV 1000:1 customized 0.1%
P8S-V10-2 10A 12A 1V 1000:1 customized 0.1%
P8S-V10-3 10A 12A 15V 1000:1 customized 0.1%
P8S-V20-1 20A 24A 200mV 1000:1 customized 0.1%
P8S-V20-2 20A 24A 1V 1000:1 customized 0.1%
P8S-V20-3 20A 24A 5V 1000:1 customized 0.1%
P8S-V20-4 20A 24A 10V 1000:1 customized 0.1%
P8S-1-12 1A 1.2A 1mA 1000:1 customized 0.2%
P8S-1-22 1A 1.2A 0.5mA 2000:1 customized 0.2%
P8S-5-12 5A 6A 5mA 1000:1 customized 0.2%
P8S-5-22 5A 6A 2.5mA 2000:1 customized 0.2%
P8S-10-12 10A 12A 10mA 1000:1 customized 0.2%
P8S-10-22 10A 12A 5mA 2000:1 customized 0.2%
P8S-10-32 10A 12A 4mA 2500:1 customized 0.2%
P8S-20-12 20A 24A 20mA 1000:1 customized 0.2%
P8S-20-22 20A 24A 10mA 2000:1 customized 0.2%
P8S-V5-12 5A 6A 50mV 1000:1 customized 0.2%
P8S-V5-22 5A 6A 500mV 1000:1 customized 0.2%
P8S-V5-32 5A 6A 1V 1000:1 customized 0.2%
P8S-V10-12 10A 12A 100mV 1000:1 customized 0.2%
P8S-V10-22 10A 12A 1V 1000:1 customized 0.2%
P8S-V10-32 10A 12A 5V 1000:1 customized 0.2%
Notes: Can be customized current probe according to user requirements!
