GF6019D HIGH PRECISION DC ENERGY METER TEST EQUIPMENT

>Product>Electrical Test Equipment>Energy Meter Test Equipment>High Precision DC Energy Meter Test Equipment

GF6019DHIGH PRECISION DC ENERGY METER TEST EQUIPMENT

The GF6019D high precision DC energy meter test equipment consists of an DC voltage standard source, DC current standard source and DC power source. (up to 1150V/600A) and built-in DC electronic reference standard of accuracy class 0.05%. Characteristic features of the GF6019D are its wide measuring range, high accuracy and high tolerance to unwanted external influences. The equipment offers high functionality combined with an excellent menu guided operation via built-in keyboards and colored 8" LCD-display. It can test DC energy meter basic error, starting test, creep test, error of time of day.

Request a quote Download Catalogue video

FUNCTIONS

■ User friendly menu guided operation;

■ DC current source and DC voltage source;

■ Easy verification and analysis of DC meter;

■ Testing all kinds of DC ammeter, DC voltmeter;

■ Automatic operation without need of an external PC;

■ Testing all kinds of DC energy meter, DC power meter;

■ Especially configured USB stick for storage of customer data;

FEATURES

■ 0-600A/0-1150V;

■ 8 inch TFT touch screen;

■ DC power source integrated;

■ Accuracy class 0.05 or 0.02;

■ Test by automatic or manual;

■ Start testing and creep testing;

■ Recorder 10000 sets energy meter data;

■ Overload, short circuit, open circuit protection;

PARAMETERS

Electrical parameters
Accuracy	0.05%; 0.02%
Power Supply	One Phase AC 180-265V or 85-150V, frequency 50/60Hz.
DC voltage output
Range	100V, 350V, 500V, 700V (max 800V); 65V, 250V, 500V, 750V, 1000V (max 1150V)
Adjustment range	(0-120)%RG⁽¹⁾
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	0.01%/120s
Distortion	0.1% (Non-capacitive load)
Output load	20VA or 50VA
Full load regulation rate	≤±0.01%RG
Accuracy	±(0.03%RD+0.02%RG)
DC current output
Range	75mV, 2A, 20A, 50A, 100A; 0.001A, 0.005A, 0.02A, 0.05A, 0.2A, 1A, 3A, 10A, 20A, 50A, 100A, 500A (max 600A) small signal 2.5mV, 20mV, 100mV, 1V, 5V(Optional)
Adjustment range	(0-120)%RG
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	<0.01%/120s
Distortion	≤0.1% (Non-capacitive load)
Output load	150VA or 1200VA
Full load regulation rate	≤±0.01% RG
Accuracy	±(0.03% RD+0.02% RG)
Externally attached shunt	100mV
Accuracy	±(0.06% RD+0.04% RG)
DC power output
Power output stability	<0.01%RG/120s
Power accuracy	±(0.03% RD+0.02% RG)
DC power energy measurement error
Power energy	±(0.03% RD+0.02% RG)
Power pulse output
Power pulse output	20KHz (Full-range)
Power pulse input
Energy pulse input	20KHz
Ripple output	20-500Hz ripple output
Communication port	USB port, RS232, 10/100M LAN
Mechanical parameters
Dimensions (W×D×H)(mm)	460 x 460 x 175; 630 x 600 x 450
Weight (kg)	22kg, 55kg
Environmental conditions
Ambient temperature	-10°C to +40°C
Relative humidity	35%-85%
(1) RG means range, the same as below; (2) RD means the setted harmonic content, harmonic can be a single output, also multiple output.

MODEL SELECTION

NO.	Accuracy	Voltage range	Current Range	Weight
6019D50001	0.1%	0-1000V	0-600A	155KG
6019D500005	0.05%	0-1000V	0-600A	155KG
6019D500002	0.0%	0-1000V	0-600A	155KG
6019D20001	0.1%	0-1000V	0-200A	125KG
6019D200005	0.05%	0-1000V	0-200A	125KG
6019D200002	0.0%	0-1000V	0-200A	125KG
6019D10001	0.1%	0-1000V	0-120A	26KG
6019D100005	0.05%	0-1000V	0-120A	26KG
6019D100002	0.0%	0-1000V	0-120A	26KG
6019D5001	0.10%	0-1000V	0-60A	25KG
6019D50005	0.1%	0-1000V	0-60A	25KG
6019D50002	0.02%	0-1000V	0-60A	25KG
6019D2001	0.1%	0-1000V	0-24A	22KG
6019D20005	0.05%	0-1000V	0-24A	22KG
6019D20002	0.0%	0-1000V	0-24A	22KG
6019D1001	0.10%	0-1000V	0-12A	20KG
6019D10005	0.1%	0-1000V	0-12A	20KG
6019D10002	0.02%	0-1000V	0-12A	20KG
Note: Voltage range 0-1500V optional /td>

PACKING LIST

Item	Name	QTY
1	GF6019D machine	1PC
2	Scanning head	1PC
3	Energy pulse cable(input)	1PC
4	Energy pulse cable(output)	1PC
5	Voltage test cable	2PCS
6	Current test cable 100A or 500A (Optional)	2PCS
7	Current test cable 20A	2PCS
8	RS232 communication cable	1PC
9	Opreration Manual	1PC
10	Factory test certificate	1PC
11	Portable box	1PC

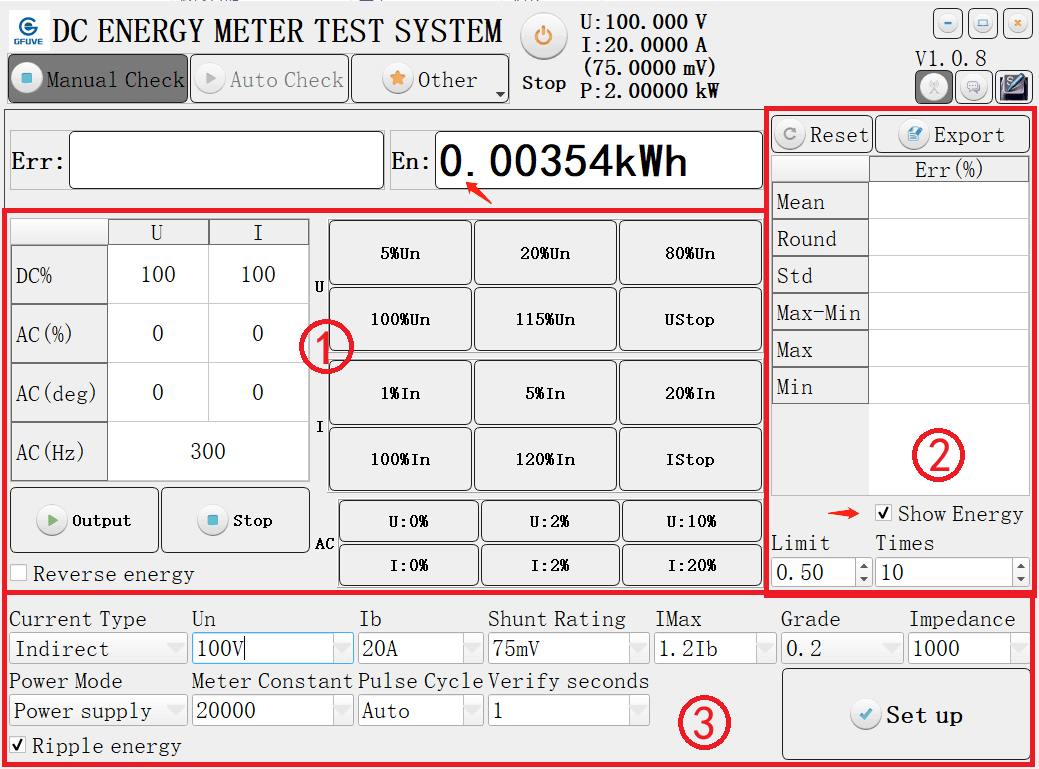

12	PC automatic testing software(Optional)	1PC
