GF1119B DC EV charging tester for off-board charger integrates some functions such as on-site calibrator, power analyzer, oscillographic recorder, BMS simulator software, vehicle DC interface circuit simulation box, insulation resistance tester and so on. It cooperates with the load to meet the test requirements of metrological verification, interoperability test and protocol consistency test, and meet the requirements of test items in the acceptance stage and operation stage of State Grid No. 45 document. Interoperability detection process, real-time graphical display of waveform and message, and clear working status at a glance. The device has built-in WiFi module, data can be transmitted wirelessly, and remote control can be realized through wireless devices such as tablet computers. Technically, GF1119 uses various cutting-edge technologies to make the equipment high-performance, such as 24bit sigma delta ad, imported high stability zero flux transformer and dual core DSP with main frequency of 500M.
■ With 8KW DC load;
■ High accuracy 0.05%;
■ Automatic and manual test optional;
■ Using 24bit A/D sampling technology;
■ Meet CCS2 Europe port & CCS1 USA port;
■ Recorder 10000 sets energy meter data;
■ Wide range design from 0-300A/0-1200V DC;
■ With Li-battery, working more than 8 hours;
■ ISO17025 electrical metrology laboratory standard;
■ Portable, small size, drag bar box structure design;
■ Built in WIFI, it can be controlled by PDA, PC computer;
■ Programmable multi-plan for testing EV & DC Charging pile;
■ Commissioning experience of 100 models EV & DC charging pile;
■ Using multi closed loop zero flux sensor and PGA Technology;
■ Safety test, performance test, Compatibility test, Metrological test;
■ According to JJG 1149-2022, GB/T 34657.1-2017 & GB/T34658-2017 Standard;
■ Internal high-voltage and low-voltage isolation to protect the safety of operators;
■ Integrated design concept, built-in reference meter, insulation resistance tester, oscilloscope, interface simulator, power analyzer etc;
■ CC interrupt test;
■ CP grounding test;
■ CP interrupt test;
■ JJG 1149-2022 Standard;
■ Output overcurrent test;
■ Charging readiness test;
■ Normal charging end test;
■ Disconnect switch S2 test;
■ CP loop voltage limit test;
■ Testing of working error;
■ Display error verification;
■ Insulation resistance test;
■ GB/T 34657.1-2017 Standard;
■ Connection confirmation test;
■ Start up and charging phase test;
■ Testing of payment amount error;
■ Testing of clock indication error;
■ Temperature and humidity detection;
■ Charging connection control sequence test;
■ Continuity loss test of protective grounding conductor;
■ EV & Charging pile factory; ■ Metrological service center; ■ ISO17025 Electrical laboratory; ■ Laboratories of power utilities; ■ Third party testing organization; ■ Electricity power bureau & power company; ■ National Metrology and testing department; ■ Charging pile operation and maintenance organization;
| Electrical parameters | |
|---|---|
| Accuracy class | 0.05% |
| Power supply | One phase AC 100-265V, frequency 50/60Hz; Li-battery |
| Warming-up time | <100VA |
| DC Voltage Measurement | |
| Range | 0-1000V (max 1200V) |
| Accuracy | ±0.02% |
| DC Current Measurement | |
| Range | 0-250A (max 300A) |
| Accuracy | ±0.02% |
| DC Power Measurement | |
| Accuracy | ±0.05% (1V-1000V, 5A-300A) |
| DC Power Energy Measurement Error | |
| Power energy | ±0.05% (1V-1000V, 5A-300A) |
| Power Pulse Output | |
| Power Pulse Output | 0-100KHz, >20mA, one channel, level 5V |
| Energy Pulse Input | |
| Energy pulse input | 0-100KHz, one channel, level 3-12V |
| Ripple Measurement | |
| Range | 1Hz-6KHz |
| Accuracy | ±0.5% |
| Insulation Resistance Measurement | |
| Voltage Range | 0-1000V |
| Resistance range | 0-50MΩ |
| Accuracy | ±5% (1~50MΩ) |
| Power Analyzer (AC) | |
| AC voltage input (L1\L2\L3\N) | 220V±20% (±0.05%RD) |
| AC current input (IL1\IL2\IL3) | 0.1-500A(±0.5%RG) (current sensor optional) |
| Accuracy | ±0.5% |
| Voltage harmonic times | 2-127 times |
| Current harmonic times | 2-127 times |
| Wave Recorder Measurement | |
| Voltage input range | 0-±1000V |
| Accuracy | ±1%RG |
| Waveform capture resolution | 10us |
| CAN baud rate | 250kbit/s |
| Temperature Measurement | |
| Range | -40°C to +80°C |
| Accuracy | ±0.3°C |
| Resolution | 0.1°C |
| Humidity Measurement | |
| Range | 0%RH-99.99%RH |
| Accuracy | ±5%RH |
| Resolution | 0.1%RH |
| Load | |
| Range | 0-8KW (Support cascading expansion) |
| DC voltage | 850V |
| Gear numbers | 3 |
| Function | |
| LCD Display | 10 inch 800×600 touch TFT |
| Energy accumulation | Yes |
| Self-calibration | Yes |
| Data storage | Yes |
| Auto test | Yes |
| GPS | Yes |
| Test report (word file) download | Yes |
| PC software | Optional |
| Communication port | RS232, USB, WIFI, 10/100M LAN |
| Standard | |
| Standard | IEC 62053-21, 22, 23; IEC 60736; ANSI C12.20-2002; IEC 62196-2; IEC 62196-3; JJG-842-2017; JJG596-2012; JJG 1085-2013; JJG 1049-2022; JJF 68-2019; DL/T 1478-2015; DL/T 448-2016; GB/T 33708-2017; JJG 1148-2018; GB/T 34657.1-2017 |
| Safety | |
| Isolation protection | IEC 61010-1:2001 |
| Measurement Category | 300V CAT III, 600V CAT II |
| Degree of protection | IP65 |
| Declaration of conformity | CE & CNAS certified |
| Mechanical parameters | |
| Dimension (L×W×H)(mm) | 365×212×532 |
| Weight (kg) | 12 |
| Environmental conditions | |
| Ambient temperature | -20°C to +50°C |
| Storage temperature | -30°C to +65°C |
| Relative humidity | 10%-85% |
| Temperature coefficient | ≤0.005%/°C |
| Influence of external fields | ≤0.05%/mT |
-big_portable_ac_ev_charger_testing_equipment_with_9kw_load.png)
-big_EV_&_CHARGING_PILE_DC_TEST_SET.png)

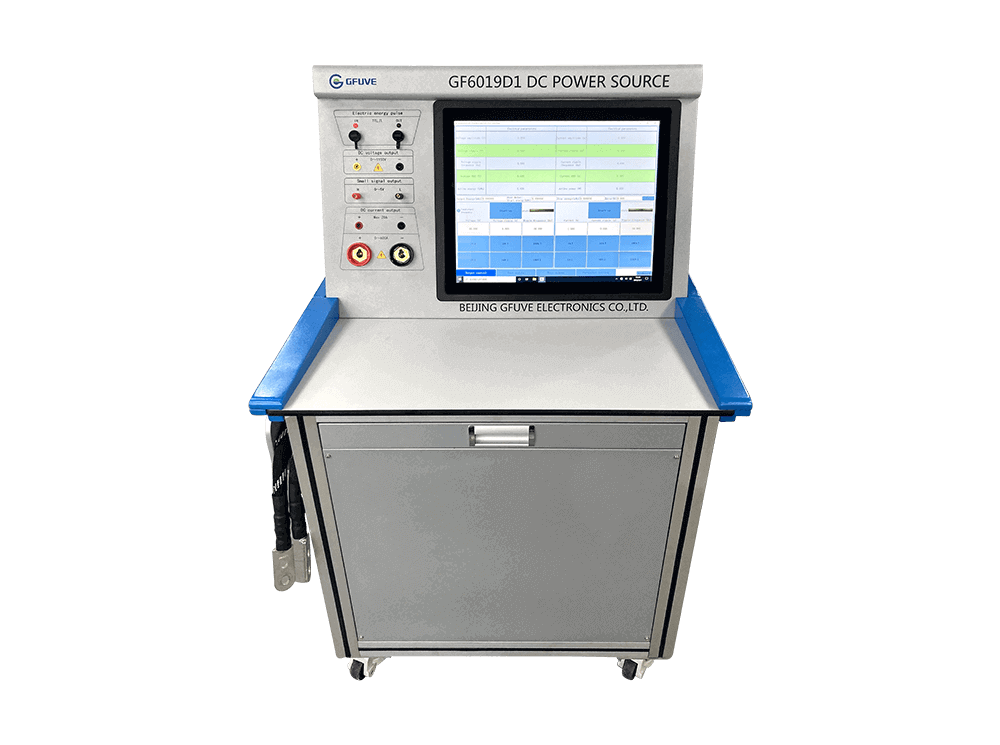

-big_PROGRAMMABLE_HIGH_PRECISION_500A_1150V_DC_POWER_SOURCE_with_DC_energy_meter_calibrator.png)
