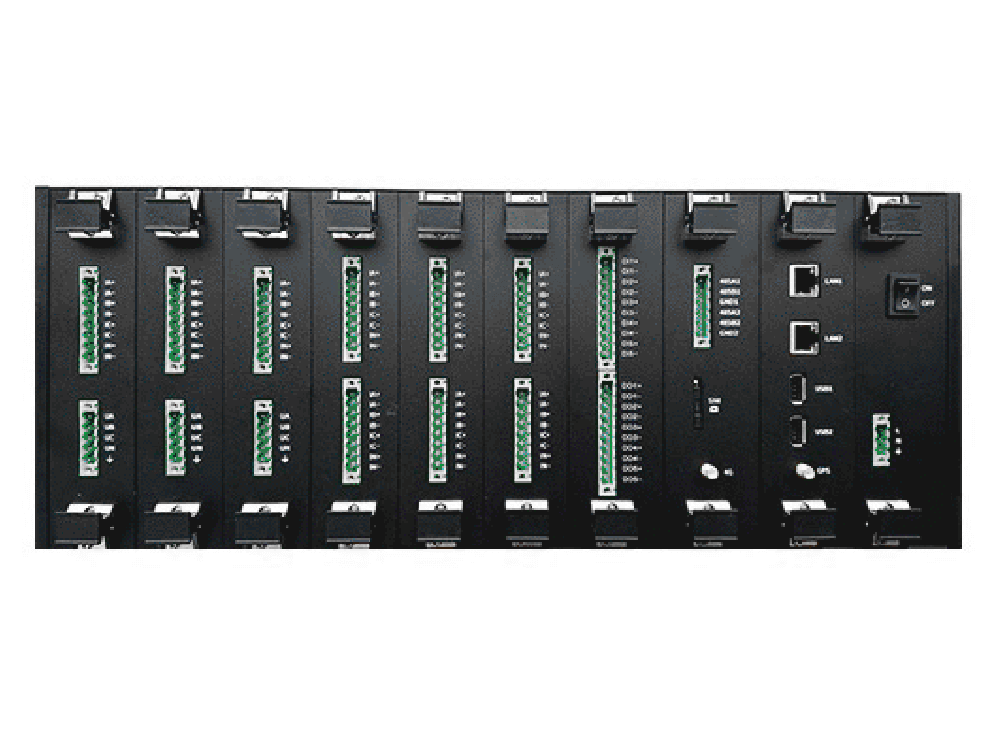

The GF438R Rack-mounted power quality recorder is a high-end power quality monitoring device independently developed by GFUVE GROUP. It follows the national standard and international standard IEC 61000-4-30/IEC 61000-4-15/IEC 61000-4-7/IEEE 1459/EN 50160 etc for general requirements of power quality monitoring equipment and integrates multiple functions such as voltage and current sampling, harmonic analysis, fluctuation and flicker monitoring, unbalance monitoring, fault recording, event recording, and IEC61850 remote communication protocol.
DESCRIPTIONGF438R can measure multiple input signal parameters, including voltage RMS, current RMS, and phase angle; Harmonic content, effective value, phase angle; Interharmonic content and effective value; Voltage fluctuations and flicker; Voltage and current unbalance; Active power, reactive power, apparent power, power factor, harmonic power. GF438R has event recording function, which includes recording frequency deviation; Voltage and current effective value deviation; Voltage and current harmonics exceed the limit; Flashing beyond the limit; Unbalance exceeding the limit; Voltage rise, voltage drop, voltage interruption, surge current, etc.
GF438R device does not lose data during power outage and recovery, and there are no measurement errors at the moment of power outage; During the power restoration period, the monitoring device automatically returns to its working state before the power outage.
■ Power quality;
■ Wind power plant;
■ Power generation;
■ Power distribution;
■ Hydroelectric power;
■ Renewable power plants;
■ Electricity power company;
■ Photovoltaic power station;
■ Effects of power quality issues on living and working environment;
■ Original waveform display and measurement
Monitor the 63rd harmonic component of the tested signal, including distortion rates of 1st to 63rd harmonics, total harmonic distortion rate, harmonic phase angle, and interharmonics, to meet the testing requirements of GB/T 14549 and IEC61000-4-7 for harmonics in public power grids.
■ harmonic analysis
The harmonic analysis function can analyze the harmonic, interharmonic, and high-order harmonic information of all user circuits, up to the 63rd harmonic. The content includes harmonic amplitude, phase, content, and other information such as THD value. You can freely choose to observe data in table or bar chart format.
■ Voltage fluctuations and fault recording
Capable of capturing waveforms of all voltage and current channels and analyzing interference sources. Harmonic components exceeding the standard, distortion rate exceeding the standard, voltage effective value exceeding the standard, short circuit faults, etc. can all initiate voltage waveform and fault recording to capture subtle changes in voltage waveform.
■ Component measurement and voltage unbalance analysis
It can measure the unbalance of voltage and current, as well as the amplitude and phase of zero sequence, positive sequence, and negative sequence, and display the phase diagram of voltage and current.
■ Record of steady-state events in power quality
The GF438R power quality recorder can continuously monitor steady-state events of power quality without interruption. Different triggering conditions can be set through software to start the statistics of excessive power parameters and record the corresponding superscalar, with a time resolution of 1ms.
■ Transient event recording of power quality
The GF438R power quality recorder can continuously monitor transient events of power quality without interruption. Different triggering conditions can be set through software to start the statistics of excessive power parameters and record the corresponding superscalar, with a time resolution of 1ms.
| Name | Measurement type |
|---|---|
| Voltage | Rms, ava, pk+, pk-, rms-1/2, CF |
| Frequency | Freq |
| Current | Rms, ava, pk+, pk-, rms-1/2, CF |
| Power & energy | P, S, Q, PF, DPF, W |
| Computation | THD, DC, 1-63 Harm, 1-62 InHarm, 1-35 HiHarm, 1-62 SubHarm |
| Voltage harmonic | THD, DC, 1-63 Harm, 0-62 InHarm, 1-35 HiHarm, 1-62 SubHarm, KF |
| Current harmonic | THD, DC, 1-62 Harm |
| Harmonic power | Ia, Ib, Ic, ΣPtotal, ΣQtotal, ΣStotal, 15 minutes |
| Fluctuation and flickering | PST, PLT, Fluct, Fluct Max |
| Unbal | V Pos, A pos, V neg, A neg, V zero, A zero, Unbal |
| Event log | Voltage swell, voltage sags, DIP, surge current, voltage and current distortion out of limit, odd harmonics containing rate out of limited, unbalanced voltage current out of limit, frequency out of limit, PST out of limit, PLT out of limit, long-term voltage interruption, voltage fluctuation deviation, voltage harmonics out of limit, 2-25st harmonics out of limit |
| P, Q, S name | Measurement type |
| Measurement types | P: Calculate by every 10 cycles S: Calculated by the effective value of voltage and current Q: Calculated by the apparent power, active power |
| Display | Table charts, trend chart |
| Measuring range | According to the range of the voltage and current |
| Resolution | 0.001W |
| Accuracy | ±0.5% |
| Urms | Measurement type |
| Mode | Calculated by the square root value of 10/12 cycle |
| Measuring circuit | 1P2W/ 2P3W /3P3W/ 3P4W |
| Basic frequency of the measuring circuit | 50Hz, 60Hz |
| Input channels | 4 channel voltage, 4 channel current(stanadard); max 24 channel voltage, 24 channel current; |
| Display mode | Effective current value of each channel |
| Range | 120V, 230V, 400V, 750V, Max 750V instantaneous voltage |
| Resolution | 0.001V |
| Accuracy | 0.1% RG |
| Arms | Measurement type |
| Mode | Calculated by the square root value of 10/12 cycle |
| Display mode | Effective current value of each channel |
| Range | 5A/1A 1.2 times rated current continuous, max 50A/1s |
| Resolution | 0.001A |
| Accuracy | 0.1% |
| Frequency | Measurement type |
| Measurement mode | Calculate by 10 cycles (50Hz) or (60Hz) |
| Display mode | Measurement by 10 cycles |
| Nominal frequency/resolution | 50.000Hz/0.001Hz or 60.000Hz/0.001Hz |
| Bandwidth measurement | 40Hz-70Hz |
| Accuracy | ±0.001Hz |
| Half-wave RMS current/voltage | Measurement type |
| Measurement mode | Calculate by every 2 cycles. Each cycle ,1/2 cycle made up of a waveform calculation |
| Measuring range/resolution | Voltage: 120V/0.01V, 230V/0.01V, 400V/0.01V, 750V/0.01V,Current: According to the current clamps |
| measurement accuracy | ±0.1% |
| Power factor | Measurement type |
| Measurement mode | The ratio of average power to apparent power |
| Display mode | Real-time data showed |
| Measurement range/resolution | -1.000-1.000/0.001 |
| Accuracy | ±0.1% |
| Vfund, Afund, Harmonic power | Measurement type |
| Measurement mode | Meet IEC61000-4-7,Analysis time window is ten cycles |
| Window points | 5120 points |
| Display mode | Form figure, trend charts, histograms |
| Number of measurement | 1-50 Times(25Hz-3150Hz) |
| Measurement accuracy | Vfund >1%: Error<1% Vfund <1%: Error<0.05% Rated Voltage Afund >3%: Error<1% Afund <3%: Error<0.05% Current range |
| InHarm Voltage, InHarm current | Measurement type |
| Measurement mode | Meet IEC61000-4-7, Analysis time window is ten cycles |
| Window points | 5120 points |
| Display mode | Form figure, trend charts, histograms |
| Numbers of measurement | 1-16 groups |
| Measurement accuracy | Vfund >1%: Error<1% Vfund <1%: Error<0.05% Rated Voltage Afund >3%: Error<1% Afund <3%: Error<0.05% Current range |
| HiHarm Voltage, HiHarm current | Measurement type |
| Measurement mode | Meet IEC61000-4-7, Analysis time window is ten cycles |
| Window points | 5120 points every 10 cycles |
| Display mode | Form figure, trend charts, histograms |
| Numbers of measurement | 1-35 groups/2100Hz-8900Hz |
| Measurement accuracy | Vfund >1%: Error<1% Vfund <1%: Error<0.05% rated voltage Afund >3%: Error<1% Afund <3%: Error<0.05% current range |
| Voltage SubHarm Current SubHarm | Measurement type |
| Measurement mode | Meet IEC61000-4-7, analysis time window is ten cycles |
| Window points | 5120 points every 10 cycles |
| Display mode | Form figure, trend charts, histograms |
| Numbers of measurement | 1-50 groups |
| Measurement accuracy | Vfund >1%: Error<1% Vfund <1%: Error<0.05% Rated Voltage Afund >3%: Error<1% Afund <3%: Error<0.05% Current range |
| Voltage/current Unbal (pos, neg) | Measurement type |
| Measurement mode | 3P3W or 3P4W, using three phase of fundamental wave components to calculate |
| Display mode | Form figure, trend charts, histograms |
| Measurement accuracy | Voltage unbal: ±0.2% Current unbal: ±0.5% |
| Voltage fluctuation | Measurement type |
| Measurement mode | Calculate by the quadratic mean of half wave. |
| Display mode | Form figure, trend charts |
| Measurement accuracy | ±1% |
| IEC Flickering | Measurement type |
| Measurement | P short term (Pst), P long term (Plt) |
| Measurement mode | According to IEC61000-4-15 Standard to calculate Pst (10 mins) Plt (2 hours) |
| Display mode | Form figure, trend charts |
| Measurement range | 0-20 |
| Measurement accuracy | ±5% |
| Surge current | Measurement type |
| Measurement mode | Half-wave RMS of current is higher than set value and sustain time is 10ms-1min |
| Display mode | Maximum of the surge current and surge current wave |
| Measurement accuracy | 0.1% |
| Voltage swell, Voltage sags, DIP | Measurement type |
| Measurement mode | Swell: When half-wave RMS of voltage is higher than set value and sustain time is 10ms-1min, judged as swell. Sags: When half-wave RMS of voltage is lower than set value and sustain time is 10ms-1min, judged as sags. DIP: half-wave RMS of voltage is higher than set value and sustain time is 10ms-1min, judged as DIP. |
| Display mode | Swell, sags, DIP wave sustain time, extent and so on. |
| Measurement accuracy | 0.1% |
| Machinery | |
| Size | 482.8mm x 277.5mm x 177mm |
| Key | 12PCS |
| Binary | binary input:5 ; binary output:5 |
| Comunication Port | USB 2PCS, 10/100M port 2PCS, 4G 1PC, RS485 2PCS |
| Weight | 5.5KG, 9.5KG(24U/24I) |
| Communcation | |
| Comunication Protocol | IEC61850, IEC-103, MODBUS |
| Power supply | |
| Voltage input | 85V-265V AC / 100-370V DC |
| Display | |
| Size | 112.8 x 84.6mm |
| Color | 260000 color |
| Resolutions | 640 x 480 |
| Brightness | Max 350 cd/m2 (Typ), brightness is adjustable |
| Contrast | 500:1 (Typ) |
| Visual angle | 70/70/50/70 (Typ.)(CR ≥10) ( Left/ Right/ UP/Down) |
| Store | |
| Type | TF card (inbuilt) |
| Size | 64G |
| Function | |
| Vrms & Irms waveforms(8 channel) | Yes |
| Power/Energy | Yes |
| Voltage/Current harmonics | Yes |
| Harmonics Power | Yes |
| Flicker | Yes |
| Unballance | Yes |
| Inrush current | Yes |
| Event log | Yes |
| Transient monitoring | Yes |
| Data format | PQDIF, Comtrade |
| GPS | Yes |
| 4G communication | Yes, Optional |
| Remote control | Yes |
| Networking management | Yes |
| PC software | Yes |
| Environment | |
| Working environment | -10°C to +45°C, humidity below 90rh% |
| Storing environment | -20°C to +50°C, humidity below 95rh% (non-condensing) |
| Standards | |
| Measurement method | IEC 61000-4-30 |
| Measurement performance | IEC 61000-4-30 A LVL, IEC 62586 |
| Flickering | IEC 61000-4-15 |
| Harmonic | IEC 61000-4-7, IEEE 519 |
| Power | IEEE 1459 |
| Power quality compliance | EN 50160 |
| Safety | |
| Standard | GB 4793.1-2007/IEC 61010-1:2001: "Measurement, control and laboratory electrical equipment safety requirements", first part: general requirements. Security level: CAT III 1000 V/ CAT IV 600 V. |
| MAX voltage of phase angle input | CAT III 1000V/CAT IV 600V |
