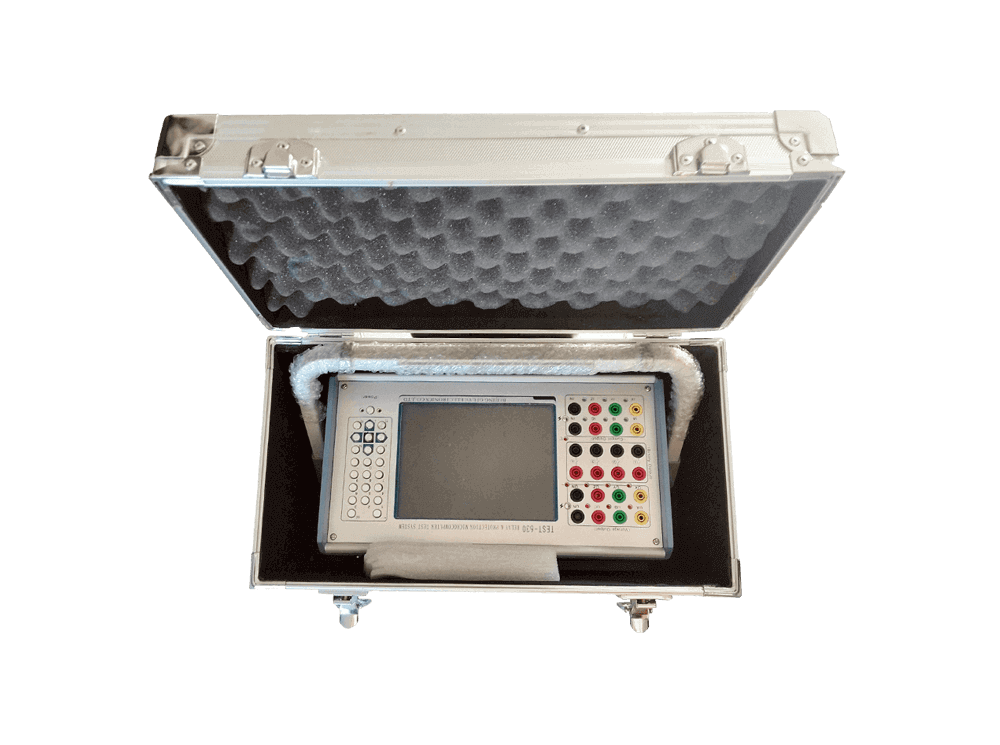

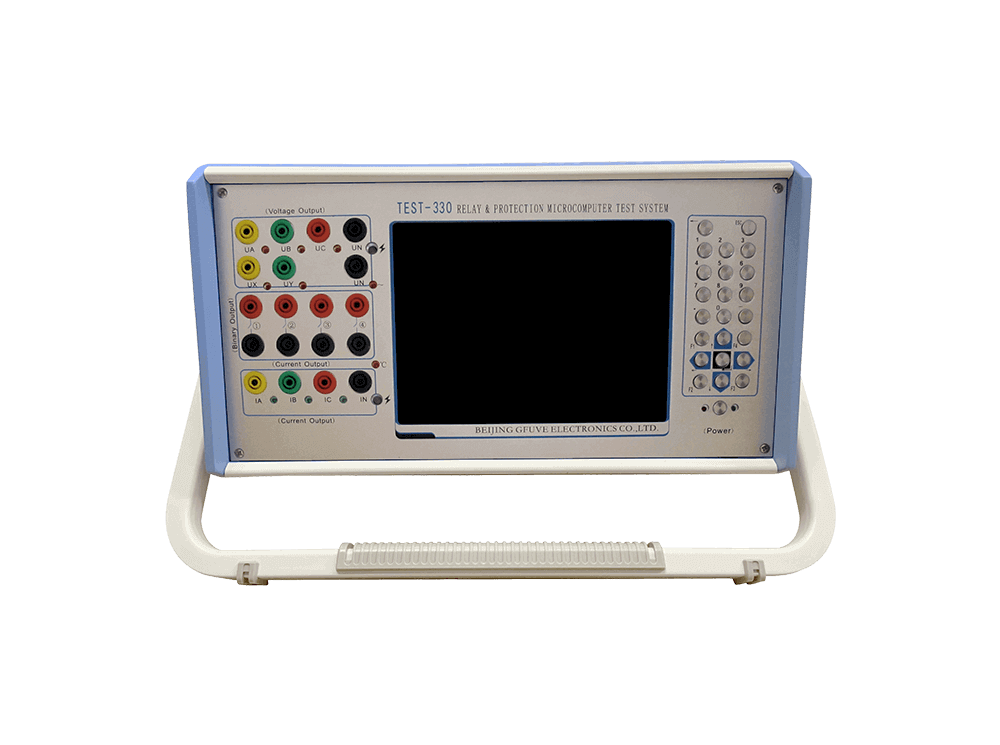

TEST-630 protection relay tester is a relay test equipment which offers all the characteristics and functions needed for protective relay testing, in a manual or automatic mode, designed for using on site or in the laboratory.
TEST-630 relay test kit is a the most advanced six-phase relay test set available for type and field testing of electromechanical and digital protections of any kinds of relay. It have six phase current output and six phase voltage output, with eight pairs of binary input and four pairs of binary output, wide frequency output from 0 to 1050Hz, high precision and high stability. It is a ideal test tool for substation commission, acceptance testing and maintenance testing in smart grid.
■ Power plant;
■ Universities;
■ Research institutes;
■ panel manufacturer;
■ Electrical laboratory;
■ Relay manufacturers;
■ Electrical testing center;
■ Electricity power bureau & power company;
■ Power engineering commissioning company;
■ Electrical Department of industrial and mining enterprises;
■ U/I test ■ DC test ■ I-T test ■ Special test ■ Harmonic test ■ State sequence ■ Fault Recurrence ■ Differential relay ■ Setting group test ■ Oscillation test ■ Hardware checkout ■ Metering instrument ■ Distance protection ■ Synchronization test ■ Power direction test ■ Frequency Protection ■ Low Voltage protection ■ Differential protection ■ Zero sequence protection ■ Impedance characteristics
■ With PC control software optional;
■ Auto test and manual test optional;
■ COMTRADE recording file fault recurrence wave;
■ Eight pairs of binary input, Four pairs of binary output;
■ Six-channel current output, Six-channel voltage output;
■ High precision and good unique linearity of power amplifier;
■ The test report can be easily derived from the USB port to print;
■ Integration in 8 inches TFT color LCD, light weight and easy to carry;
■ Panel embedded user-friendly buttons, and external keyboard and mouse;
■ High-precision DAC to 12 channel, simultaneously voltage and current output;
■ The newly designed software interface is fully consistent with the host machine operation;
■ Overcurrent, overvoltage, overload, short circuit and over-high temperature intelligent self-protection;
■ It can easily complete the protective device test of ABB, Siemens, Schneider, AREVA and other manufacturers;
■ Built-in high-speed and high-performance industrial computer embedded operating system, running stable and reliable, also can test;
■ Extensive testing capabilities: state sequence, IT features analog oscillation,setting group of test, differential protection test, harmonic test, distance protection test, fault playback, special tests etc.
| Electrical parameters | |
|---|---|
| Power voltage | AC220V±10% or AC110V±10%, 50/60Hz±10% |
| AC current output | |
| Phase current output (effective value) | 6×0-30A or 3 × 0-60A |
| Maximum power output | 520VA/phase |
| Maximum parallel current output (effective value) | 0-180A |
| Long-term allowable working value of phase current (effective value) | 0-10A |
| Rosolution | 1mA |
| Allowable working time of maximum current | >11s |
| Accuracy class | <±0.2% , Typital 0.05% |
| AC voltage output | |
| Phase voltage output (effective value) | 6 x 0-130V |
| Line voltage output (effective value) | 0-260V |
| Maximum power output | 70VA/phase |
| Rosolution | 1mV |
| Accuracy class | <±0.2% , Typital 0.05% |
| Power output | |
| Accuracy class | <±0.2% , Typital 0.05% |
| Frequency output | |
| Output frequency | 0-1050Hz |
| Frequency error | <±0.001Hz |
| Phase angle output | |
| Phase angle | -180.000°-0-180.000°, 0.000°-360.000° |
| Phase error | <±0.1°, Typital 0.05° |
| DC current output | |
| Output range | -10 to 10A or 6 x 0 to ±10A |
| Maximum power output | 200VA |
| Accuracy class | <±0.2% , Typital 0.05% |
| DC voltage output | |
| Output range | 0-300V or 6 x 0 to ±130V |
| Maximum output power | 130VA |
| Accuracy class | <±0.2% , Typital 0.05% |
| Binary input | |
| Idle contact | 1-20mA, 24V (DC) |
| Electric potential contact | 250V/0.5A (DC) |
| Binary input number | 8PCS |
| Binary output | |
| Idle contact | 250V/0.5A (DC) |
| Binary output number | 4PCS |
| Function | |
| Waveform distortion | <±0.3% (fundamental wave) |
| Time measurement | 0.1ms-999999.999s |
| Time error | <40µs |
| Superposed harmonic wave | 0-21times |
| Auxiliary DC voltage | 110V or 220V Optional |
| GPS | Optional |
| LCD | 8 inch color TFT LCD |
| Key | 24pcs key |
| Communication port | RS232, USB, VGA, 10/100M LAN |
| Standard | IEC 61010, IEC 61000, IEC 61326 |
| Mechanical parameters | |
| Dimensions (L×W×H) (mm) | 360x195x375 |
| Weight (kg) | 18.6 |
| Environmental conditions | |
| Operation temperature | 0°C to 50°C |
| Storage temperature | -25°C to 70°C |
| Humidity range | Relative humidity 5 ... 95 %, non-condensing |
| ANSI Standard Device | ||
|---|---|---|
| List of Device Numbers | Relay or Circuit Rreaker | FUNCTION |
| 2 | Time Delay Starting or Closing Relay | Yes |
| 21 | Distance Relay | Yes |
| 24 | Over-Excitation Relay | Yes |
| 25 | Synchronizing or Synchronism-Check Device | Yes |
| 27/27N | Undervoltage Relay | Yes |
| 30 | Annunciator Relay | Yes |
| 32 | Directional Power Relay | Yes |
| 36 | Polarity or Polarizing Voltage Devices | Yes |
| 37 | Undercurrent or Underpower Relay | Yes |
| 40 | Field Relay | Yes |
| 46 | Reverse-phase or Phase-Balance Current Relay | Yes |
| 47 | Phase-Sequence Voltage Relay | Yes |
| 50/50N | Instantaneous Overcurrent or Rate of Rise, Relay | Yes |
| 51/51N | AC Time Overcurrent Relay | Yes |
| 52 | AC Circuit Breaker | Yes |
| 53 | Exciter or DC Generator Relay | Yes |
| 55 | Power Factor Relay | Yes |
| 56 | Field Application Relay | Yes |
| 58 | Rectification Failure Relay | Yes |
| 59/59N | Overvoltage Relay | Yes |
| 60 | Voltage or Current Balance Relay | Yes |
| 61 | Machine Split Phase Current Balance | Yes |
| 62 | Time-Delay Stopping or Opening Relay | Yes |
| 64 | Ground (Earth) Detector Relay | Yes |
| 67/67N | AC Directional Overcurrent Relay | Yes |
| 68 | Blocking Relay | Yes |
| 74 | Alarm Relay | Yes |
| 76 | DC Overcurrent Relay | Yes |
| 78 | Phase-Angle Measuring or Out-of-Step Protective Relay | Yes |
| 79 | AC Reclosing Relay | Yes |
| 81/81U/O/R | Frequency Relay | Yes |
| 82 | DC Reclosing Relay | Yes |
| 85 | Carrier or Pilot-Wire Receiver Relay | Yes |
| 86 | Lockout Relay | Yes |
| 87 | Differential Protective Relay | Yes |
| 91 | Voltage Directional Relay | Yes |
| 92 | Voltage and Power Directional Relay | Yes |
| 94 | Tripping Relay | Yes |
