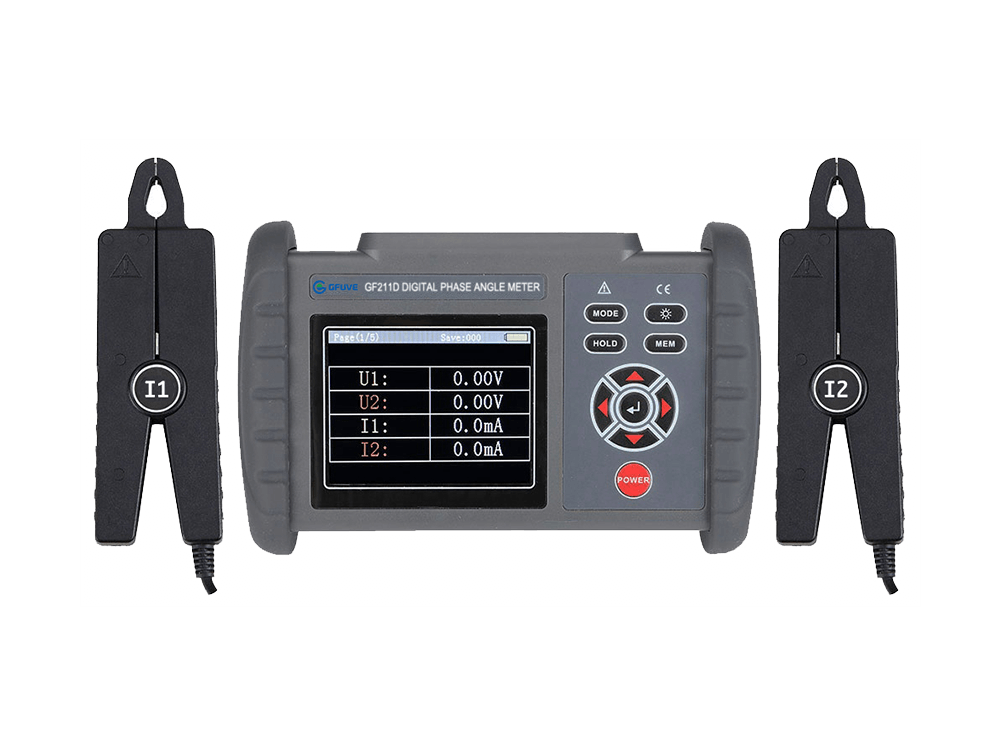

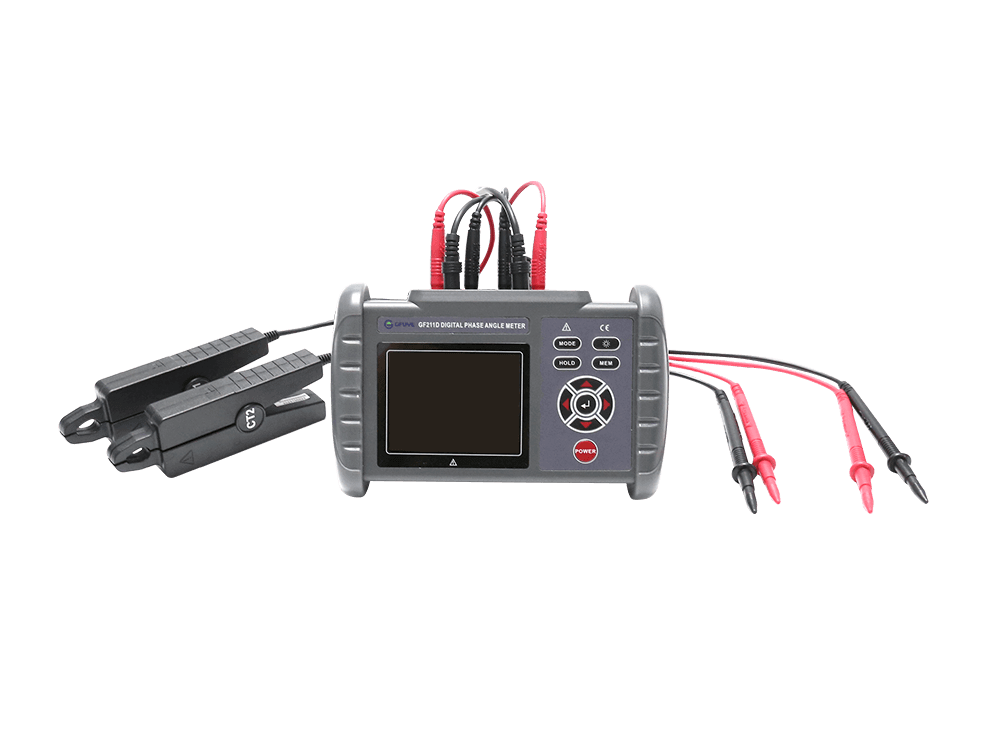

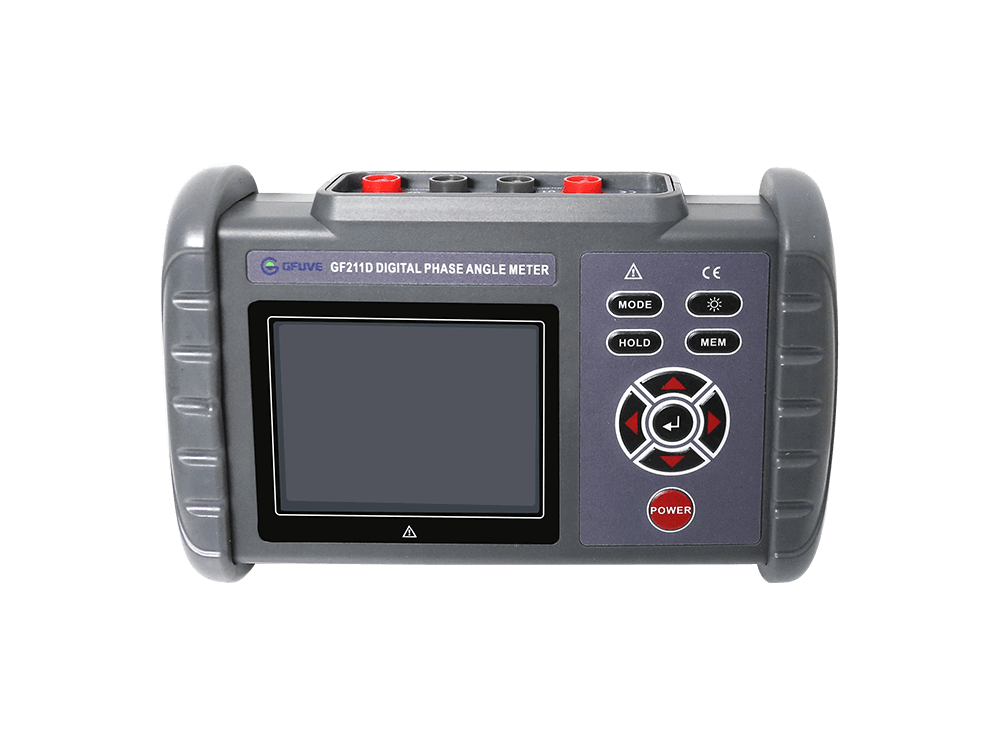

GF211D multi-function double clamp digital phase angle meter is a multi-functional portable instrument. It can measure not only alternating voltage, but also alternating current. Its important function is to measure phase angle between two voltages, between two current or between voltage and current. The current signal is obtained by the clamp current transformer without cutting off current wire. It can discern inductive circuit and capacitive circuit; directly read differential protection phase among every unit of CT; check connection of transformer; measure three way voltage phase sequence; check whether the meter connection is right or not; evaluate the running speed of electric kWh meter. It has high resolution of current, so can be used as a leakage current meter. It is an ideal choice for electric power bureau, factories, mine, petroleum-chemistry enterprises, metallurgy factories and so on.
■ Power plant;
■ Power transformer factory;
■ Electrical industrial field;
■ Metrological service center;
■ Power engineering commissioning company;
■ Electricity power bureau & power company;
■ Protection relay commission in substation;
■ Electrical Department of industrial and mining enterprises;
■ Operational simple;
■ Handheld designed;
■ As a power meter on site;
■ Recorder 500 sets of test data;
■ Large screen high backlight color display;
■ Measure two channel voltage phase sequence;
■ Check connection of transformer automatically;
■ Discern inductive circuit and capacitive circuit;
■ Checking whether the meter connection is right or not;
■ High resolution of current, used as a leakage current meter;
■ Directly read differential protection phase among every unit of CT;
■ Current signal is obtained by the clamp current transformer on line directly;
■ Measure phase angle between two channel U, between two channel I or between U & I;
■ Measure alternating voltage (U), alternating current (I), frequency (F), active power (P), reactive power (Q), power factor (PF) etc;
| Electrical parameters | |
|---|---|
| Accuracy class | 0.5% |
| Power supply | 9V Li-batteries |
| Scale | |
| Phase | 0-360.0° |
| AC Voltage | 0-600V; two channel U1 U2 |
| AC Current | 200mA / 2A / 20A; two channel I1 I2 |
| Frequency | 45-65Hz |
| Active power accuracy | 0.5%, resolution 0.01W |
| Power factor | -1 ~ 0 ~ 1, resolution 0.001 |
| Vector | Yes |
| LCD | 3.5 inch color LCD |
| Fundamental error (under standard operating environment) | |
| Temperature | 23°C±5°C |
| Moisture | <65% |
| Wave form | Sine wave Distortion ≤0.5% |
| Frequency | 50±2Hz, 60±2Hz |
| Wire position | Center of clamp |
| Phase measurement | Voltage: 100V±25V Current: 1A±0.2A |
| Phase accuracy | 0.5% FS |
| Voltage accuracy | |
| 200V | 0.5FS, Resolution 0.1V |
| 600V | 0.5FS, Resolution 1V |
| Current accuracy | |
| 20A | 0.5FS, Resolution 10mA |
| 2A | 0.5FS, Resolution 1mA |
| 200mA | 0.5FS, Resolution 0.1mA |
| Input impedance | |
| When measure voltage | 2MΩ |
| Input voltage impedance | >120KΩ when measure phase |
| Phase measurement | |
| Voltage range | 0-600V |
| Current range | 0.001-20A |
| Additional error | |
| Measure phase angle, the voltage and the current | Less than the fundamental error |
| Measure current | The error led by wires away from center of clamps is less than the fundamental error |
| Safety specification | |
| Resistance to voltage | The meter can resist 1000V (AC sine wave, 50Hz or 60 Hz) for 1 minute between the meter circuit and the meter case; Between input joint U1 and U2 can resist 600V (AC sine wave, 50Hz or 60 Hz) for 1 minute. |
| Insulation resistance | The resistance both between the meter circuit and the meter surface and between the terminals U1 and U2 is greater than 100MΩ. |
| Standards | IEC61010-1 CAT Ⅲ 600V, IEC61010-031, IEC61326, Pollution level 2 |
| Mechanical parameters | |
| Dimensions (L×W×H)(mm) | 187×191×51 |
| Weight (kg) | 0.45 |
| Environmental conditions | |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -20°C to +70°C |
| Humidity range | Relative humidity 5...95%, non-condensing |

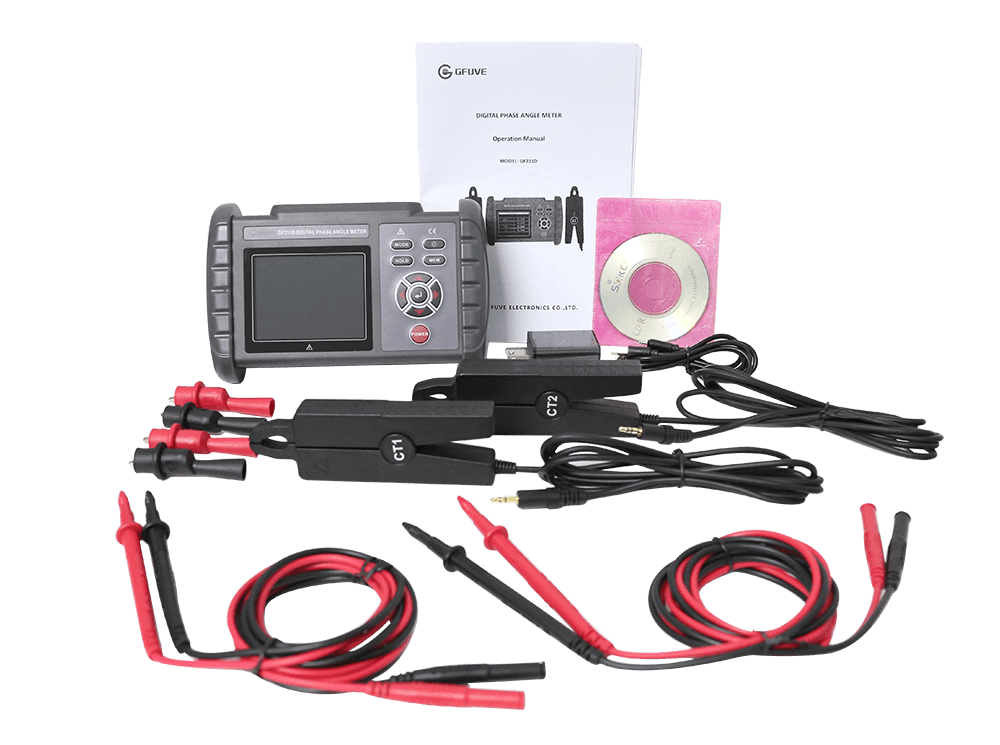

| Accessory | |
| GF211D Digital phase angle meter | 1 piece |
| 20A Clamp on ct | 2 pieces |
| Alligator clip | 2 piece |
| Voltage cable(1.5m) | 2 piece |
| User's manual | 1 piece |
| Test Certificate | 1 piece |

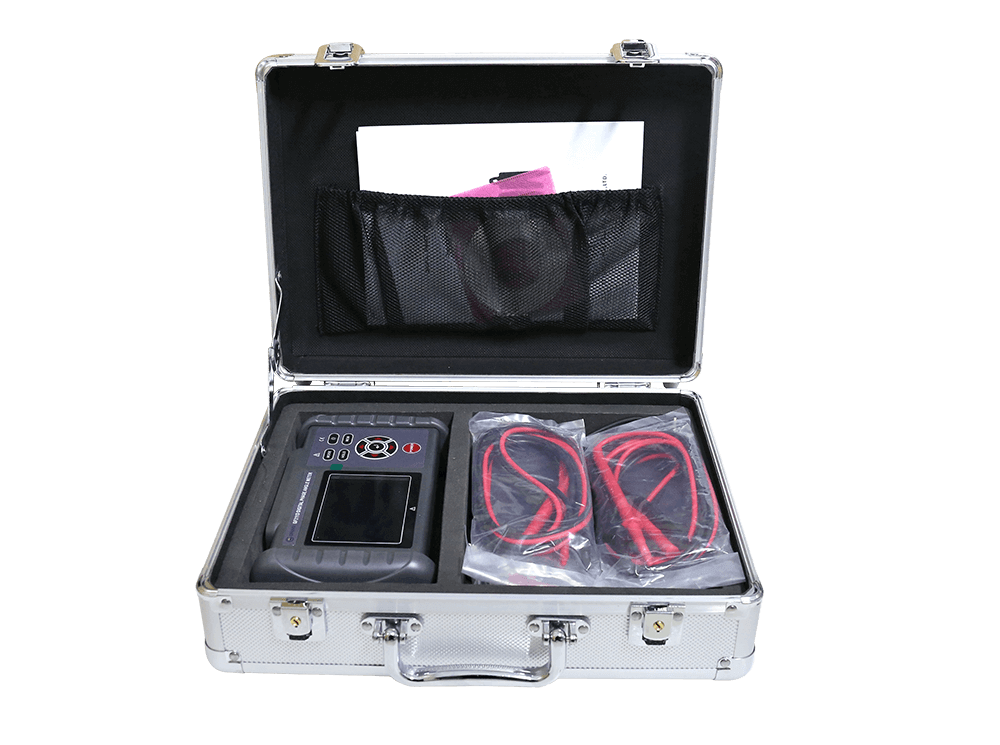

| Portable Box | 1 piece |
