FU-36 split core current transformer is low cost ac current sensor, measuring AC current from 5A to 600Amps passing through the center conductor. This model has four diameter version (10mm, 16mm, 24mm and 36mm), suite for all kinds of customers application. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation. This method permits a safer, easy and portable current measurement.
■ Load center;
■ Digital fault recorders;
■ Power quality analyzer meter;
■ Three phase balance control;
■ Smart grid application features;
■ Various power monitoring systems;
■ Energy meter current measurement;
■ In-factory display In-home display;
■ Power measurement device for PLC;
■ Sub-metering accurate measurement;
■ Inverters for solar & wind turbine systems;
■ HEMS (Home energy management system);
■ BEMS (Building energy management system);
■ Data loggers to analyze building & machinery performance;
■ High accuracy 0.5;
■ Faster installation;
■ Most cost-effective;
■ CE, UL/EN 61010-1 certified;
■ Small-size, compact size, light-weight;
■ Measurement range of 1mA to 600A AC;
■ Low phase shift for power measurement;
■ Over-voltage protection circuit is installed;
■ Safe and easy installation to distribution panels;
■ Output model: lead output(2m)-can be customized;
■ Isolated plastic case recognized according to UL94-V0;
■ Holding wire diameter: φ10mm, φ16mm, φ24mm, φ36mm;
■ Using high magnetic silicon steel, good linearity and high sensitivity;
| Technical parameters | |
|---|---|
| Standards | IEC/EN60044-1 & IEC61010-1 & IEC61869-2 & ANSI C57.13 |
| Ratio | 1000:1, 2000:1 or 2500:1, customized |
| Nominal input current (primary current) | 5A/10A/20 A/30A/40A/50A/60A/75A/80A/100A/150A/200A/250A/300A/400A/500A/600A |
| Overload withstand | 1.2 times rated current continuously |
| Accuracy | 0.2%, 0.5%, 1% |
| System voltage | 720V (0.72kV) |
| Output signal | 5mA-200mA, 1A, 5A AC optional 333mV AC or 100mV-2V optional |
| Frequency range | 40 Hz...500Hz |
| Dielectric strength | 2.5KV 50Hz/60Hz at 1 minute |
| Output | Standard 2 meter cable |
| Protection Level | 3.0V0-P |
| Installation category | CAT IV 600V AC IEC/EN 61010-1 |
| Internal structure | Snap-fit design |
| Installation and fixation method | Ribbon |
| Max. jaw opening | 10mm, 16mm, 24mm, 36mm |
| Material | Silicon steel sheets+enameled wire+ABS+94V-0 |
| Color | Black |
| Mechanical parameters | |
| Dimensions (W×D×H)(mm) | 26 × 43 × 27; 31 × 50 × 30; 43 ×73 × 39; 60 × 89 × 43 |
| Weight (kg) | 100, 120, 200, 350 |
| Operating conditions | |
| Operating temperature | -25°C to +55°C |
| Relative humidity | 0-85% non-condensing |
| Using environment | Indoor |
| Altitude | <3000 meters |
| Condition | No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current. |
| Type | FU-36 | ||
|---|---|---|---|
| Purpose | Measuring current transformer | ||
| Ratio | Accuracy class | ||
| I1/I2 | 0.2 | 0.5 | 1 |
| 5A/333mV | YES | YES | YES |
| 10A/333mV | YES | YES | YES |
| 20A/333mV | YES | YES | YES |
| 50A/333mV | YES | YES | YES |
| 60A/333mV | YES | YES | YES |
| 100A/333mV | YES | YES | YES |
| 150A/333mV | YES | YES | YES |
| 200A/333mV | YES | YES | YES |
| 300A/333mV | YES | YES | YES |
| 400A/333mV | YES | YES | YES |
| 500A/333mV | YES | YES | YES |
| 600A/333mV | YES | YES | YES |
| 5A/2.5mA | YES | YES | YES |
| 10A/5mA | YES | YES | YES |
| 20A/10mA | YES | YES | YES |
| 50A/25mA | YES | YES | YES |
| 60A/30mA | YES | YES | YES |
| 100A/50mA | YES | YES | YES |
| 150A/75mA | YES | YES | YES |
| 200A/100mA | YES | YES | YES |
| 50A/50mA | YES | YES | YES |
| 60A/60mA | YES | YES | YES |
| 100A/100mA | YES | YES | YES |
| 150A/150mA | YES | YES | YES |
| 200A/200mA | YES | YES | YES |
| 100A/100mV | YES | YES | YES |
| 100A/1V | YES | YES | YES |
| 100A/2V | YES | YES | YES |
| 100A/5V | YES | YES | YES |
| 100A/10V | YES | YES | YES |
| 200A/1V | YES | YES | YES |
| 200A/2V | YES | YES | YES |
| 200A/5V | YES | YES | YES |
| 200A/10V | YES | YES | YES |
| 100A/1A | YES | YES | YES |
| 200A/1A | YES | YES | YES |
| 300A/1A | YES | YES | YES |
| 400A/1A | YES | YES | YES |
| 500A/1A | YES | YES | YES |
| 600A/1A | YES | YES | YES |
| 200A/5A | YES | YES | YES |
| 300A/5A | YES | YES | YES |
| 400A/5A | YES | YES | YES |
| 500A/5A | YES | YES | YES |
| 600A/5A | YES | YES | YES |
| Model | Primary rated current | Rated load | Secondary output | Aperture (mm) | Description (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| FU-16 | 5-200A | ≤10Ohm | 333mV, 1V, 5V, 100mA | φ16 | 38 x 55 x 18 | 0.06 |
| FU-32 | 100-600A | ≤10VA | 333mV, 1V, 5V, 1A, 5A | φ32 | 110 x 130 x 41 | 0.7 |
| FU-36 | 100-600A | ≤2.5VA | 333mV, 1V, 5V, 1A, 5A | φ10, φ16, φ24, φ36 | 26 × 43 × 27 31 × 50 × 30 43 ×73 × 39 60 × 89 × 43 |
0.1, 0.12, 0.2, 0.35 |
| FU-80 | 100-1200A | ≤5VA | 333mV, 1V, 5V, 1A, 5A | φ30, φ55, φ80 | 88 x 129 x 28 108 x 155 x 28 138 x 193 x 28 |
0.4, 0.55, 0.6 |
| FU-100 | 300-3000A | ≤10VA | 333mV, 1V, 5V, 1A, 5A | φ100 | 170 x 184.5 x 41 | 1 |
| FU120 | 200-4000A | ≤10VA | 333mV, 1V, 5V, 1A, 5A | 120 x 130, 120 x 30 | 166 x 110 x 49 166 x 208 x 49 |
1.2, 1.7 |

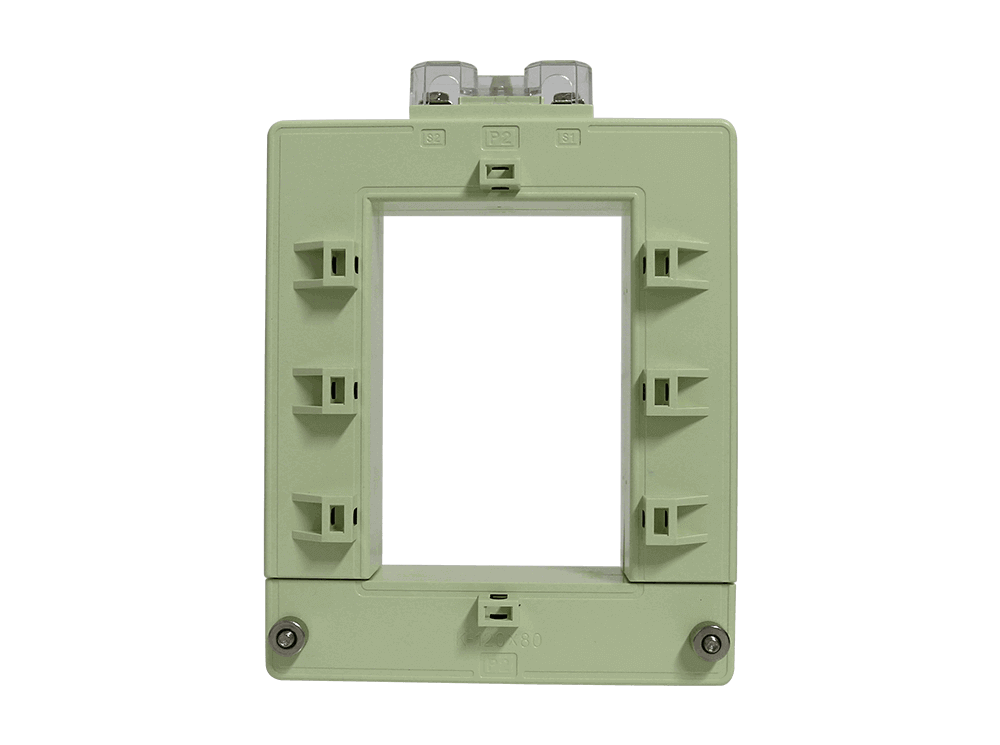

| FU160 | 500-5000A | ≤20VA | 1A,5A | 160 x 80 | 144 x 227 x 54 | 2.8 |
